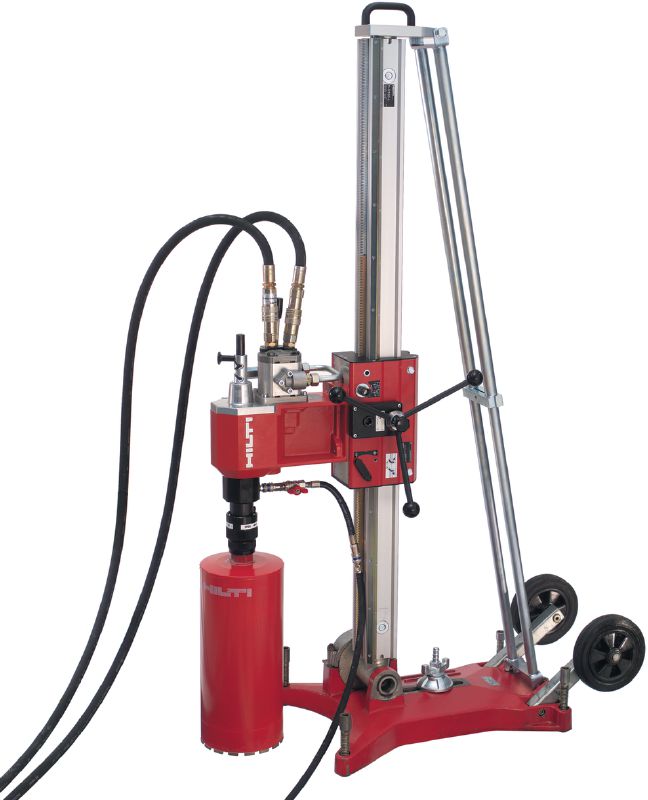

Heavy-duty hydraulic diamond drilling system for rig-based coring of extreme applications

  • Diameter range: 52 - 750 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Technical Data

Diameter range
52 - 750 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
4
Weight according to EPTA-Procedure 01/2003 without battery
30 kg
Dimensions (LxWxH)
355 x 215 x 520 mm
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
1.5 m/s²

Documents

Features & Applications

Features

  • Quickly assembled modular system
  • High power and robustness for heavy applications
  • Compatible with Hilti hydraulic power units

Applications

  • Large penetrations
  • Deep-hole drilling
  • Underwater drilling

For approval or certificate information, please see individual items.
