MC-AH-90

Name: MC-AH-90
Brand: Hilti
SKU: r1229101

New product

Item #r1229101

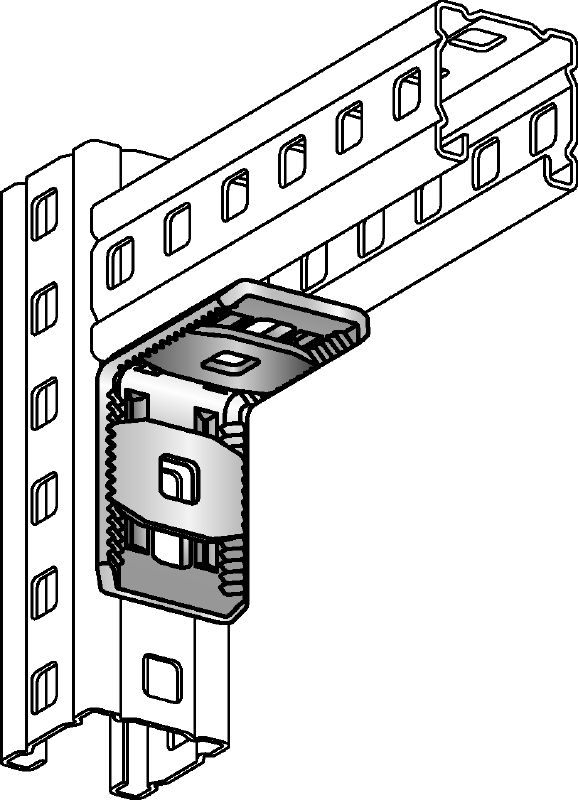

Galvanised, adjustable angle connector for the 90-degree attachment of MC-3D channels to one another indoors

Material composition: Structural steel with minimum yield strength of 235 N/mm2
Surface finish: Electrogalvanized
Material thickness: 4 mm

More technical data

Customers also searched for hot dipped galvanised connectors, installation channel, HDG metal connectors, metal connectors or 90 degree connector

Features

High application flexibility
Easy height adjustment along full channel length and on all channel faces
High shear load capacity

Applications

Connecting any two MC channels at 90 degrees

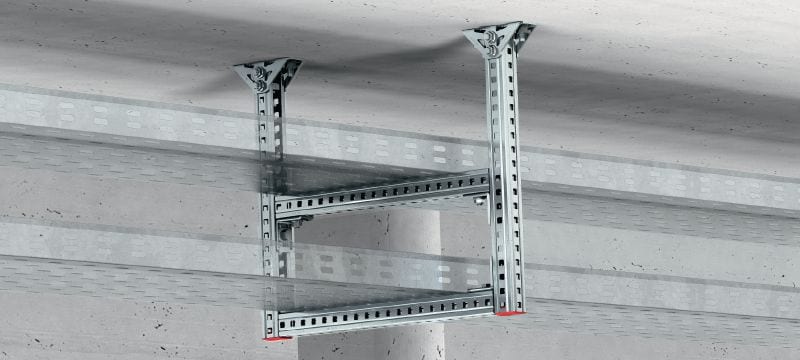

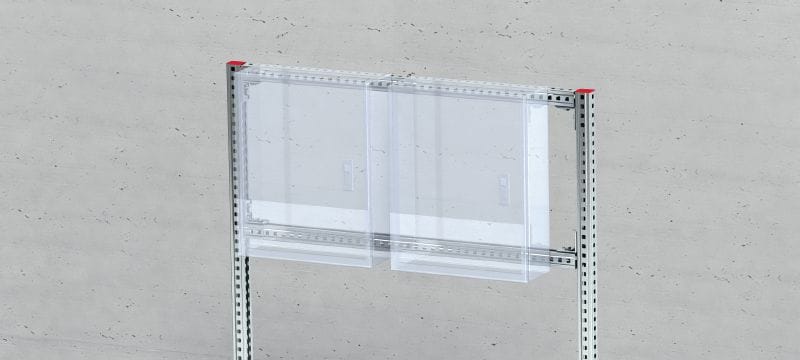

Assembly of two and three-dimensional modular system structures

Product Information

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Angle MC-AH-90

- PDF Instruction for use MC-AH-90, Italian, German, Russia, Swedish, Turkish, Ukrainian, French, Arabic, Portuguese, Sardinian, Spanish, Malay, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 1.6 MB ]

MC-AH-90

Galvanised, adjustable angle connector for the 90-degree attachment of MC-3D channels to one another indoors
