MC-3D-41
I.-channel MC-3D-41 6m #2063294

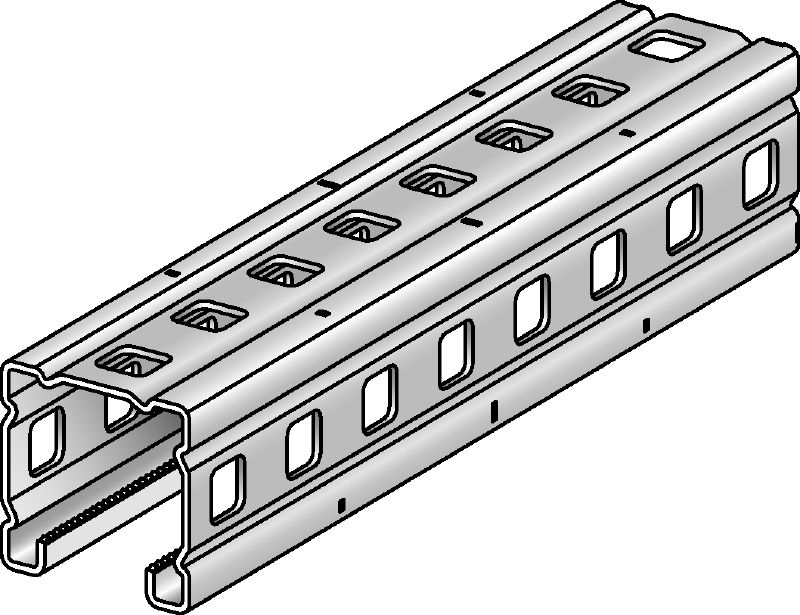

Galvanised installation channel for 2D and 3D indoor applications
- Height: 41 mm
- Material thickness: 1.6 mm
- Material composition: Structural steel with minimum yield strength of 280 N/mm2
Customers also searched for cable tray supports, floor supports, electrical supports, 3d channel system or installation channel.
Choose options
Length
- 6 m
Pack size
- 6 m
Quantity
Packs
Total m
6
Discounted net
Technical Data
Height
41 mm
Material thickness
1.6 mm
Material composition
Structural steel with minimum yield strength of 280 N/mm2
Surface finish
Sendzimir galvanized
Weight
10278 g
Features & Applications
Features
- Can be connected on any channel face
- High flexibility – supports multiple fastening types and directions
- Easier adjustment due to serrated open face
- Dimension marks to simplify cutting and installation
Applications

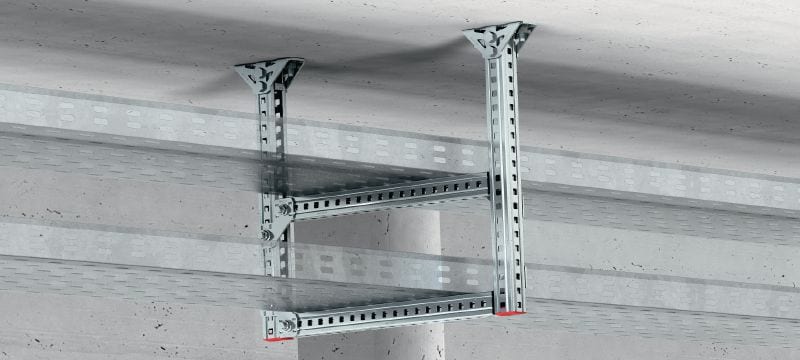

- Cable tray support structures

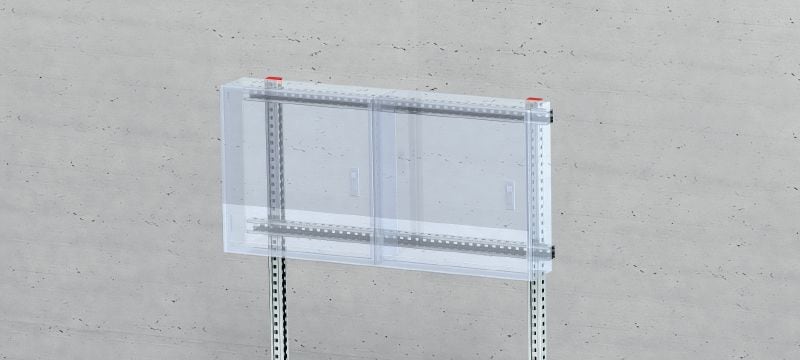

- Instrumentation support structures
- Integrated floor support structures
- Secondary steel support structures
