MM-RI

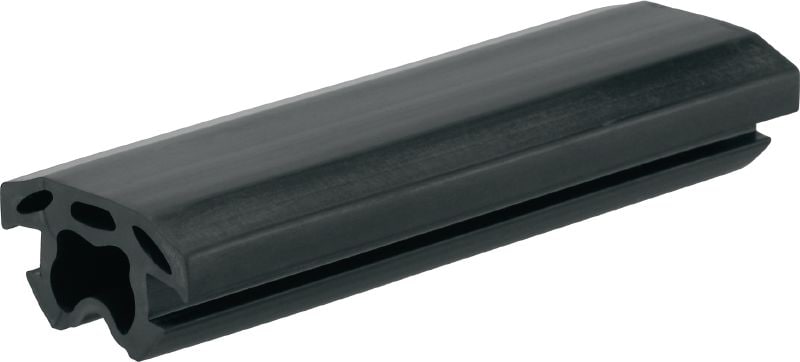

Rubber inlay
- Material composition: EPDM
- Surface finish: n/a
- Temperature resistance: -40 - 110 °C
Technical Data
Material composition
EPDM
Surface finish
n/a
Temperature resistance
-40 - 110 °C
Noise reduction
13 dB (A)
Resistance
UV light, diluted acids and alkalis, alcohol solutions, water and water-based solutions
Ageing resistance
Tested as per DIN 53508 and 53509
Hardness insulation material
55° ±5° Shore A
Features & Applications
Features

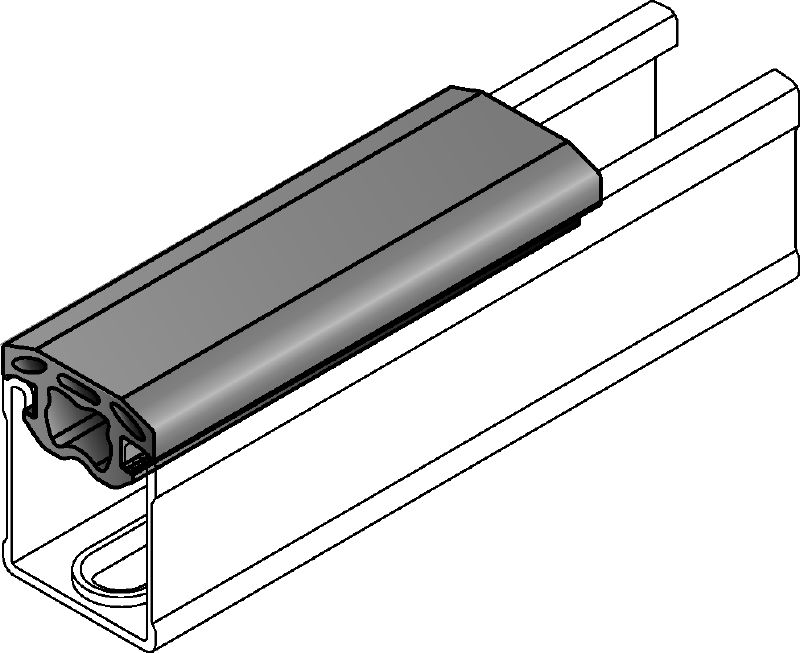

- Suitable for all three types of MM channel profiles and M8/M10 threaded rods
- Prevents direct contact between the air duct and the channel
- Large contact area between the channel insulation profile and the air duct avoids transmission of vibration and structure-borne sound
- Quick and easy installation in the channel
- Suitable for all MM installation channel systems and M8/M10 threaded rods
Applications

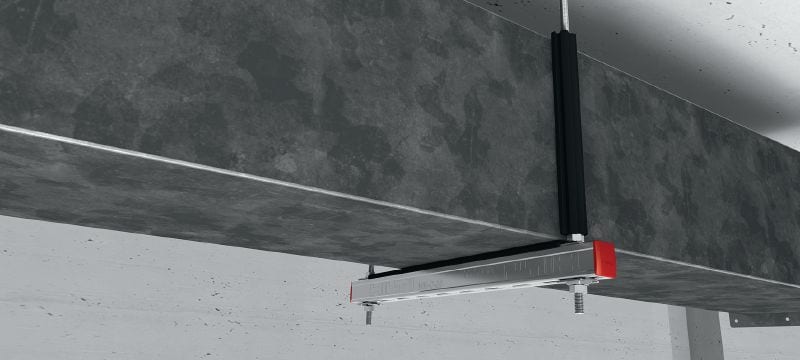

- Acoustic insulation of MM channel air duct supports
- Insulating layer between M8 and M10 threaded rods and the ventilation duct
- Acoustic insulation element for use with the MM channel system in the installation of ventilation systems
- For separating the items installed from the channel
For approval or certificate information, please see individual items.
