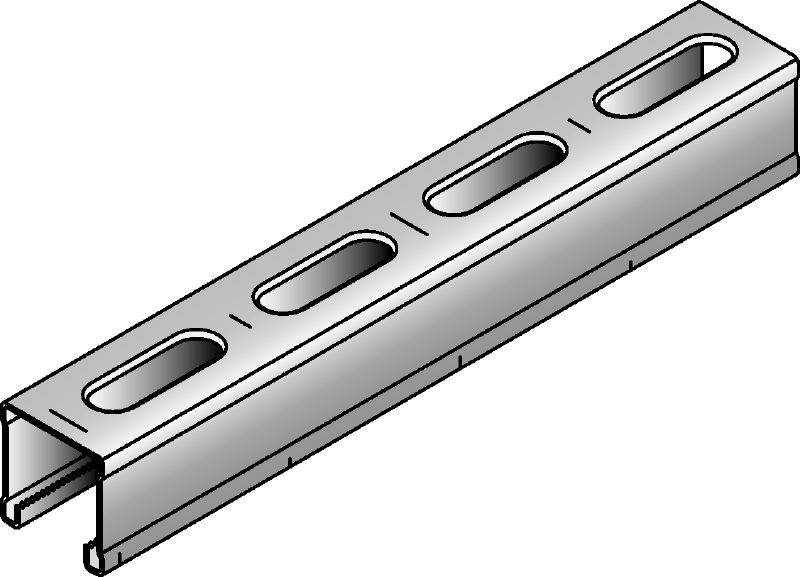

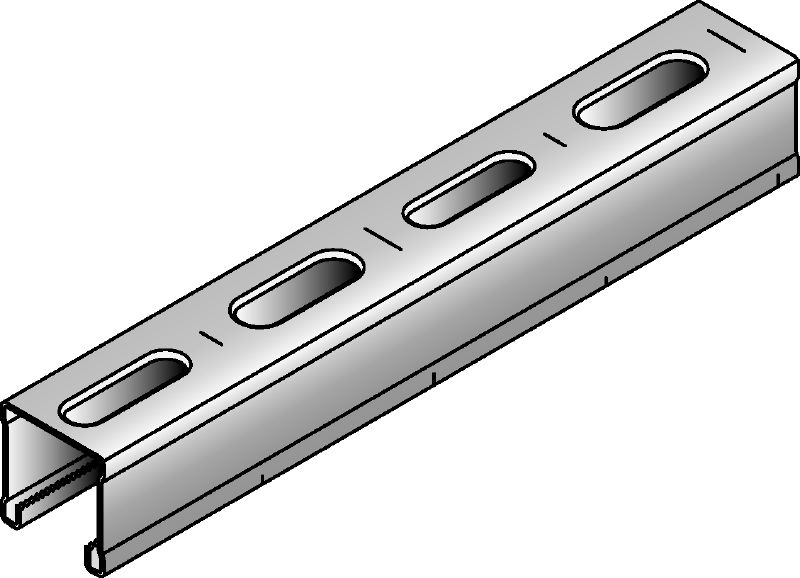

MM-C-30 C-Channel profile

I.-channel MM-C-30 3m #2038062

Galvanised C-Channel profile for light-duty applications

Height: 30 mm
Material thickness: 1 mm
Material composition: S250GD - DIN EN 10346

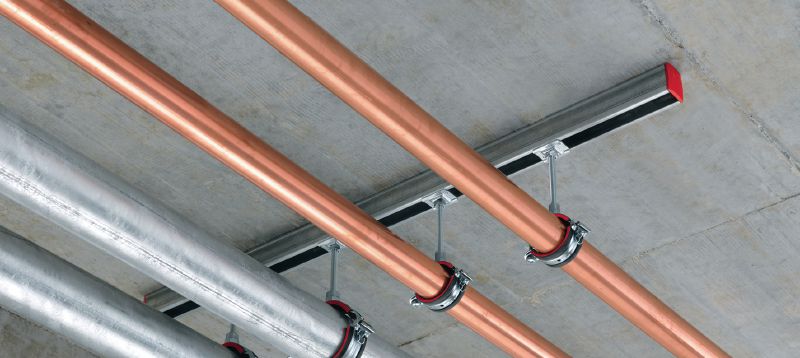

Customers also searched for pipe supports, cable tray supports, ventilation duct supports, fastening supports or installation channel.

Choose options

Length

Pack size

Product options

Quantity

Packs

Total m

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

KWD 29.835

KWD 9.950 / 1 m

Technical Data

Height

30 mm

Material thickness

1 mm

Material composition

S250GD - DIN EN 10346

Surface finish

Indoor Coated - Pre-galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Weight

2418 g

Documents

Features & Applications

Features

C-profile with serrated edges – for optimised pull-out and shear capacity
Optimised back slots – for quicker, more flexible anchor fastening
Pre-marked dimensions – for rapid installation, assembly and cutting
Modular installation channel system – for versatility and flexibility
The Hilti MM system meets many requirements set by the leading green building standards (LEED®, DGNB®, BREEAM®, etc.)
