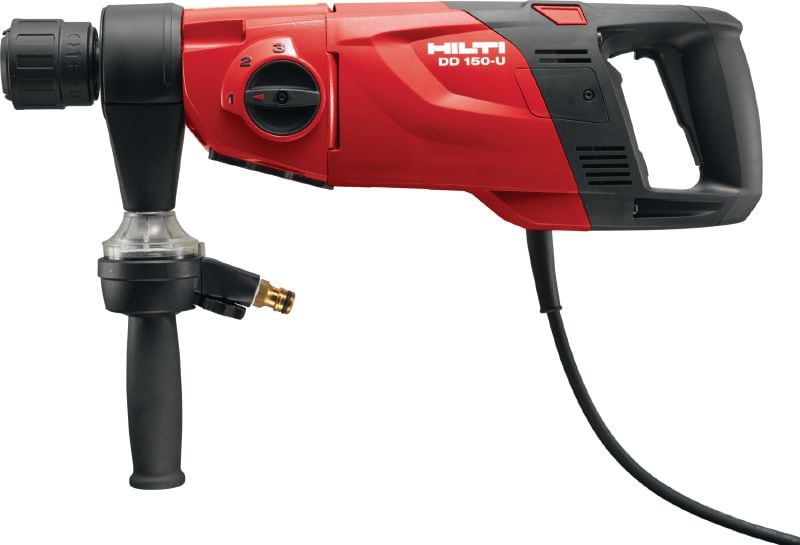

DD 150-U Core drill

Diamond coring tool DD 150-U 220-230V #2204573

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L118373 (202076)
L118384 (202085)
L118384_v1 (202082)
L120021_cropped (203137)
L119993_cropped (203107)
L119979_cropped (203119)
L119919_cropped (203100)
L120030_cropped (203121)
L119987_cropped (203101)
L119901_cropped (203096)
L119973_cropped (203133)
L120023_cropped (203125)

Versatile diamond coring machine for handheld or rig-based coring from 8-162 mm (5/16 - 6-3/8") in diameter

  • Diameter range: 8 - 162 mm
  • Rated input voltage: 220-240V
  • Base material: Concrete, Reinforced concrete, Asphalt, Masonry

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
KWD 1,908.000
KWD 1,908.000
/
1 each

Technical Data

Diameter range
8 - 162 mm
Rated input voltage
220-240V
Base material
Concrete, Reinforced concrete, Asphalt, Masonry
Operation mode

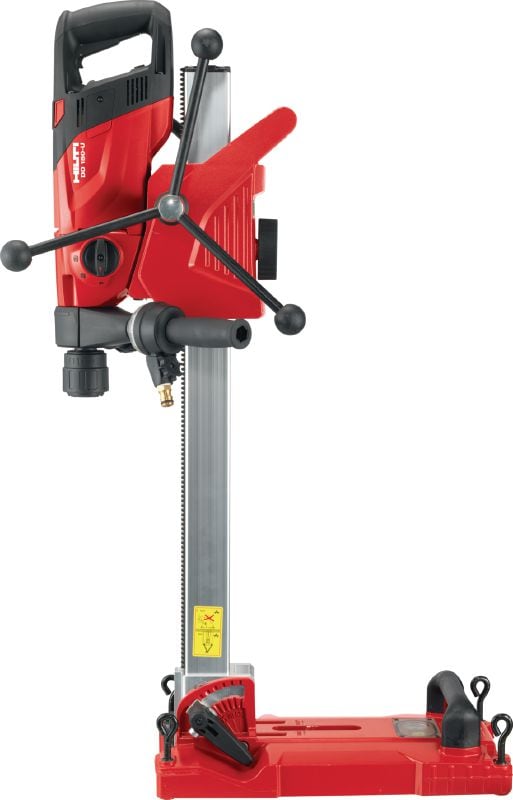

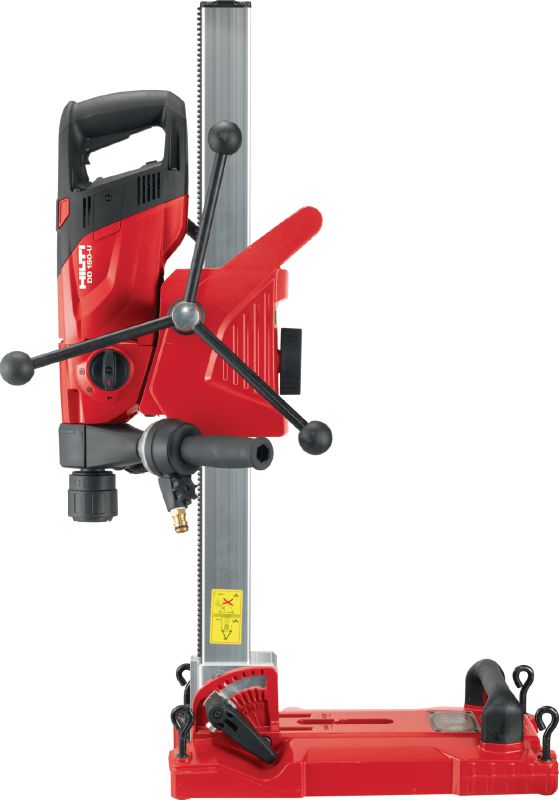

Hand-held and rig-mounted drilling system
Rated input power
2200 W
Number of gears
3
No load RPM
gear 1: 840 rpm; gear 2: 1640 rpm; gear 3: 3070 rpm
Weight according to EPTA-Procedure 01/2003 without battery
8.35 kg
Weight of complete system
22 kg
Dimensions (LxWxH)
516 x 129 x 159 mm
A-weighted emission sound pressure level
101 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
3.9 m/s²
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DD 150-U (03), Arabic, Bulgarian, cn, Greek, English, Croatian, Italian, Japanese, Kazakh, Korean, Romanian, Russian, Slovenian, Turkish, Ukrainian, Chinese, Serbian [ 16.7 MB ]

Features & Applications

Features

  • High motor performance and sturdy three-speed gearing for optimum drilling speed
  • 360-degree adjustable side handle with integrated dust and water management functions
  • Real-time feedback display with digital spirit level, gear selector, power control function, advanced usage statistics and easy-to-understand service messages
  • Bluetooth® connectivity to WMS 100 water management system
  • Real-time usage statistics analysis via the Hilti Connect app

Applications

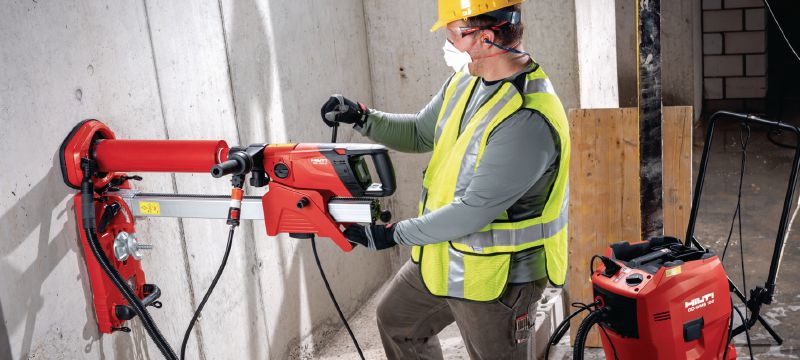

  • Rig-based wet drilling in concrete for pipe penetrations, cable trays and ducts and for the installation of railings and barriers

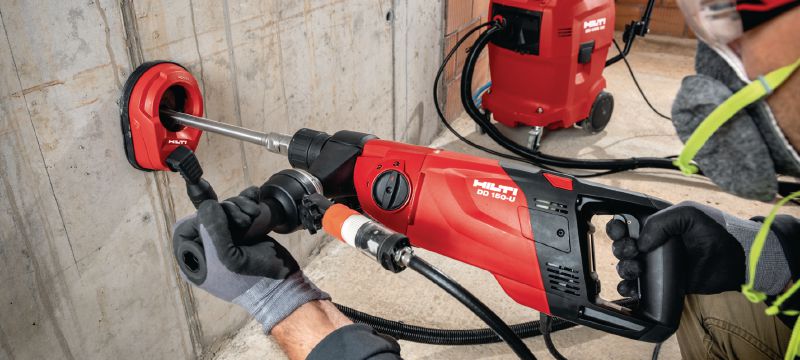

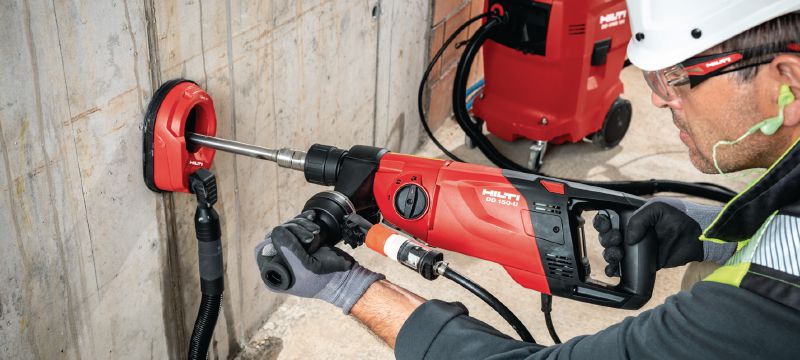

  • Hand-guided wet drilling for setting large-diameter anchors and reinforcing bars

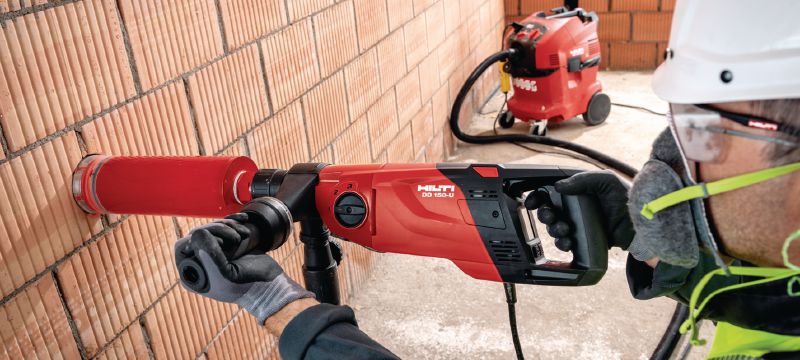

  • Hand-guided dry drilling in masonry for pipe penetrations in plumbing, heating and air conditioning installations and for chimney and cooker installation

Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
