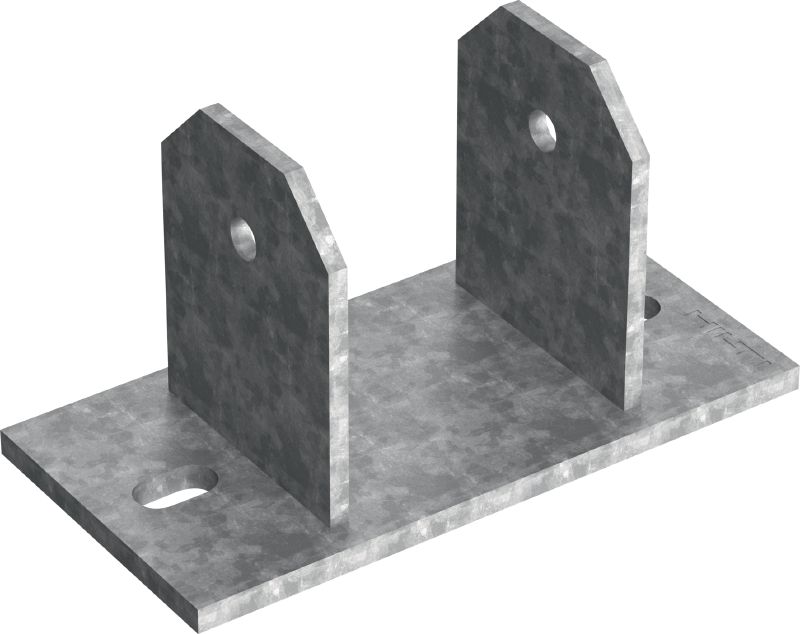

MIC-CU-MA connector

Name: MIC-CU-MA connector
Brand: Hilti
SKU: r6194

New product

Item #r6194

MI-System connector for diagonal bracing

Weight: 2.21 kg
Material composition: Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461

More technical data

Features

Anchor holes for fastening to concrete
Elongated holes – to simplify exact positioning

Applications

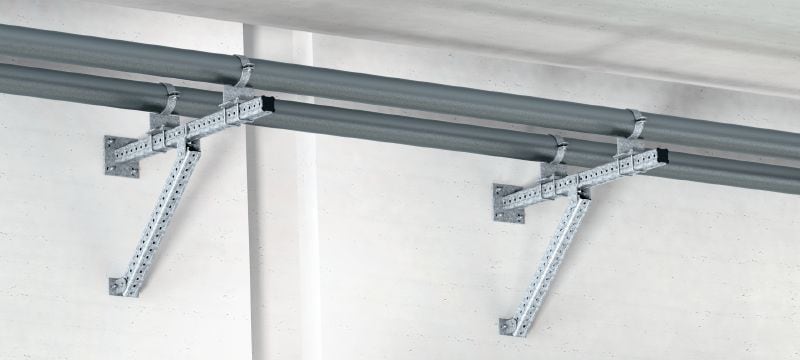

Connecting girders directly to concrete at angles between 0° and 180°
Fastening to concrete walls

Product Information

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Connector MIC-CU-MA concrete

- PDF Instruction for use MIC-U-MA,MIC-SA/SB/SC/CU-MA, Italian, German, Russia, Swedish, Turkish, Ukrainian, French, Arabic, Portuguese, Sardinian, Spanish, Malay, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 863.2 kB ]
