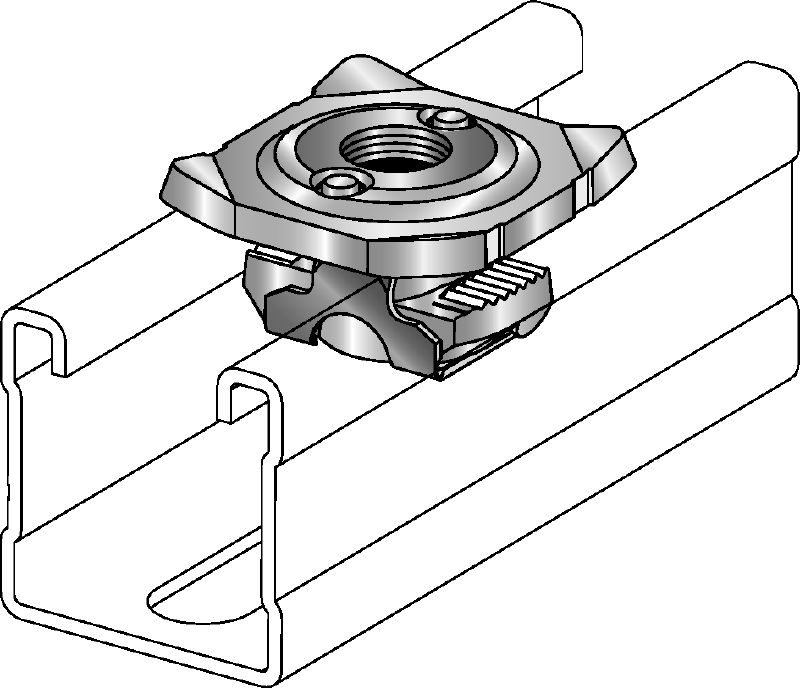

MQA pipe clamp saddle
Pipe ring saddle MQA-F5/8" #377887
Galvanised pipe clamp saddle for connecting threaded components (imperial) to MQ strut channels
- Product class: Premium
- Tightening torque: 40 Nm
- Thread connection - M: 5/8 in
premium
Customers also searched for pipe supports, installing pipes, pipe rings, pipe clamps or connectors.
Choose options
Thread connection - M
- 5/8 in
Pack size
- 50 pc
Quantity
Packs
Total Pieces
50
Discounted net
Technical Data
Product class
Premium
Tightening torque
40 Nm
Thread connection - M
5/8 in
Material composition
Nut: C4C - EN 10263-2, Plate: S235JR - EN 10025-2, Plastic: PBT
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
84 g
Documents
Features & Applications
Features
- Quick connection of threaded components to the open side of MQ strut channels
- Easy installation and positioning within MQ strut channel openings
- Single, compact part – for higher productivity and flexibility
Applications
- Fastening pipes and air ducts
- Fastening cable trays and cable baskets
