MC-CB OC-A

Name: MC-CB OC-A
Brand: Hilti
SKU: r1230606

New product

Item #r1230606

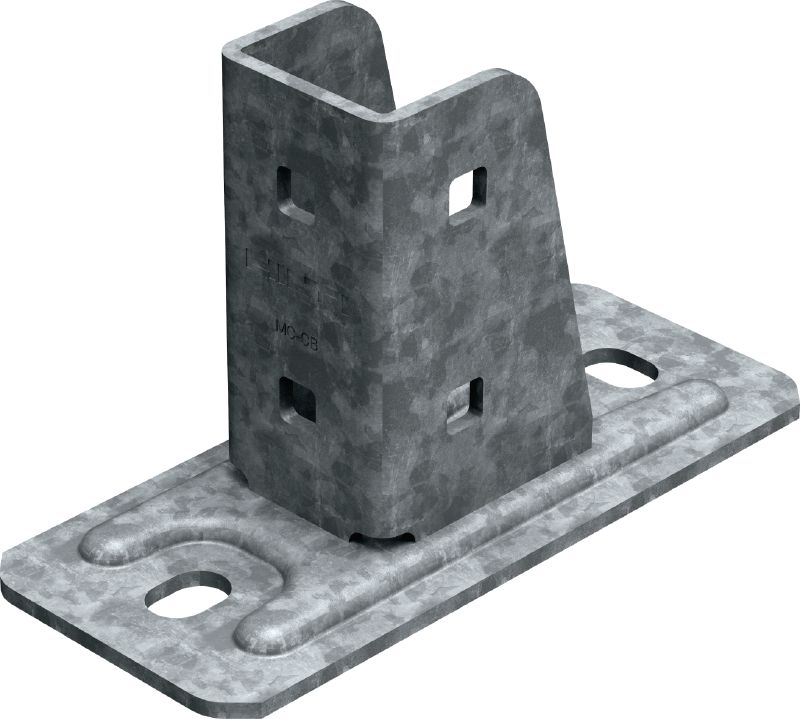

Hot-dip galvanised (HDG) connector for fastening MC installation channels perpendicularly to concrete substructures with higher load requirements outdoors

Material composition: Structural steel with minimum yield strength of 235 N/mm2
Surface finish: Hot-dip galvanized, 56 µm - ASTM A153
Weight: 925 g

More technical data

Customers also searched for connecting channel to concrete, installation channel, HDG brackets, fastening channel to floors or HDG rail supports

Features

Various, easy installation options
Simple height adjustment
High load capacity
Compatible with any MC channel

Applications

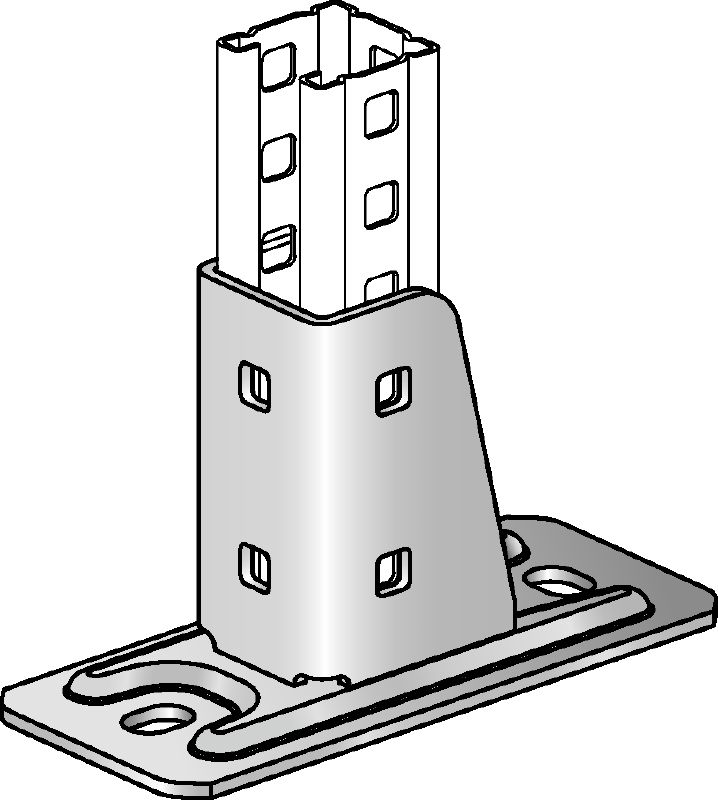

Connecting any MC channels to concrete

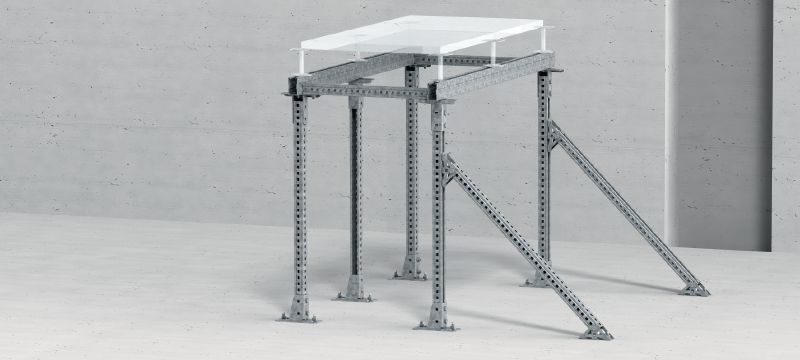

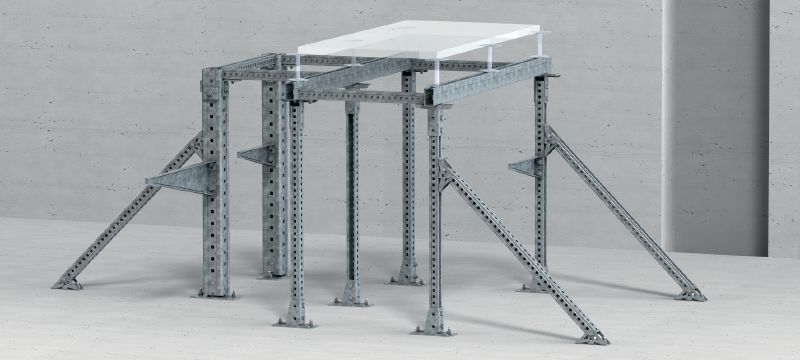

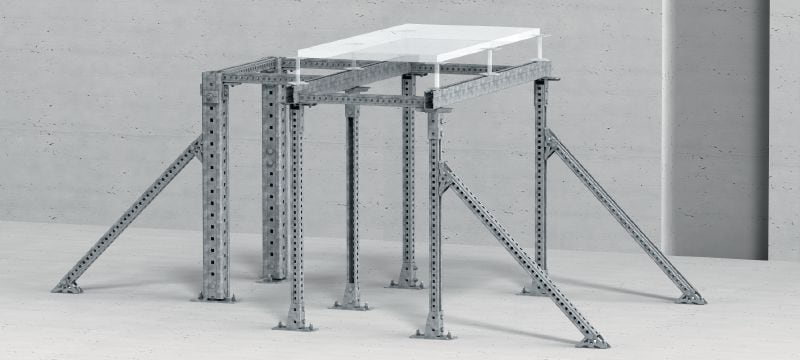

Fastening to floors, ceilings or walls

Product Information

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Rail support MC-CB OC-A

- PDF Instruction for use MC-CB, Italian, German, Russia, Swedish, Turkish, Ukrainian, French, Arabic, Portuguese, Sardinian, Spanish, Malay, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 965.3 kB ]

MC-CB OC-A

Hot-dip galvanised (HDG) connector for fastening MC installation channels perpendicularly to concrete substructures with higher load requirements outdoors
