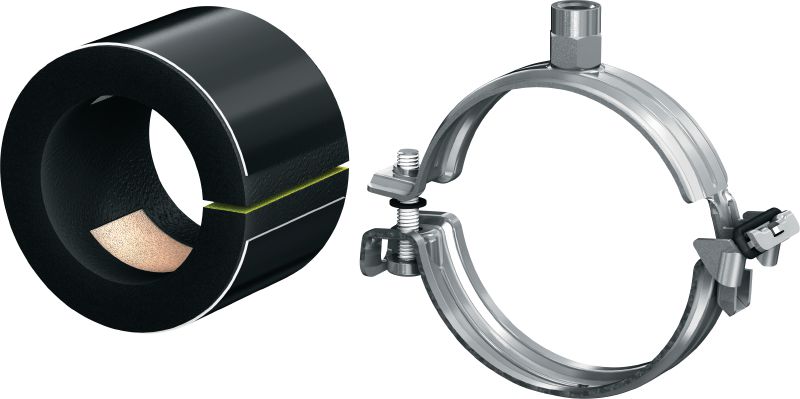

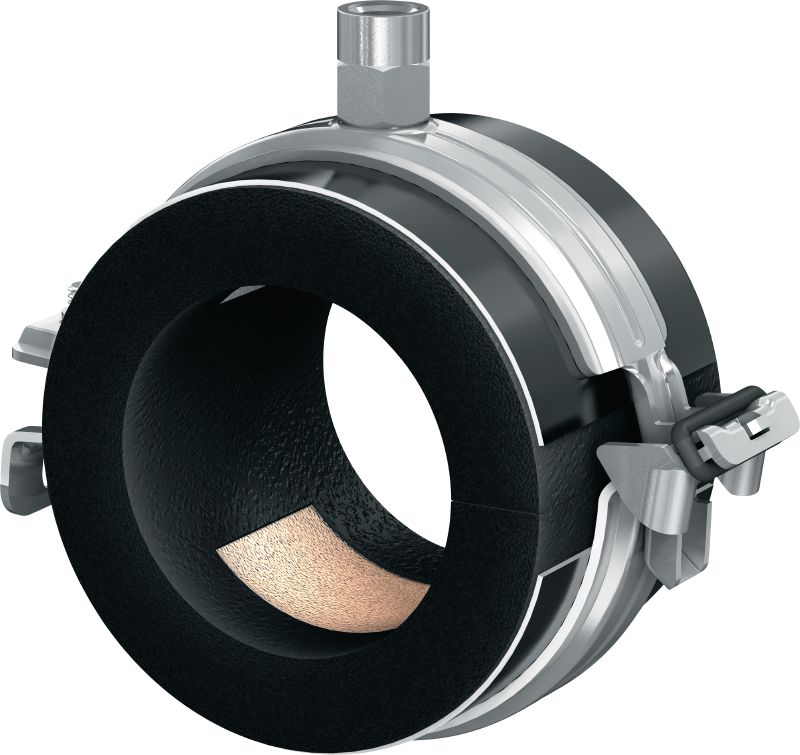

MIP-H Refrigeration pipe clamp (thin insulated)
Refrig. pipe ring MIP-H/15-18 #314127
Galvanised pipe clamp for maximum productivity in refrigeration applications with an insulation thickness of 13-16 mm
- Clamping range - D: 15 - 18 mm
- Nominal pipe size (imperial): 3/8 in
- Thread connection - M: M8, M10
ultimate
Choose options
Clamping range - D
- 15 - 18 mm
Thread connection - M
- M8, M10
Nominal pipe size (imperial)
- 3/8 in
Pack size
- 16 pc
Quantity
Packs
Total Pieces
16
Discounted net
Technical Data
Clamping range - D
15 - 18 mm
Nominal pipe size (imperial)
3/8 in
Thread connection - M
M8, M10
Maximum load - F
50 N
Approvals
Fire class B2
Noise reduction
19 dB (A)
Temperature resistance
-40 - 105 °C
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
M6
Tightening torque
2 Nm
Cross section thickness - s
13 mm
Cross section width - b
45 mm
Width - B
80 mm
Product class
Ultimate
Distance centre pipe to top - h
45 mm
Max. extension from centre - b1
41 mm
Diffusion resistance
≥ 10000
Thermal conductivity (λ approx. value)
0.036 W/mK
Approx. density
145 kg/m³
Documents
Features & Applications
Features
- Designed for standard insulation thicknesses (insulation material: elastomeric caoutchouc)
- Continuous joint between refrigeration pipe clamp and pipe insulating material (elastomeric caoutchouc)
- Thermally decoupled system with integrated vapour (diffusion) barrier to help prevent thermal short circuits
- Assembly of the insulation core with a handle thanks to the self-adhesive closure
- Three-stage quick closure with only one screw up to 140 mm; from 159 mm and larger two-screw closure
Applications

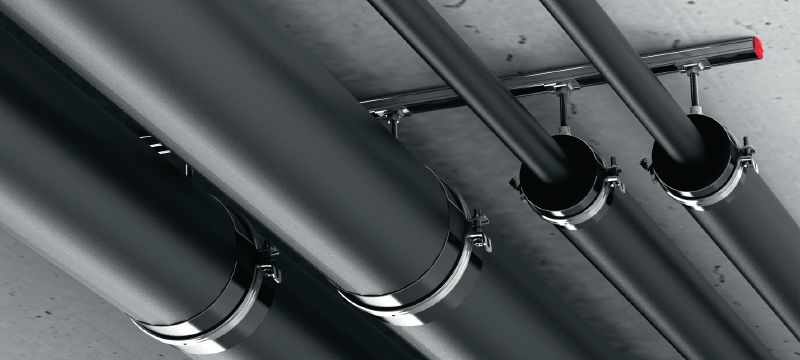

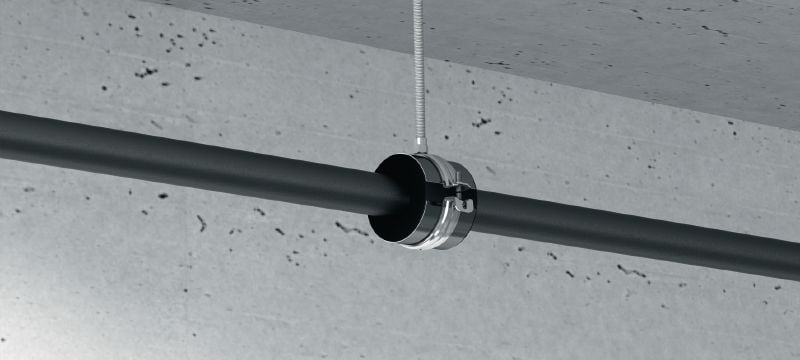

- Mounting pipes up to 169 mm diameter in refrigeration and air conditioning applications
- Applications where easy fitting of the insulating unit is required
- No sealants required
