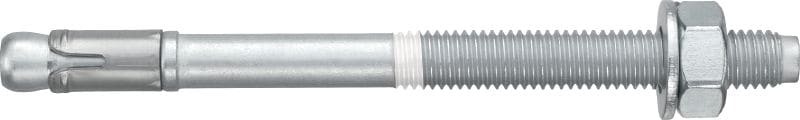

HST2 Wedge anchor
High-performance wedge anchor for everyday static and seismic loads in cracked concrete (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fire, FM (Factory Mutual)
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, FM (Factory Mutual)
Base materials
Concrete (cracked)
Installation tools
SIW 4AT-22 ½” Cordless impact wrench, SIW 6-22 ½” Cordless impact wrench, DD 30-W Core drill, TE 6-A22 Cordless rotary hammer
PROFIS software
Yes
Documents
Features & Applications
Features
- The optimised expansion cone and wedge design combined with special steel and coatings for appropriate performance in cracked and uncracked concrete
- Suitable for installation with SIW 6AT-A22 and SI-AT-A22 module for higher productivity and safety
- TE-CD hollow drill bits listed in ETA as a drilling method without load drop – TE-CD also allows a virtually dust-free working environment
- Suitable for use in hammer-drilled and diamond-cored holes (DD EC-1 and DD-30W)
Applications
- Wide range of safety-relevant applications

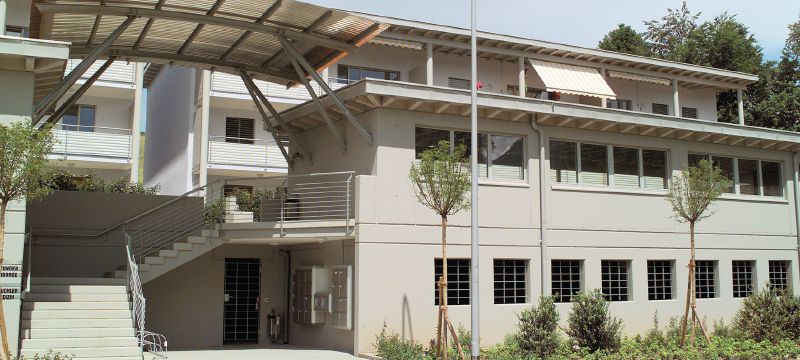

- Facades

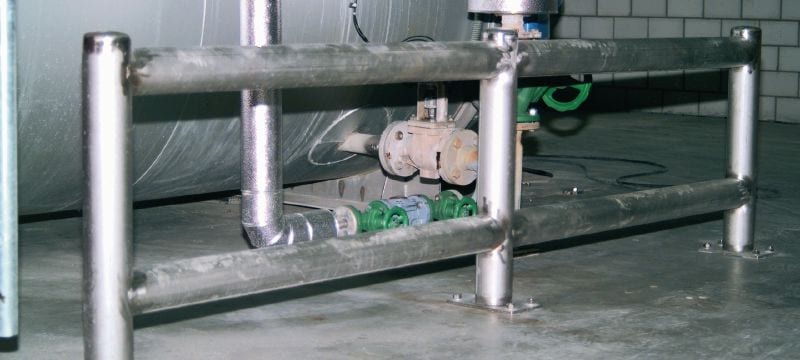

- Hand rails
For approval or certificate information, please see individual items.
