Nuron

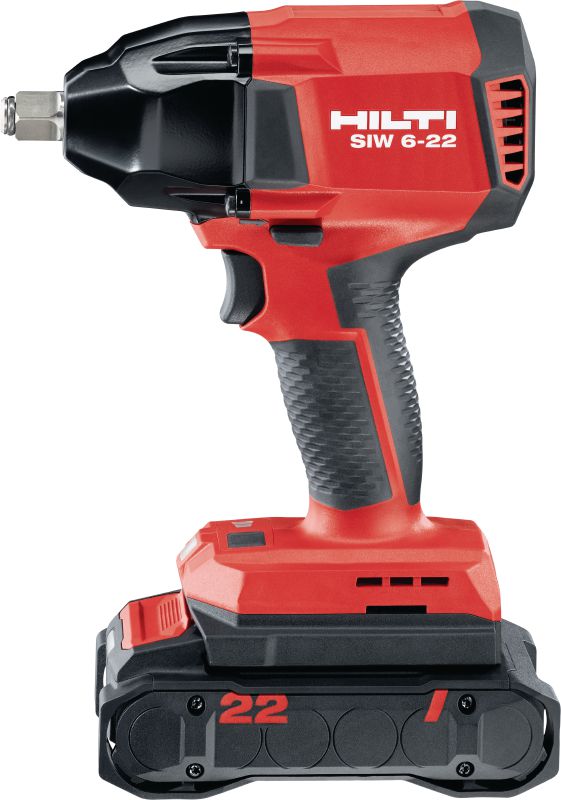

SIW 6-22 ½” Cordless impact wrench

Cordl. impact wrench SIW 6-22 1/2 box #2251609

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L142031 (226401)
L142918_cropped (229546)
L142928_cropped (229554)
L142912_cropped (229541)

Power-class cordless impact wrench with 1/2" friction ring anvil for a wide range of concrete anchoring and steel or wood bolting (Nuron battery platform)

  • Anvil type: 1/2" friction ring
  • Maximum torque: 300 Nm (1); 450 Nm (2)
  • Nut-busting torque: 650 Nm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
KWD 284.400
KWD 284.400 / 1 each

Technical Data

Anvil type
1/2" friction ring
Maximum torque
300 Nm (1); 450 Nm (2) 1
Nut-busting torque
650 Nm
Full hammering frequency
3.500 impacts/minute
Number of gears
2
No load RPM
gear 1: 1550 rpm; gear 2: 1750 rpm
Dimensions (LxWxH)
182 x 72 x 220 mm
Tool body weight
1.8 kg
A-weighted emission sound pressure level
103 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 6-22 (02), Arabic, cn, Danish, English, Spanish, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Portuguese, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.1 MB ]

Features & Applications

Features

  • Advanced cordless performance – faster concrete screw anchor setting from a more compact tool, thanks to the combination of brushless motor and next-generation Nuron batteries
  • Durable build – brushless motor and friction ring anvil contribute to the extreme longevity of our cordless impact wrenches
  • Faster anchor setting with more control – two speed settings and improved LED light so you can set large fasteners more quickly, or maintain precise control when needed
  • Exceptional ergonomics – slimmer, 52 mm shorter and 0.4 kg lighter than its predecessor, helping to delay fatigue when bolting and anchoring all day
  • On the Nuron battery platform – cordless impact wrenches without compromise thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow

Applications

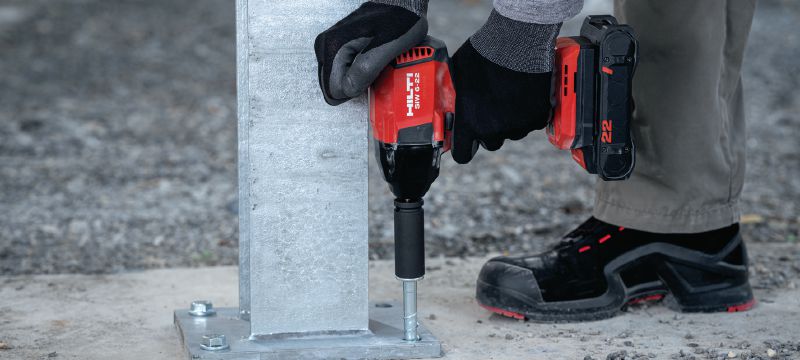

  • Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (8-14 mm diameter)

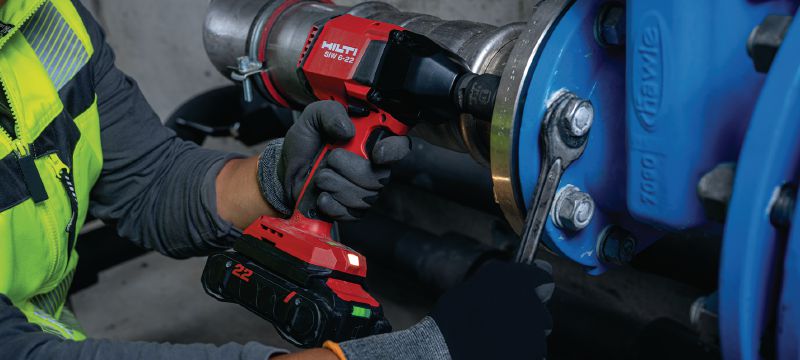

  • Bolting steel – such as for primary and secondary steel structures, handrails, racking and machinery (M10-M20 diameter)

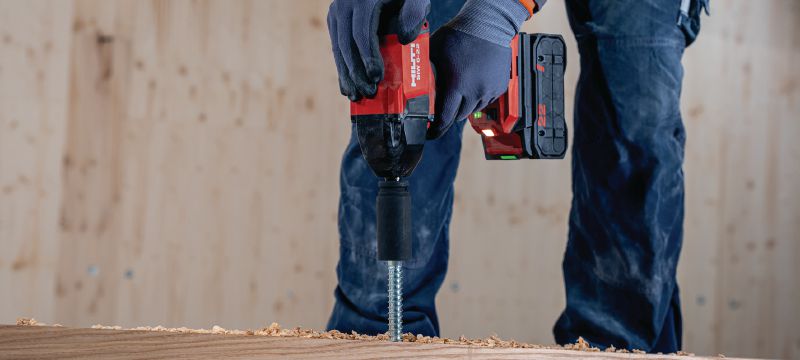

  • Lag bolting in wood – such as for primary and secondary wood structures, wooden roofs or temporary structures (8-16 mm diameter)
  • Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (3/8” to 5/8” diameter)
  • Metal bolting in steel – such as steel structures, handrails, racking and machinery (7/16” to ¾” diameter)

Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
