MIC-U Connector

Name: MIC-U Connector
Brand: Hilti
SKU: r3132

New product

Item #r3132

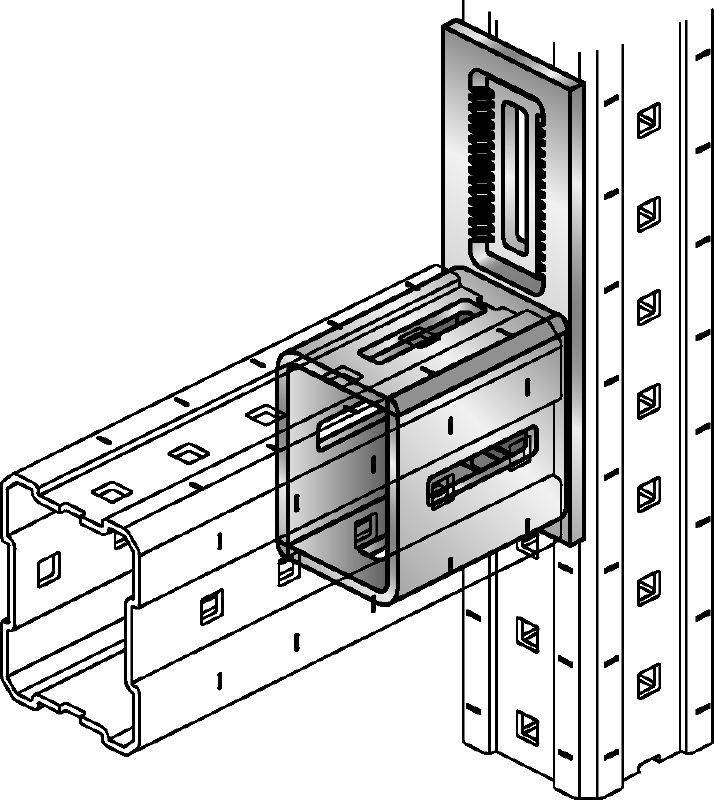

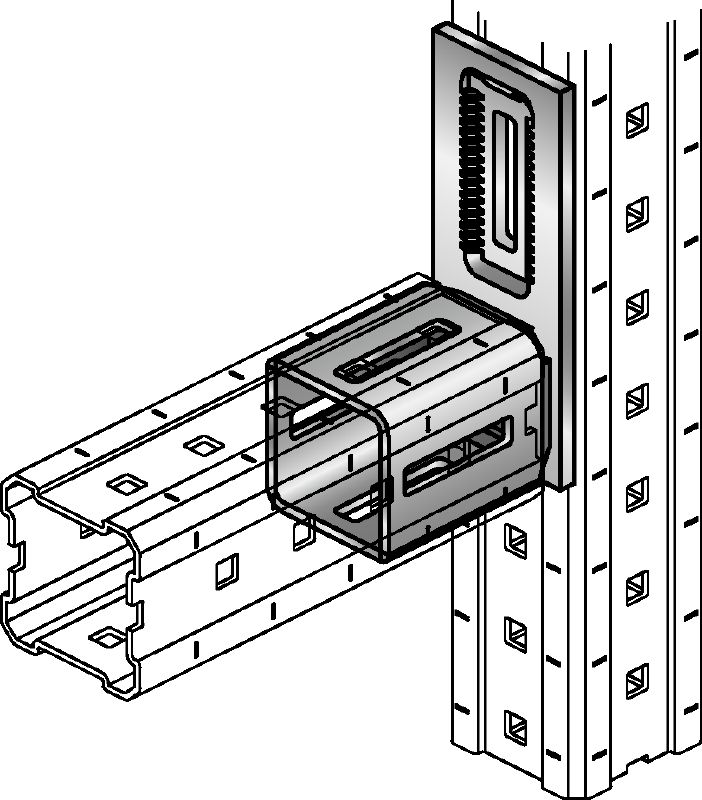

Connector for attaching modular girders to each other at right angles

Weight: 2.79 kg
Material composition: Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; backing plate, toothed plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-7 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; backing plate, toothed plate, bolt, nut 45 µm - DIN EN ISO 1461

More technical data

Customers also searched for cable tray installations, metal connectors, connecting girders, piping installations or 3d channel systems

Features

Provides a strong and rigid connection
Adjustable by up to 50 mm during installation
Can be finely adjusted by up to 5 mm
Connector comes with self-locking nuts to help protect against vibration
Keyed hold for optimum transmission of forces and moments

Applications

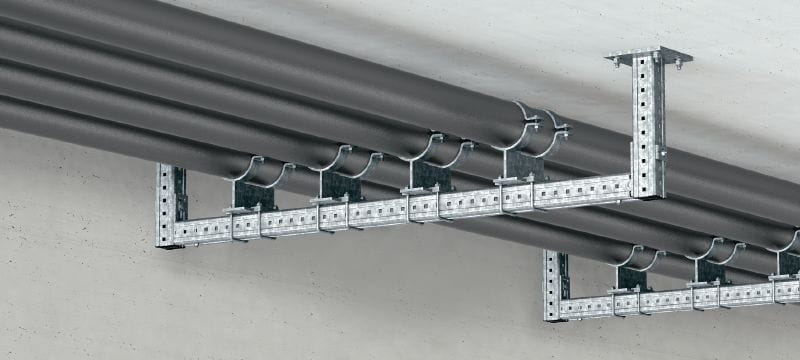

Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
Industrial and heavy commercial applications, eliminating the need for welding
Crossbeam connections
