MT-HL OC Wing nuts

Connector MT-HL M16 OC #2431072

Configurator
Technical Data
Documents
Features & Applications
Related Products
L151170 (3548845)
L133716_Cropped (3606935)
L151188_cropped (3598819)
04_IS_MT-HL M10 OC_0001 (3618363)

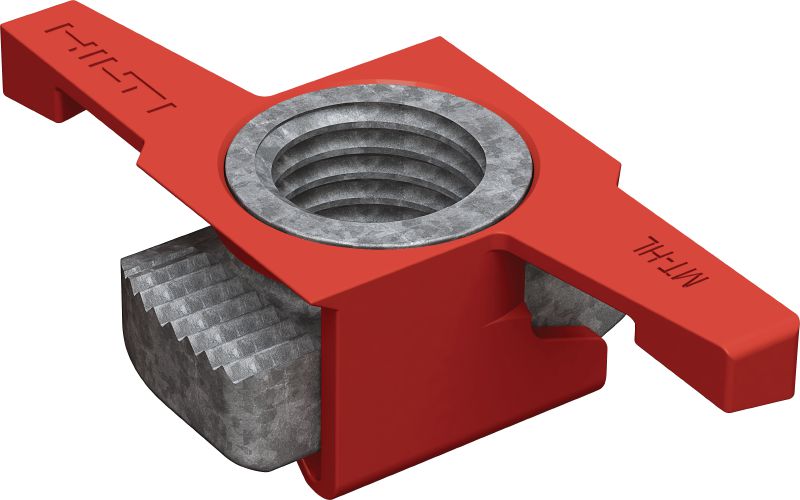

Wing nut for connecting threaded elements directly to MT box profiles in moderately corrosive environments

  • Material composition: Nut: C4C - EN 10263-2, PA66
  • Surface finish: Outdoor Coated - HDG
  • Weight: 0.04 kg

Choose options

Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
KWD 136.500
KWD 2.730
/
1 each

Technical Data

Details
Technical illustrations
Material composition
Nut: C4C - EN 10263-2, PA66
Surface finish
Outdoor Coated - HDG
Weight
0.04 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Brochure
Operating Instruction
pdf MT Systems Brochure W4569 [ 1.6 MB ]

Features & Applications

Features

  • Fewer work steps – faster installations in under three work steps and serrated design to help pre-secure connecting elements for better handling

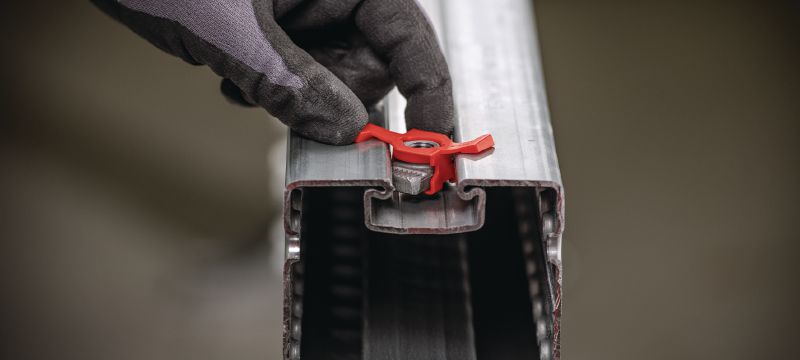

  • Simple to adjust – can be inserted and adjusted at any point along the profile, with 2.5 mm (1/8") incremental adjustments
  • Flush connections – flexible wing holds nut in place and sits flush with the profile, for easy and versatile media attachment
  • Reliable installations – approved for shear loads for secure connections
  • Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

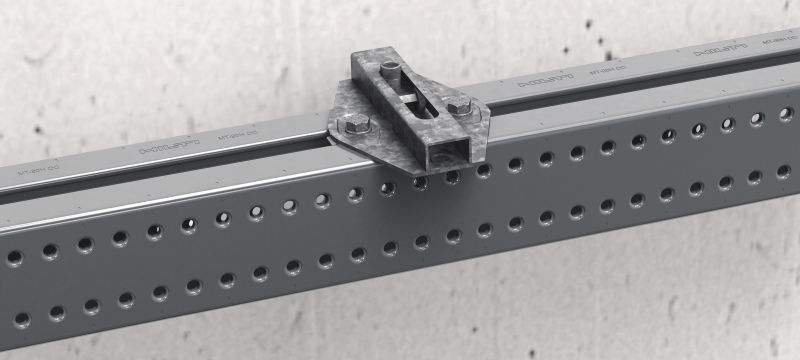

  • Connecting all compatible hardware to MT box profiles
  • Assembling MEP support structures by fixing compatible MT connectors
  • Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
  • Process piping for energy and industry applications
  • Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage
