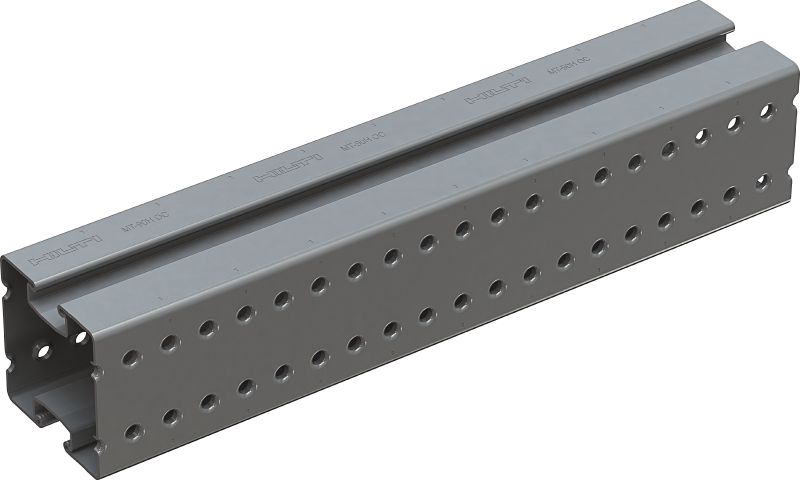

MT-90H OC Box profile

I.-Girder MT-90H OC #2430776

heavy-duty box profile for use with MT-TFB and MT-THB/MT-HL components in outdoor environments

Pack size

Product options

Quantity

Packs

Total m

You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

0.16666666666666666 Packs (Total pieces 1)

Discounted net

Price loading error occured

Please contact us

Technical Data

Material composition

S350 or better steel

Surface finish

Outdoor Coated - ZM

Material thickness

2.25 mm

Weight

52.74 kg

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

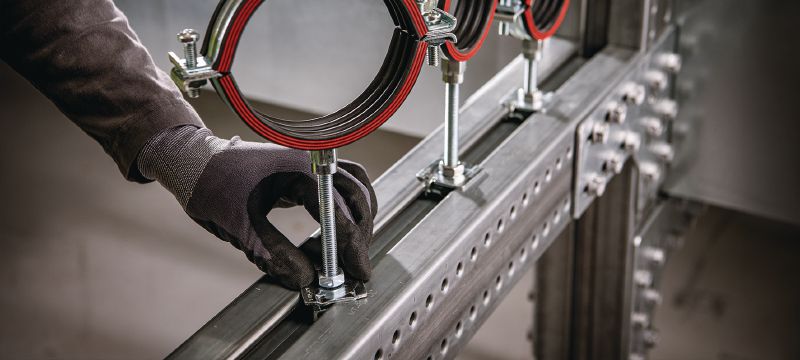

Fast and flexible assembly – mounting slot with pre-holding function allows you to quickly attach, adjust, re-adjust connectors at any point along the section, helping reduce costly errors and re-work
Simpler to design – you can use all Hilti MT System components for the lightest to heaviest-duty MEP installations, helping to simplify your designs, logistics and on-site operations
Simpler to instal – domed-holes combine with the MT Thread Forming Bolts, for full integration with a wide range of MT connectors and baseplates
Lighter and more cost-effective – steel with improved load efficiency makes MT-90H OC box profiles an efficient alternative to welding for many heavy-duty MEP supports and modular structures
Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures

Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.

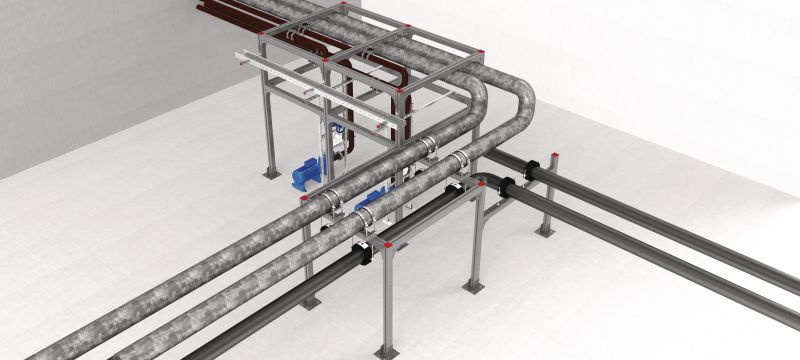

Process piping for energy and industry applications

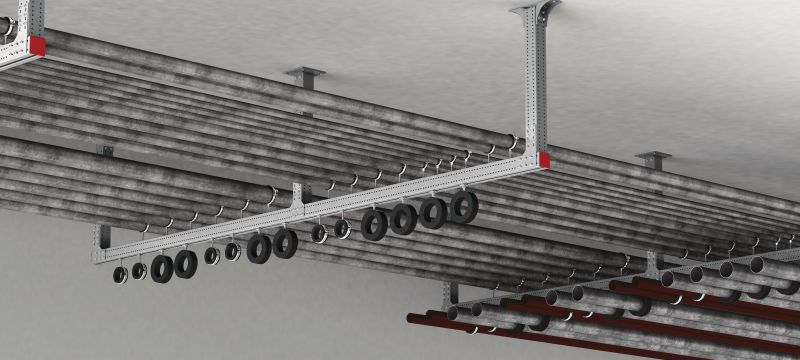

Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage

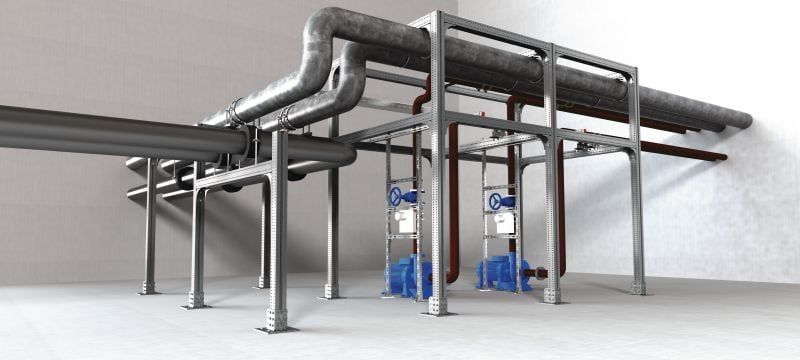

Integrated modules and skids to support industrial pipes and other heavy-duty building services

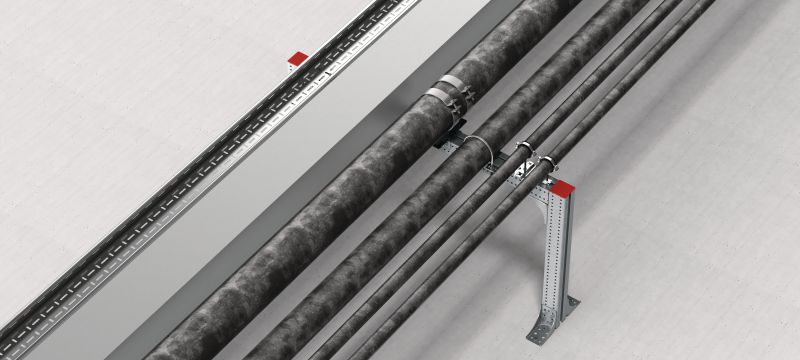

Floor-mounted MEP support structures with heavy loads
