MQ-41/3 C-Channel profile

I.-channel MQ-41/3 6m #369597

MQ-41/3

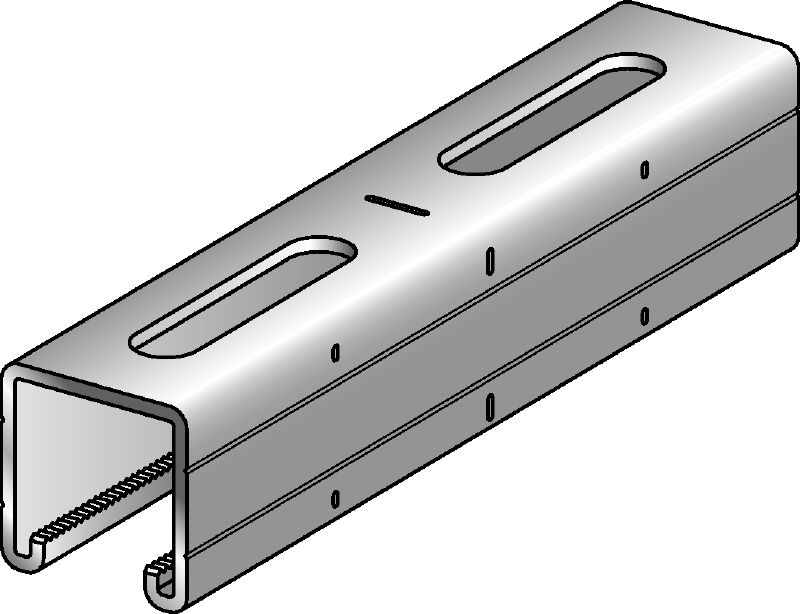

Galvanised C-Channel profile for medium-duty applications

  • Approvals: ETA
  • Height: 41.3 mm
  • Material thickness: 3 mm

Customers also searched for pipe supports, cable tray supports, ventilation duct supports, fastening supports or installation channel.

Choose options

Length
  • 6 m
Pack size
  • 6 m
 Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Approvals
ETA
Height
41.3 mm
Material thickness
3 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
17460 g

Documents

pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Optimised hole pattern – for more flexible attachment options
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Recommended for installation in dry interiors
  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
