S-MP 53 Z Self-tapping screws

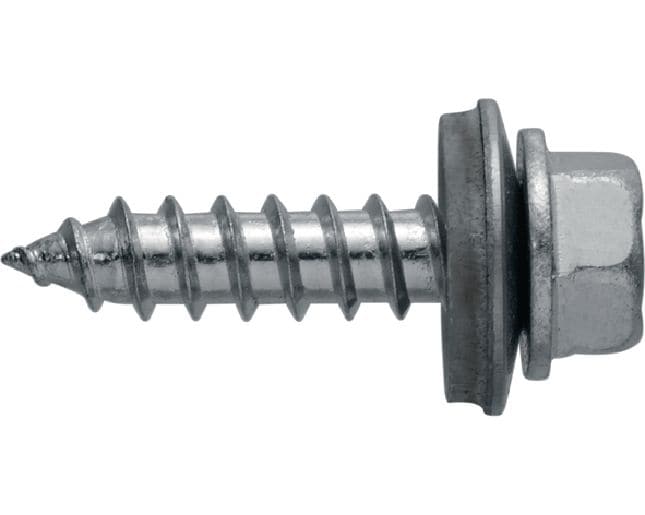

Self-tapping screw S-MP53Z 6,5x100 #375287

Configurator
Technical Data
Documents
Features & Applications
Related Products
r2973,r2283

Self-tapping screw (zinc-plated carbon steel) with 16 mm washer for fastening on timber framing or thin steel/aluminium

  • Screw drive/recess type: Hexagon 3/8
  • Washer size: 16 mm
  • Base materials: Wood, Carbon steel, Aluminium

Choose options

Corrosion protection
  • Zinc-plated
Thickness fastened range MF
  • 1.2 - 89 mm
Length
  • 100 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Screw drive/recess type
Hexagon 3/8
Washer size
16 mm
Base materials
Wood, Carbon steel, Aluminium
Environmental conditions
Dry indoor
Screw diameter d
6.5 mm
Length
100 mm
Screw head diameter
13 mm
Washer type
Bonded EPDM

Documents

Reference document
Technical information
Operating Instruction
pdf Powder-actuated fasteners and fastening screws in steel construction, Reprint from Stahlbau-Kalender 2019, Ernst & Sohn, English [ 7 MB ]

Features & Applications

Features

  • Self-tapping screw for timber framing or thin steel/aluminium members
  • Fitted with EPDM sealing washer
  • EPDM rubber washer – creates a more reliable seal against water
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be coloured to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanised carbon steel for fastening in dry, indoor environments
  • Fastening timber framing (26 mm minimum embedment depth)
  • For applications requiring watertight fastenings with 16 mm washer
  • Wood substructures with at least 26 mm anchorage depth
