HDA-PF Undercut anchor

Undercut anchor HDA-PF M16x190/40 #339359

Configurator
Technical Data
Documents
Features & Applications
Related Products
9364.tif
HDA-PF, HDA-TF
HDA-PF, HDA-TF
HAD Design anchors

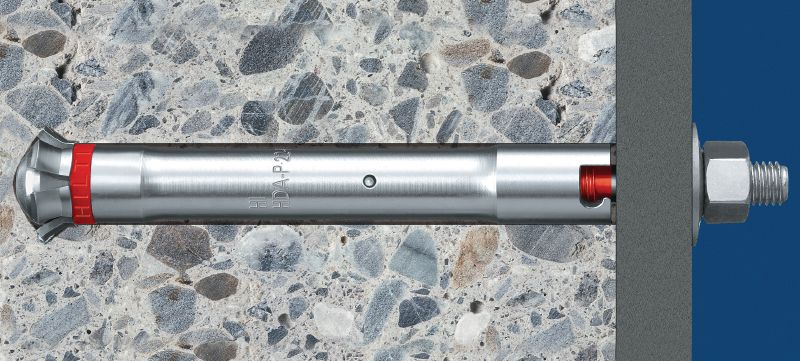

Ultimate-performance pre-set undercut anchor for dynamic loads (sherardised steel)

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Head configuration: Externally threaded
  • Max. fixture thickness at standard embedment depth: 40 mm

Choose options

Anchor size
  • M16
Standard embedment depth
  • 190 mm
Max. fixture thickness at standard embedment depth
  • 40 mm
Pack size
  • 4 pc
 Product options
Quantity
Packs
Total Pieces
4
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
KWD 850.200
KWD 70.850
/
1 each

Technical Data

Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Head configuration
Externally threaded
Max. fixture thickness at standard embedment depth
40 mm
PROFIS software
No

Documents

Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf Solutions for fastening: Improved design for anchors under shear loading, English [ 1.6 MB ]

Features & Applications

Features

  • Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect helps provides a secure hold even in cracked concrete
  • Manufactured under the NQA-1 nuclear quality assurance program

Applications

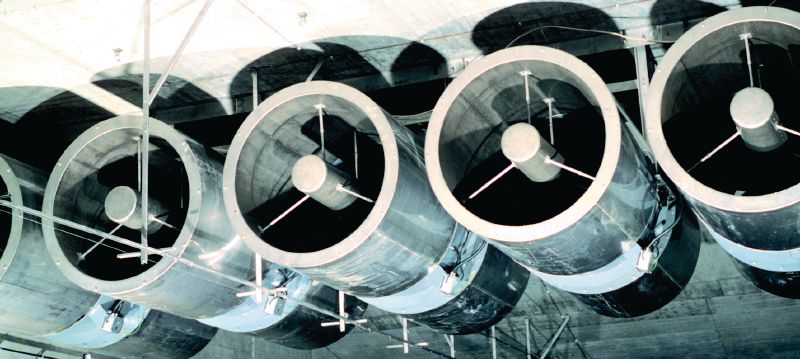

  • Safety-relevant, heavy-duty fastenings for dynamic loading in cracked or uncracked concrete, including applications in nuclear power plants
  • Examples: supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fastening points, elevator tracks, bridge retrofitting etc.
