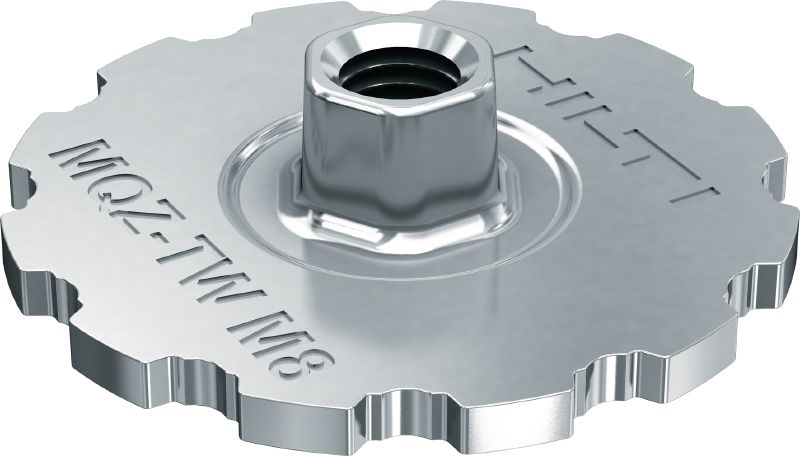

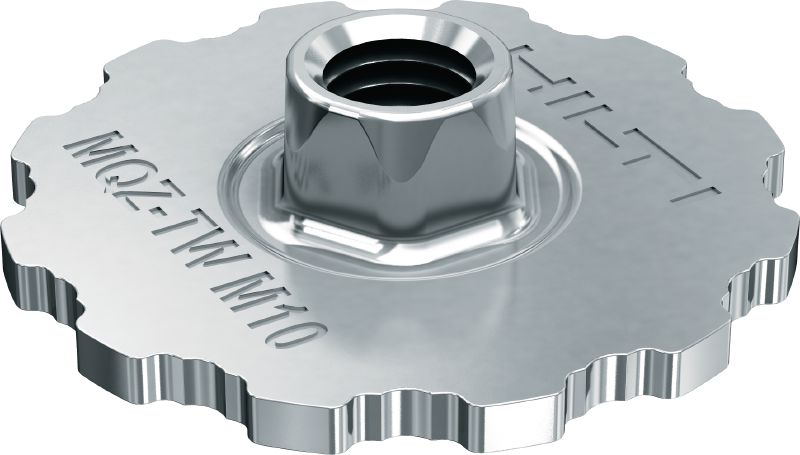

MQZ-TW Trapeze wheel
Ultimate galvanised adjustable channel plate for trapeze applications
- Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025, DC04 - DIN EN 10130
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: 3 mm
ultimate
Choose options
Thread connection - M
- M10
Wrench size
- 13 mm
Pack size
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From KWD 11.180
Technical Data
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025, DC04 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Material thickness
3 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product class
Ultimate
Documents
Features & Applications
Features
- Single-piece part combining nut and washer
- Shaped for optimal handling convenience
- Faster and less error-prone installation compared to traditional alternatives
- Tool-free installation possible – M10 version is self-locking
Applications

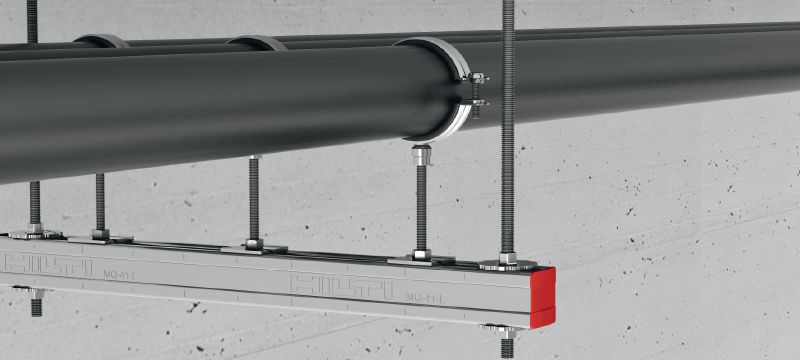

- Fastening installation channels to threaded rods
- Connecting threaded rod to strut channels
- Adjusting the height of threaded rod to strut channels connections
For approval or certificate information, please see individual items.
