MQA pipe clamp saddle
Pipe ring saddle MQA-M8 #369629

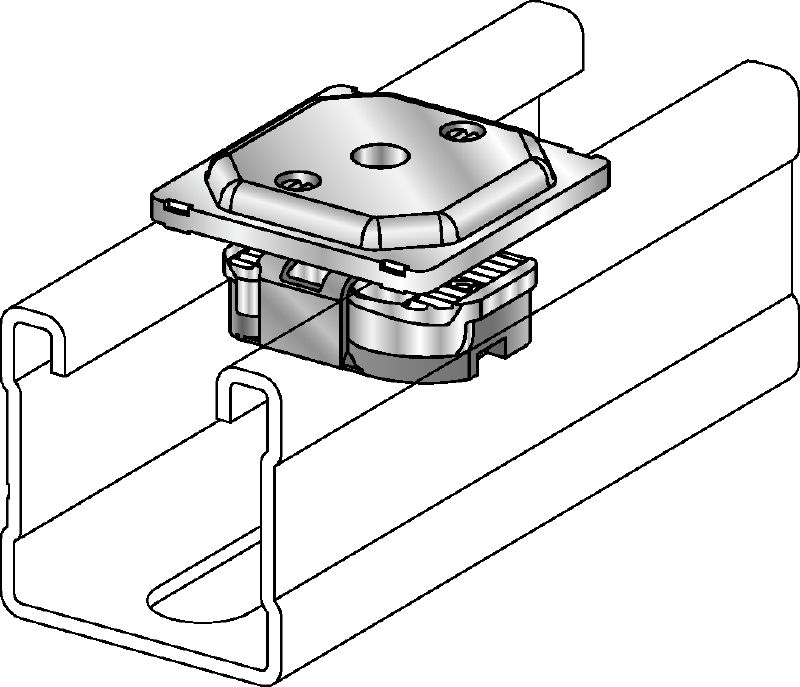

Galvanised pipe clamp saddle for connecting threaded components to MQ strut channels
- Product class: Premium
- Tightening torque: 9 Nm
- Thread connection - M: M8
premium
Customers also searched for pipe supports, installing pipes, pipe rings, pipe clamps or connectors.
Choose options
Thread connection - M
- M8
Pack size
- 50 pc
Quantity
Packs
Total Pieces
50
Discounted net
Technical Data
Product class
Premium
Tightening torque
9 Nm
Thread connection - M
M8
Material composition
Nut: QStE 380 TM, SEW 92, Plate: DD11 - DIN EN 10111, Plastic: PA 6.6
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
57 g
Documents
Features & Applications
Features
- Quick connection of threaded components to the open side of MQ strut channels
- Single, compact part – for higher productivity and flexibility
- Various thread sizes available
- Easy alignment in the right position
- Different threaded rod sizes available
Applications
- Fastening pipes and air ducts
- Recommended for use in dry, interior environments
