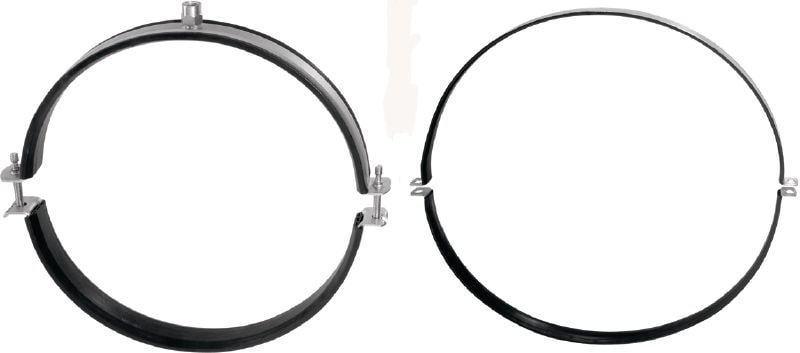

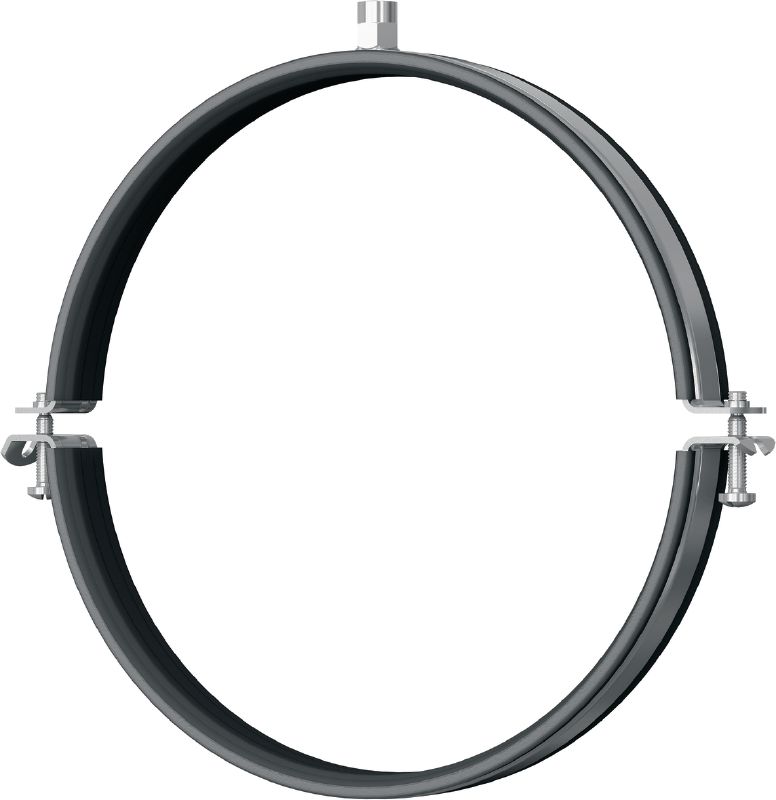

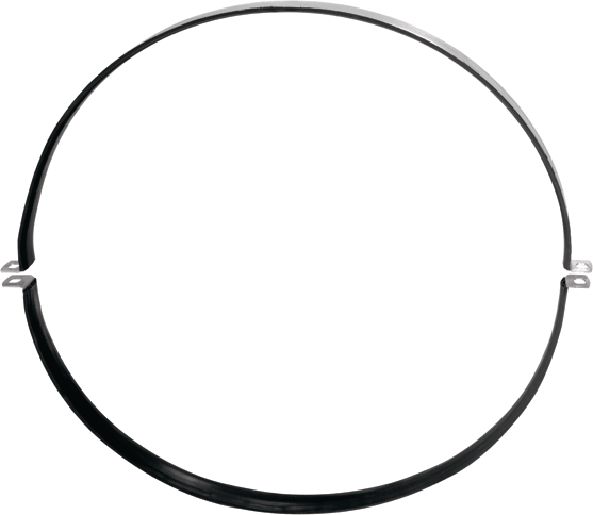

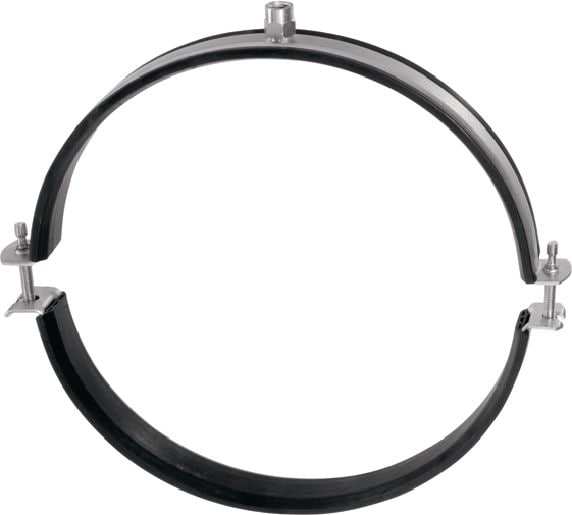

MV-PI Ventilation pipe clamp

Vent. pipe ring MV-PI 500 M8/M10 #386496

Galvanised ventilation pipe clamp with sound insulation for high productivity in spiral duct applications

Thread connection - M: M8, M10
Maximum load - F: 1500 N
Approvals: Fire class B2

Choose options

Thread connection - M

M8, M10

Nominal pipe size

500 mm

Pack size

10 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

KWD 91.000

KWD 18.200 / 1 each

Technical Data

Thread connection - M

M8, M10

Maximum load - F

1500 N

Approvals

Fire class B2

Noise reduction

21 dB (A)

Temperature resistance

-40 - 110 °C

Material composition

DD11 - DIN EN 10111

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Insulation material

EPDM rubber

Hardness insulation material

55° ±5° Shore A

Clamping screw

M10

Tightening torque

5 Nm

Cross section thickness - s

2.5 mm

Cross section width - b

25 mm

Width - B

566 mm

Distance between holes - A

540 mm

Distance centre pipe to top - h

267 mm

Documents

Features & Applications

Features

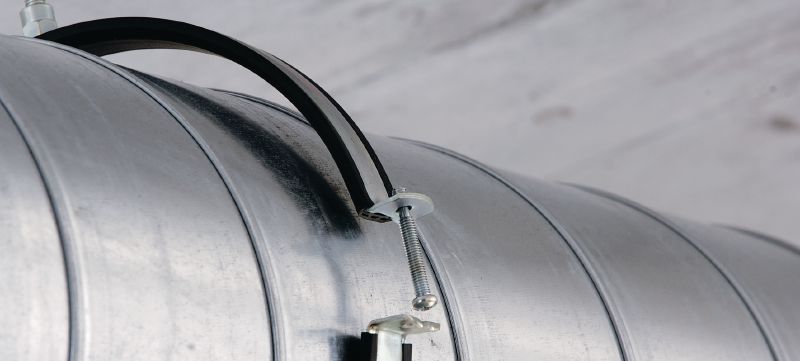

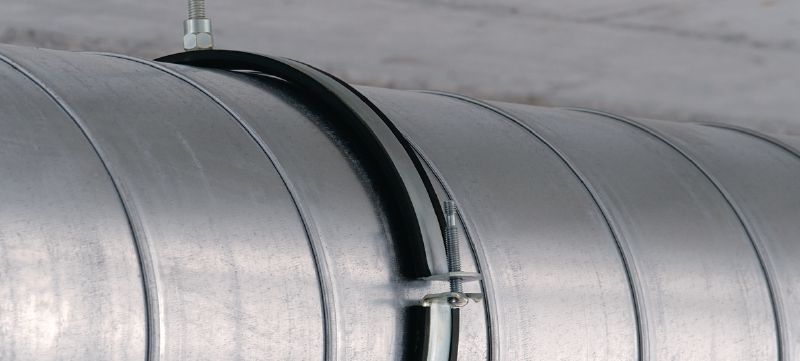

Click closure – pipes in different diameters can be inserted and fastened quickly and conveniently using the vertical quick-lock closure
Captive acoustic insulation insert – EPDM rubber insert with wide edge-gripping profile (up to 450 mm dia.); adhesive bonded on 500 mm dia. and larger to help prevent slippage during installation
Clamping ranges suitable for all standard-sized folded spiral-seam pipes
Ventilation pipe rings with M8/M10 connection head
Sound insulation certified for DIN 4109
