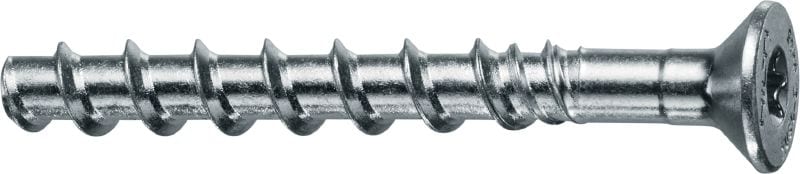

HUS4-C Screw anchor

High-performing countersunk head screw anchor for fastening to concrete and masonry (carbon steel)

Anchor size

Anchor length

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From KWD 72.150

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Countersunk Torx

Approvals / test reports

ETA, Fire, Seismic

Base materials

Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)

Reusable (and removable)

Not possible

Cleaning procedures

Manual cleaning, Non-cleaning

PROFIS software

Yes

Environmental conditions

Dry indoor

Material composition

Steel, zinc-plated (min. 5 µm)

Removable and adjustable (nominal embedment ≥ 60 mm) – to help when levelling the baseplate
Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
Improved setting with less blocking – thanks to smaller core diameter and new thread design
Countersunk head – to fasten flush to a baseplate for improved aesthetics and trip safety
Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Fastening non-structural baseplates – such as handrails, staircases and balustrades
Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use

For approval or certificate information, please see individual items.
