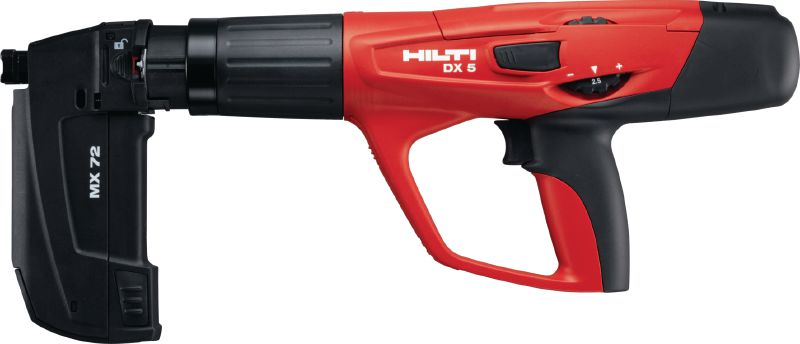

DX 5-MX Powder-actuated tool







Digitally enabled, fully automatic, high-productivity and versatile powder actuated tool for fastening collated nails
- Dimensions (LxWxH): 486 x 72 x 180 mm
- Weight: 3.64 kg
- Fastener length range: 14 - 72 mm
Customers also searched for Hilti gun, powder actuated gun or nail gun.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
You can not see your company prices
Discounted net
KWD 979.200
KWD 979.200
/
1 each
Technical Data
Dimensions (LxWxH)
486 x 72 x 180 mm
Weight
3.64 kg
Fastener length range
14 - 72 mm
Cartridge type
.27 calibre short, 6.8/11 M10
Automatic piston return
Yes
Bluetooth
Yes
Hilti Connect
Yes
Power (max.)
325 J
Power regulation
Yes
Piston type
X-6-5-P8
Documents
pdf Service indicator instructions [ 996.7 KB ]
Features & Applications
Features

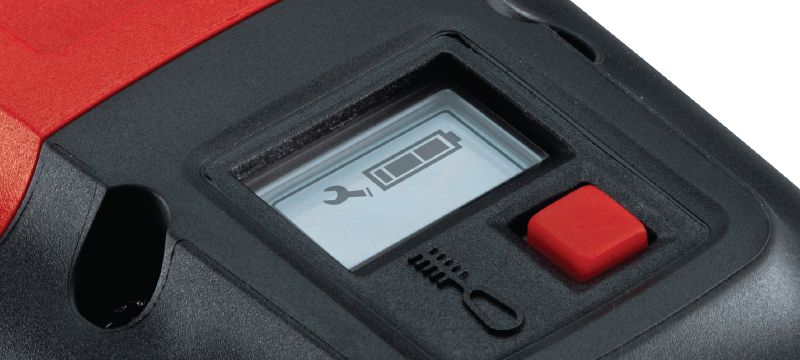

- Smart tool that tells you when cleaning and maintenance are required
- Built-in connectivity with the Hilti Connect app – putting key tool data, how-to videos and technical support at the operator's fingertips
- High productivity: Fully automatic piston return, cartridge transport and 10 nail collation magazine
- With the magazine 10 fasteners can be driven in quick succession without reloading
- Superb ergonomics and design with reduced recoil
Applications
- A wide variety of applications using collated fasteners

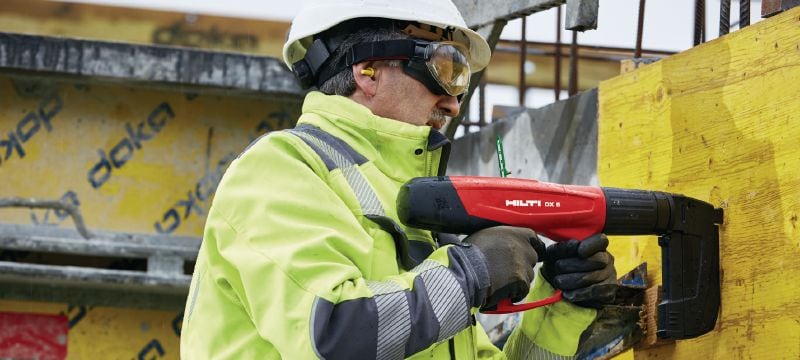

- Fastening wood and metal sheet to concrete, sand-lime block masonry or steel
- Fastening 2x4s to concrete
- Attaching drainage foils and membranes to concrete or CMU block

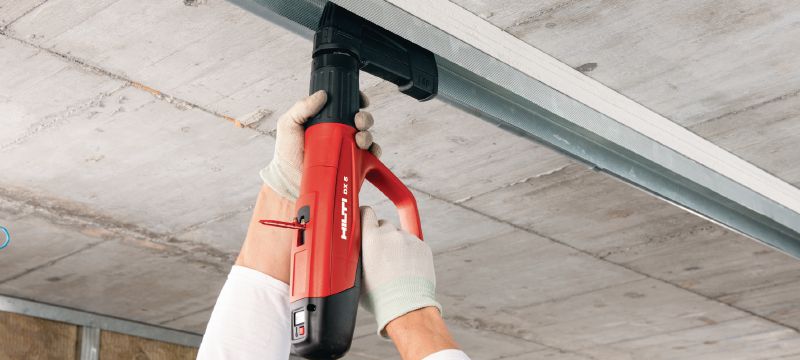

- Fastening perimeter wall, deflection or slip clips to concrete and steel
For approval or certificate information, please see individual items.
