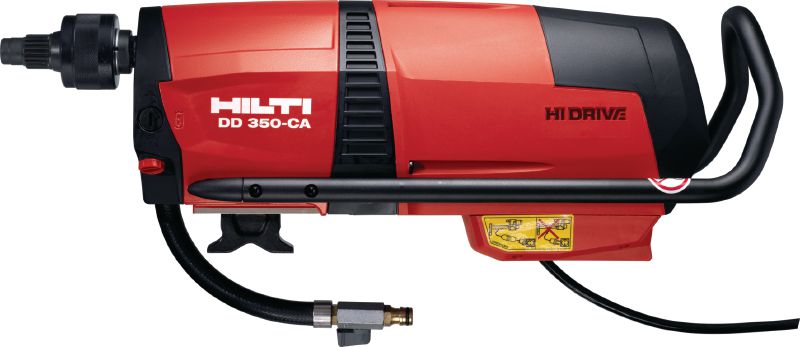

DD 350-CA Core drill
Diamond coring tool DD 350-CA BL 230V #2095267







Heavy-duty diamond coring machine with high-frequency motor and optional auto-feed unit for rig-based coring from 52-500 mm (2-1/16 - 19-11/16”) in diameter
- Diameter range: 52 - 500 mm
- Rated input voltage: 230 V
- Base material: Concrete, Reinforced concrete
Customers also searched for diamond coring, coring holes, coring tools, coring reinforced concrete or coring.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
You can not see your company prices
Discounted net
KWD 4,500.000
KWD 4,500.000 / 1 each
Technical Data
Diameter range
52 - 500 mm
Rated input voltage
230 V
Base material
Concrete, Reinforced concrete
Operation mode
Rig-based drilling system
Rated input power
3600 W
Number of gears
10
No load RPM
gear 1: 298 rpm; gear 2: 667 rpm; gear 4: 619 rpm; gear 5: 571 rpm; gear 6: 524 rpm; gear 7: 405 rpm; gear 8: 357 rpm; gear 9: 286 rpm
Weight according to EPTA-Procedure 01/2003 without battery
14.4 kg
Weight of complete system
35 kg
Dimensions (LxWxH)
608 x 192 x 216 mm
A-weighted emission sound pressure level
95 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
- According to the applicable product standard (see Operating Instruction for more details)
Documents
pdf Operating Instruction DD 350-CA (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese [ 15.9 MB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 13.9 KB ]
Features & Applications
Features
- Powerful high-frequency motor with electronic speed control for optimum power delivery over the entire diameter range
- Compatible with the DD AF-CA automatic feed unit that makes drilling a highly efficient and fully automated process
- Iron Boost: for a quick performance boost with increased torque when drilling through rebar
- Thanks to IP 55 water spray protection, drilling can be carried out under adverse conditions
- Operation within the optimum power band, for peak performance and longer core bit life, is easy with the aid of the LED power indicators
Applications
- Drilling through-holes and penetrations
- Blind holes for setting anchors or post-installed rebar
- Corner holes for sawing
- Manhole openings
- Stitch coring for installing cable trays
Related Products
A single unit for the supply of cooling water as well as the collection and filtration of wastewater from diamond drilling systems

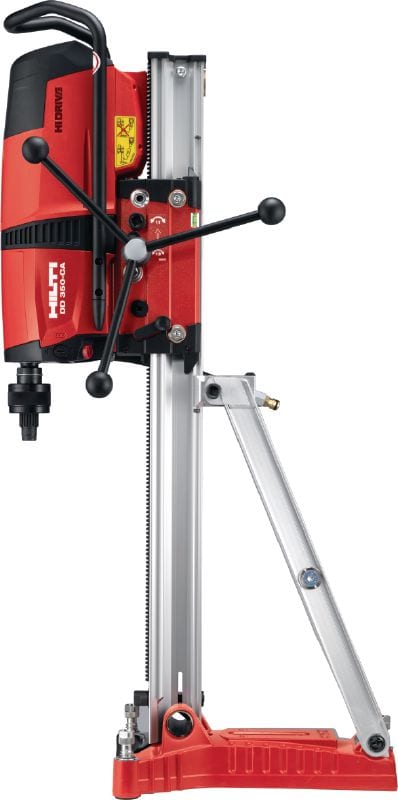

Drill stand for heavy duty Hilti coring machines (see technical data for tool compatibility)
