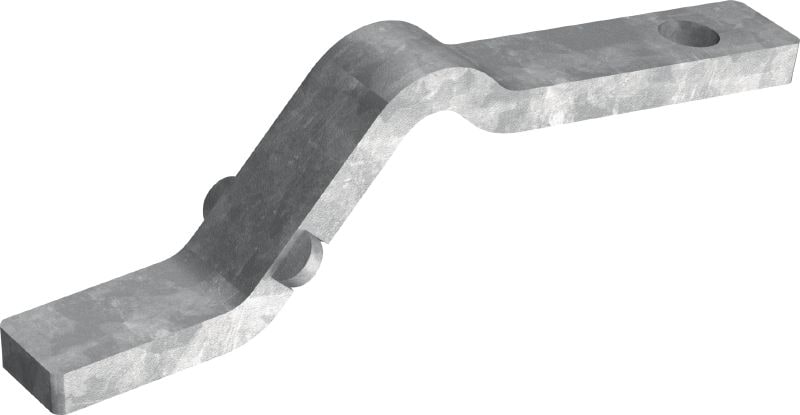

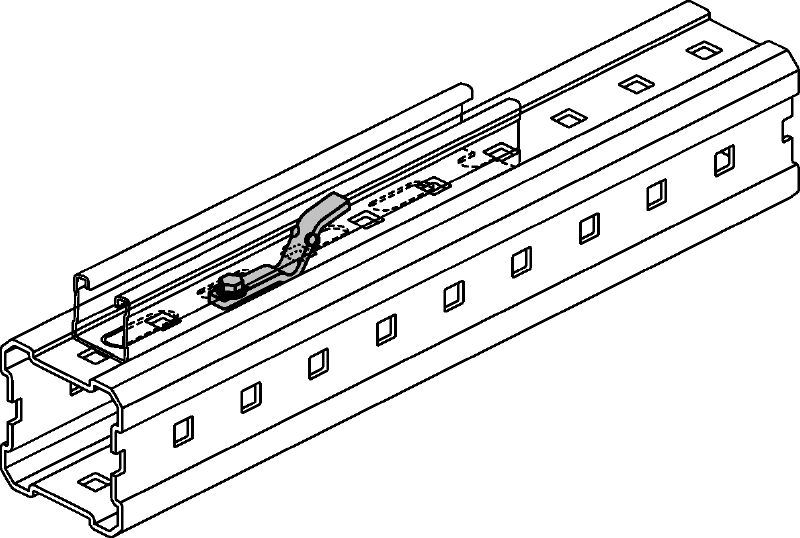

Hot-dip galvanised (HDG) connector for fastening MQ strut channels parallel to MI girders

  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8
  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Customers also searched for connecting channelsinstalling metal channelsglavanised connectorsconnectors or metal connectors.

Technical Data

MIC-MI/MQ M8
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Allows direct connection to MQ strut channels
  • Keyed hold for optimum transmission of forces and moments

Applications

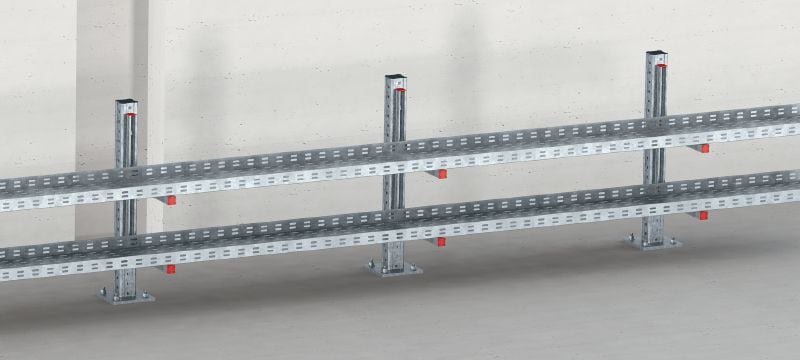

  • Direct connection of MQ installation channels to the MI system
  • Applications in the chemical, pharma and petrochemical industries or in incineration plants and power stations

For approval or certificate information, please see individual items.
