MQW-L

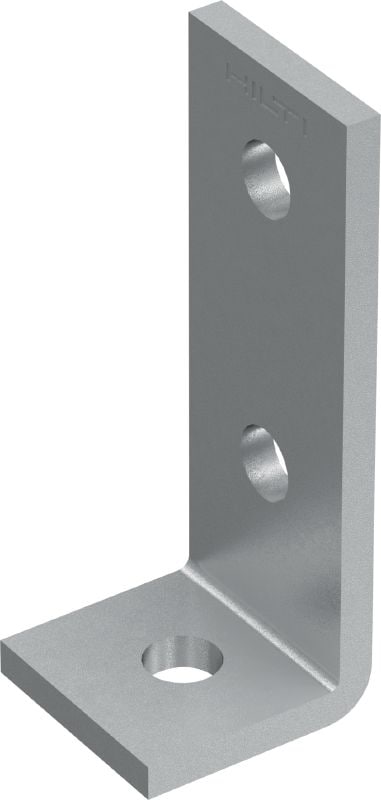

Angle MQW-L-2/1 #2142021

Configurator
Technical Data
Features & Applications
Related Products
CG002677_v1 (203775)
MQW-L (83665)
MQW-L_2_1 (83651)

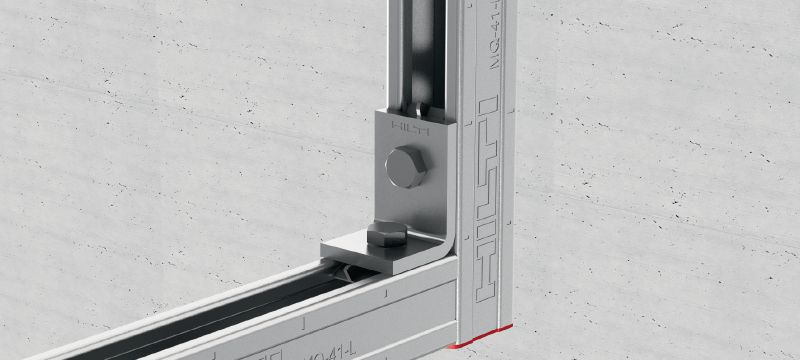

Standard galvanised 90-degree angle for connecting multiple MQ strut channels

  • Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Material thickness: 6 mm
standard

Choose options

Angle
  • 90 °
Pack size
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details

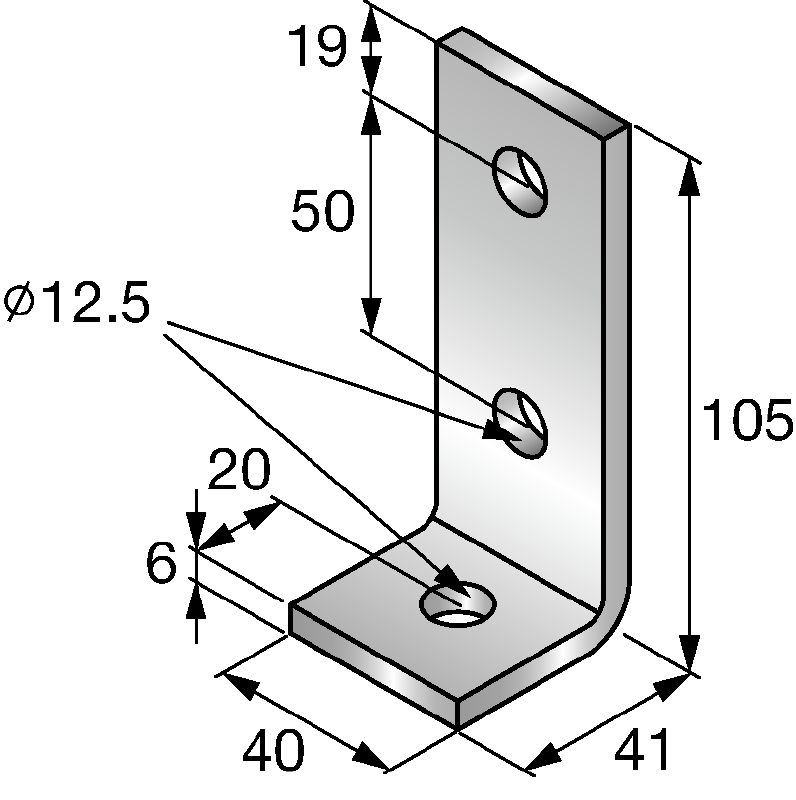

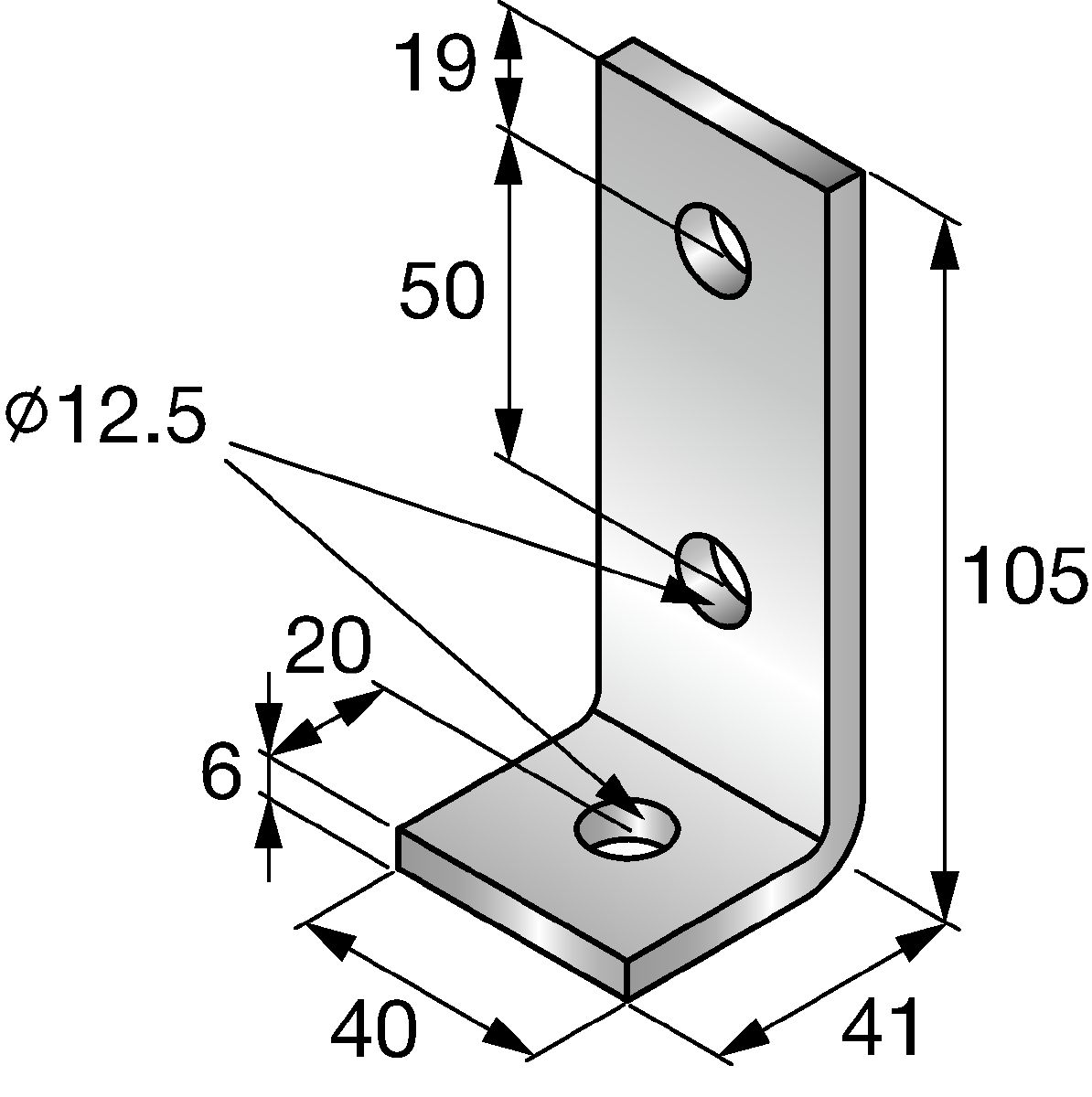

Technical illustrations
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Material thickness
6 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Angle
90 °
Weight
241 g
Product class
Standard

Features & Applications

Features

  • Flexibility – complete many different applications using few parts
  • Adjustable – easily fit and repositioned along strut channels

Applications

  • Assembling channel frames and support structures
  • Compatible with multiple MQ strut channels
  • Recommended for use in dry, interior environments
