MIQC-E Connector

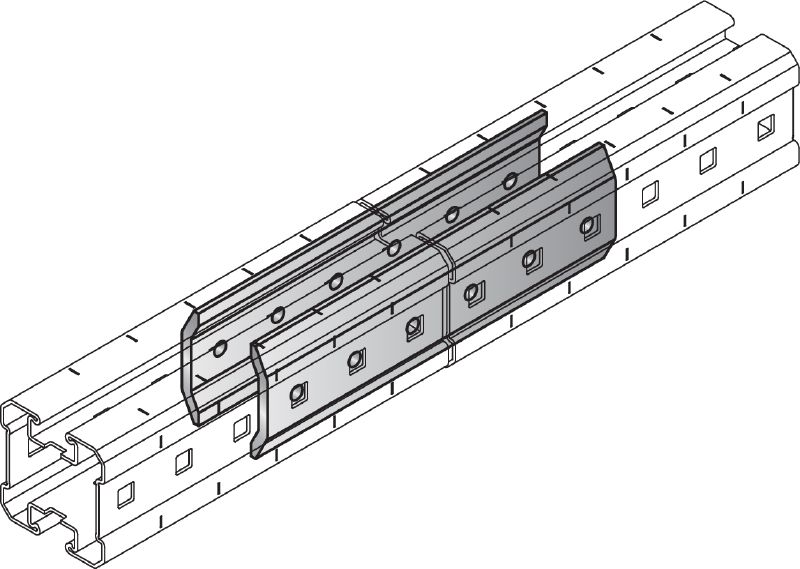

MIQC-90-E girder extension connector product number: 2140259
Hot-dip galvanised (HDG) connector used to connect MIQ girders longitudinally for long spans in heavy-duty applications
- Weight: 3.48 kg
- Material composition: DD11 MOD - HN 547, S275JR - DIN EN 10025
- Surface finish: Hot-dip galvanized 55 µm DIN EN ISO 1462
Choose options
Pack size
- 2 pc
Quantity
Packs
Total Pieces
2
Discounted net
Technical Data
Weight
3.48 kg
Material composition
DD11 MOD - HN 547, S275JR - DIN EN 10025
Surface finish
Hot-dip galvanized 55 µm DIN EN ISO 1462
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Set
Yes
Tightening torque
84 Nm
Wrench size
10 mm
Documents
pdf Corrosion handbook, English [ 9.4 MB ]
Features & Applications
Features
- Fast, easy installation
- Flexible mounting positions
- Minimised load reduction
Applications

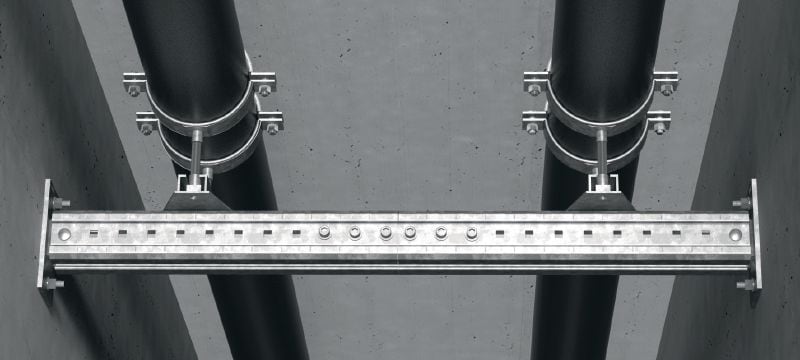

- Linear connection of MIQ girders
