MIQC-C Base plate connector

Connector MIQC-C90 concrete #2120144

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG002390_HDG_v1 (202977)
IS_MIQ_0006_o.eps (75812)
MIQC-90-HW, MIQC-90-HW, MIQC-90-HS, MIQC-90-HT (76908)
IS_MIQ_0006.eps (75804)

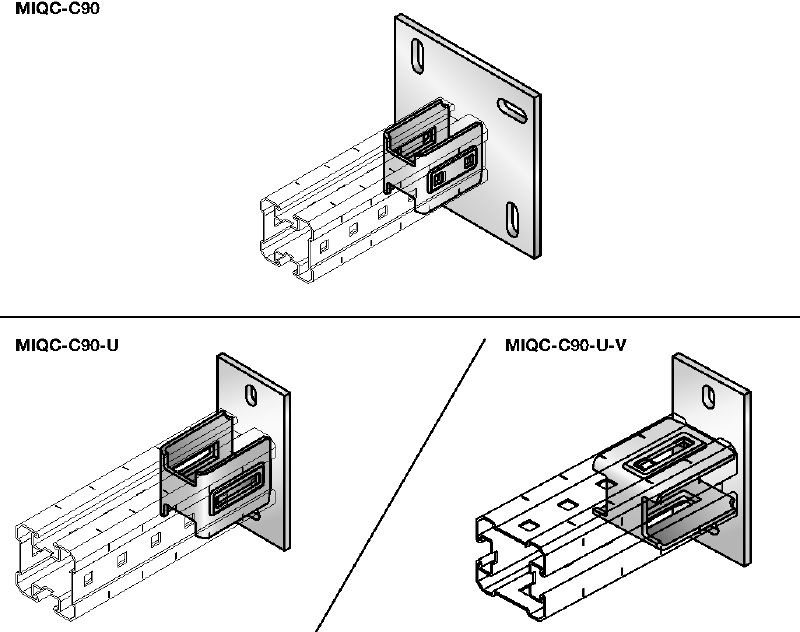

Hot-dip galvanised (HDG) baseplate for fastening MIQ girders to concrete for heavy-duty applications

  • Weight: 4.93 kg
  • Material composition: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2
  • Surface finish: Hot-dip galvanized 55 µm - DIN EN ISO 1461

Choose options

Pack size
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Weight
4.93 kg
Material composition
DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2
Surface finish
Hot-dip galvanized 55 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

Documentation
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • No welding required – for faster, more efficient installation
  • Elongated holes – to simplify exact positioning
  • Low weight for easier installation – no lifting devices needed

Applications

  • Part of a modular system for supporting cable trays, pipes and other installations
  • Connecting MIQ-90 girders to concrete floors, ceilings or walls
  • Heavy-duty cantilevers with bracing and U-frames on concrete
