MIQC-H cross connector

Connector MIQC-90-HT set #2123881

IS_MIQ_0003_o.eps (75817)

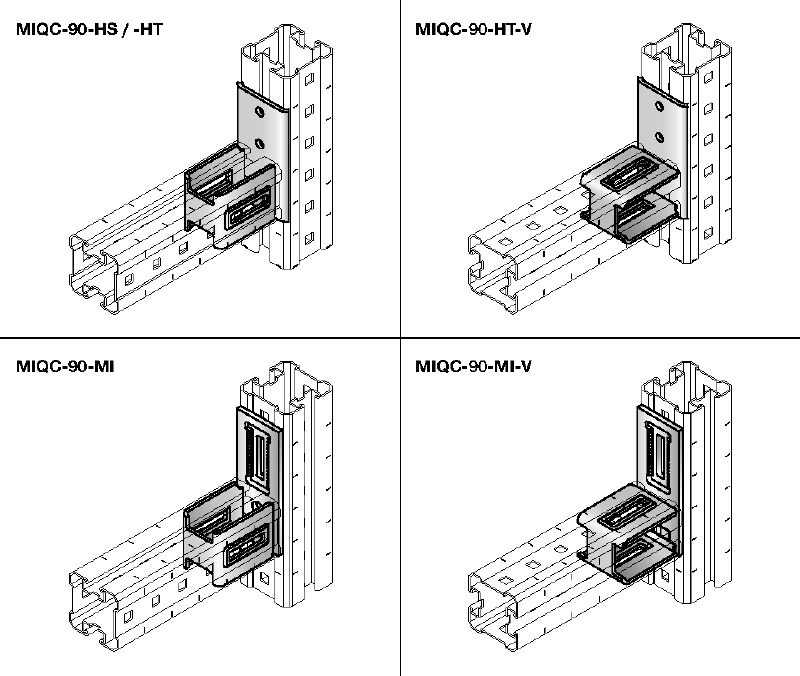

MIQC-90-HW, MIQC-90-HW, MIQC-90-HS, MIQC-90-HT (76908)

IS_MIQ_0003.eps (80274)

IS_MIQ_0003_o.eps (75817)

MIQC-90-HW, MIQC-90-HW, MIQC-90-HS, MIQC-90-HT (76908)

IS_MIQ_0003.eps (80274)

hot-dip galvanised (HDG) heavy-duty connectors to connect two MIQ girders

Weight: 1.73 kg
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Set: Yes

Choose options

Pack size

4 pc

Product options

Quantity

Packs

Total Pieces

4

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

KWD 32.500

KWD 32.500 / 1 each

Technical Data

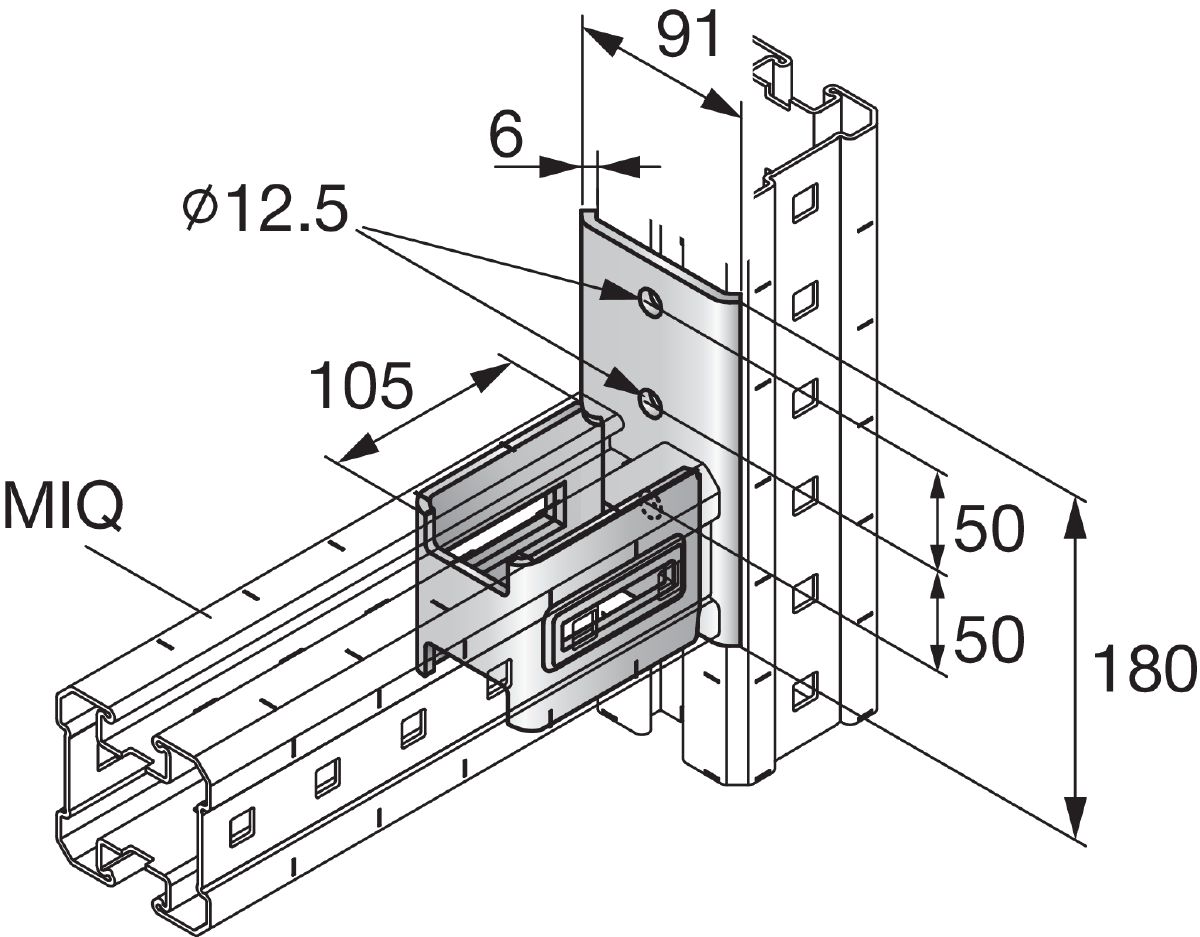

IS_MIQ_0003.eps (80274)

Weight

1.73 kg

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Set

Yes

Tightening torque

84 Nm

Wrench size

19 mm

Documents

Features & Applications

Features

No welding required – for faster, more efficient installation
Seamless positioning and adjustability along the girder
Designed for fast, one-person installation
heavy-duty connections designed to carry high loads

Applications

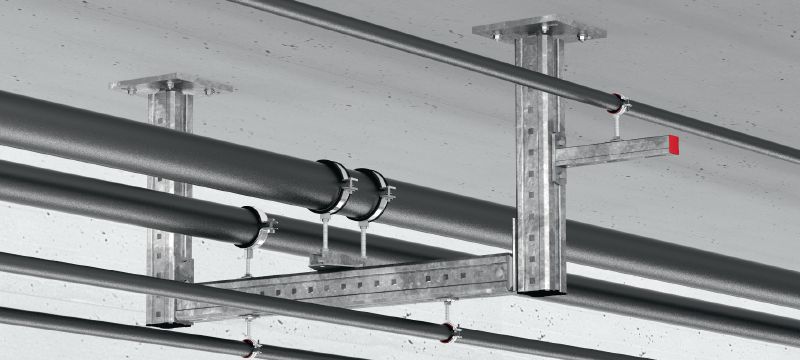

Part of a modular system for supporting cable trays, pipes and other installations
heavy-duty cross-beam connections with MIQ-90 girders
heavy-duty goalposts and U-frames
