MM-R-16-36

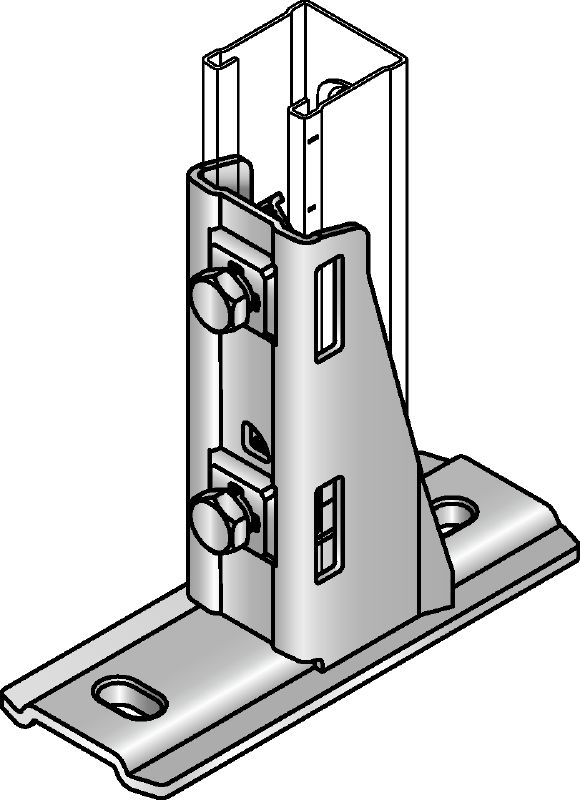

Rail support MM-R-16-36 #418762
Galvanised channel foot for fastening MM channels to various base materials
- Product class: Ultimate
- Tightening torque: 12 Nm
- Thread connection - M: M8
ultimate
Customers also searched for rail supports, brackets, connecting channel to concrete, fastening channel to floors or installation channel.
Choose options
Thread connection - M
- M8
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
Technical Data
Product class
Ultimate
Tightening torque
12 Nm
Thread connection - M
M8
Material composition
Material: DC04 - DIN EN 10130, Plate: DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Wrench size
13 mm
Weight
424 g
Documents
Features & Applications
Features
- Preassembled – for quicker installation and to help avoid losing parts
- Designed to be reliable and easy to use
- Elongated holes allow easy adjustment to the correct position
- Flexibility – complete many different applications using few parts
Applications

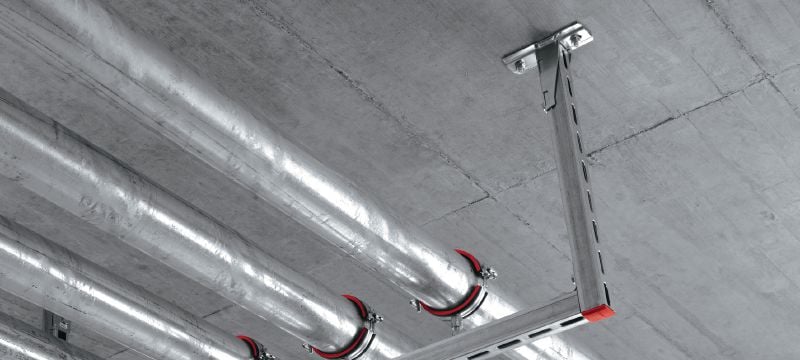

- Fastening MM installation channels to any base material
- Assembling channel frames and support structures
