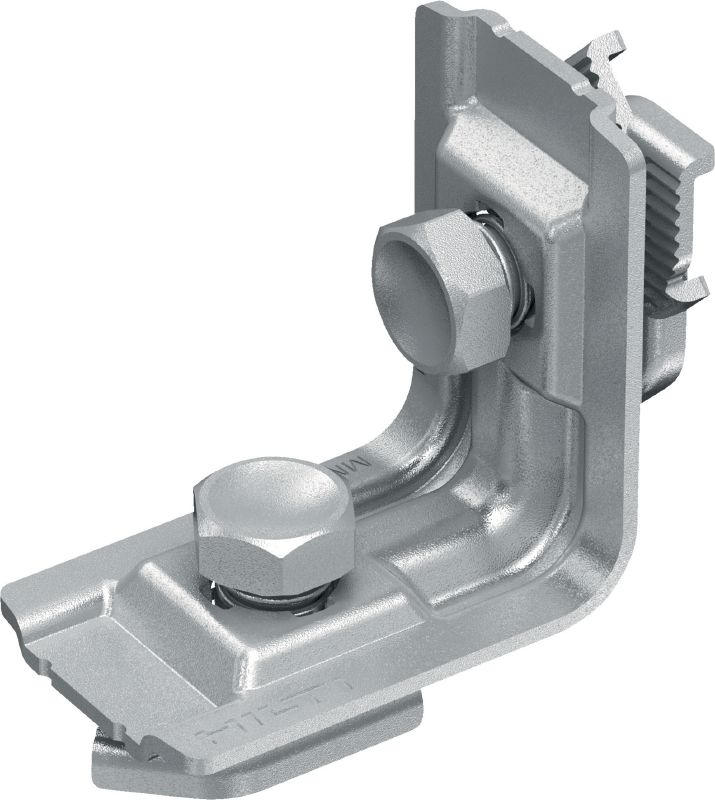

MM-A-90 Angle connector
Angle MM-A-90 #418757
Galvanised 90-degree pre-assembled angle for connecting multiple MM strut channels.
- Product class: Ultimate
- Tightening torque: 12 Nm
- Thread connection - M: M8
ultimate
Customers also searched for 90 degree connector, metal connectors, connectors, metal connectors or installation channel.
Choose options
Thread connection - M
- M8
Pack size
- 20 pc
Quantity
Packs
Total Pieces
20
Discounted net
KWD 2.899
KWD 2.900
/
1 each
Technical Data
Product class
Ultimate
Tightening torque
12 Nm
Thread connection - M
M8
Material composition
DC04 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Wrench size
13 mm
Weight
84 g
Documents
pdf Load data MM-A(H)-90 / MM-C, English, German [ 73.2 KB ]
Features & Applications
Features
- Pre-assembled – for quicker installation and to help avoid losing parts.
- Adjustable – easily fit and repositioned along strut channels.
Applications

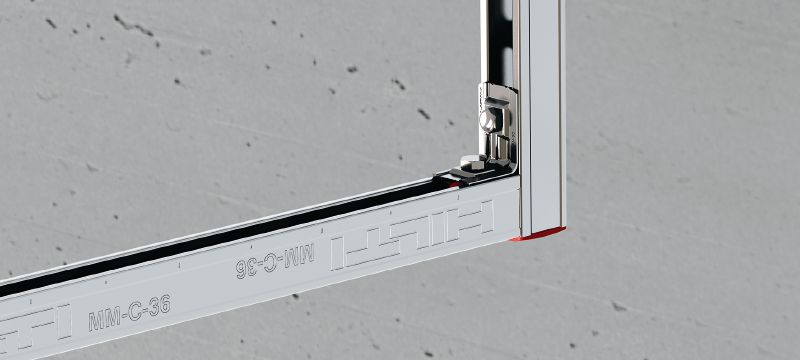

- Fastening channels at 90-degree angles.
- Recommended for use in dry, interior environments.
- Assembling channel frames and support structures.
- For installing structures
