MM-AH-90
Angle MM-AH-90 #418758

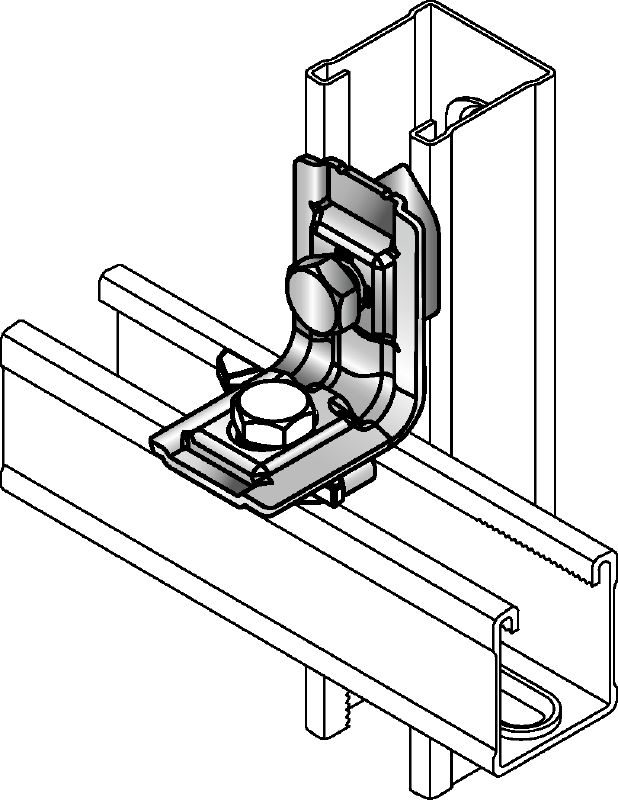

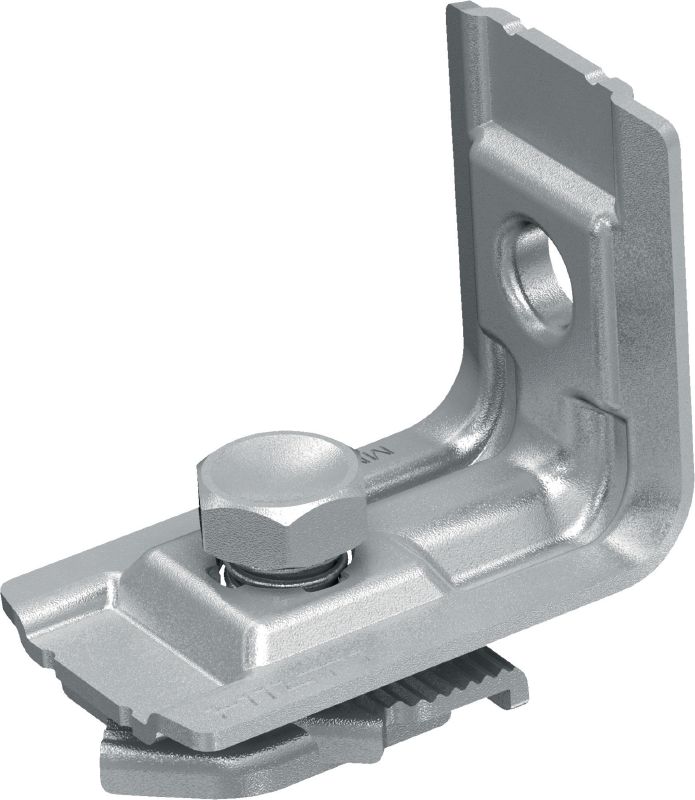

Galvanised 90-degree angle for connecting multiple MM strut channels
- Product class: Premium
- Tightening torque: 12 Nm
- Thread connection - M: M8
premium
Choose options
Thread connection - M
- M8
Pack size
- 20 pc
Quantity
Packs
Total Pieces
20
Discounted net
Technical Data
Product class
Premium
Tightening torque
12 Nm
Thread connection - M
M8
Material composition
DC04 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Wrench size
13 mm
Weight
63 g
Documents
Features & Applications
Features
- Partially preassembled – for quicker and flexible installation and to help avoid losing parts
- Adjustable – easily fit and repositioned along strut channels
Applications
- Fastening channels at 90 degree angles
- Recommended for use in dry, interior environments

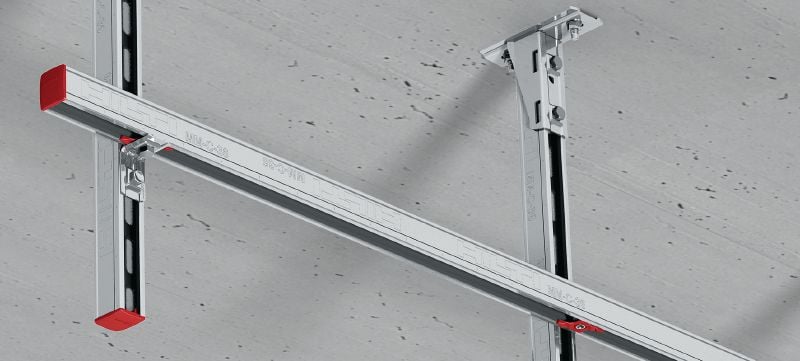

- Assembling channel frames and support structures
