MM-T-16-36
Beam clamp MM-T-16-36 #418763

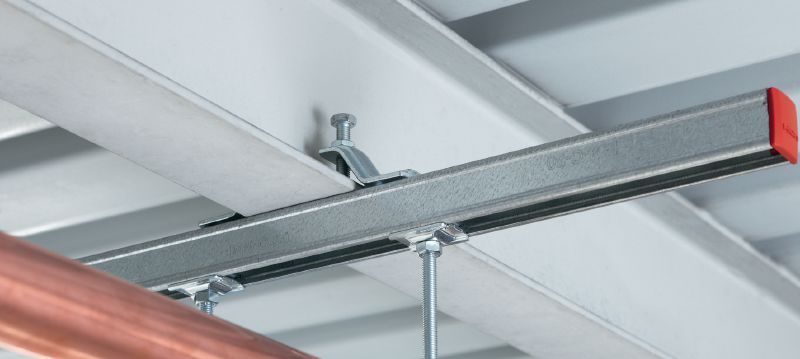

Galvanised beam clamp for connecting MM strut channels directly to steel beams
- Wrench size: 13 mm
- Material composition: EN-GJMB-550-4 - DIN EN 1562
- Surface finish: Galvanized
Customers also searched for beam clamps, U clamps, suspending channel off steel beams, hanging channel off beams or metal connectors.
Choose options
Thread connection - M
- M8
Pack size
- 20 pc
Quantity
Packs
Total Pieces
20
Discounted net
Technical Data
Wrench size
13 mm
Material composition
EN-GJMB-550-4 - DIN EN 1562
Surface finish
Galvanized
Weight
112 g
Documents
Features & Applications
Features
- Easy alignment in the right position
- Faster installation on steel beams – no drilling or welding needed
Applications

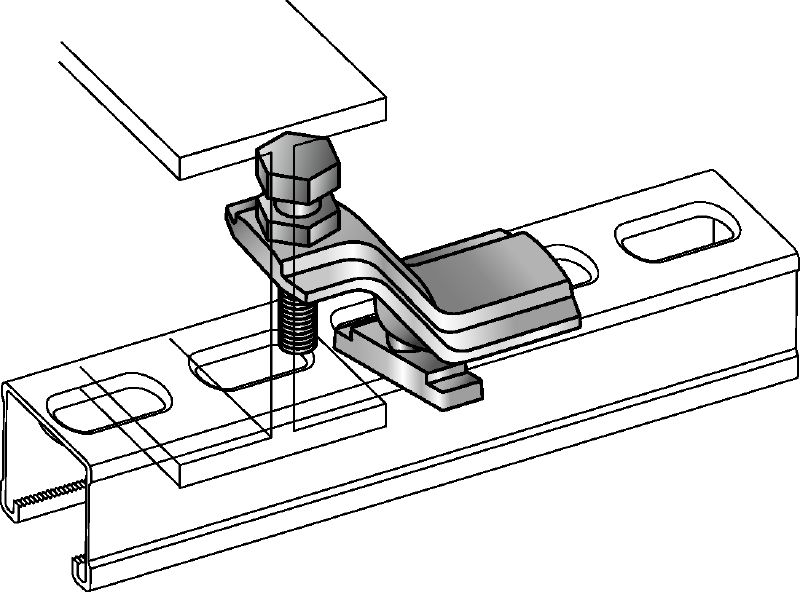

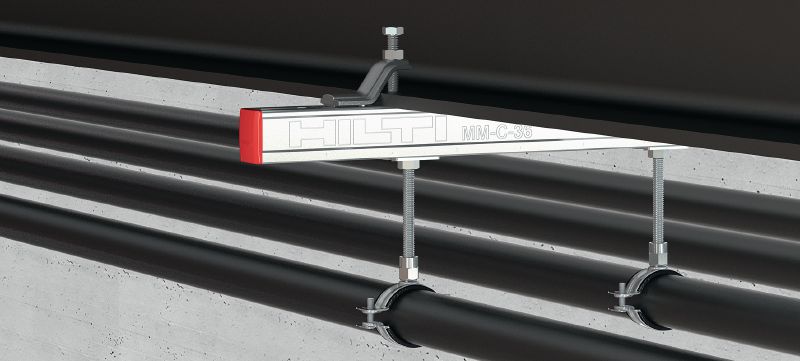

- Fastening all three types of MM channel profiles to steel beams
- The beam clamp set fits all common T-beams (max. clamping thickness 23mm)
- Recommended for use in dry, interior environments
