MM-WN

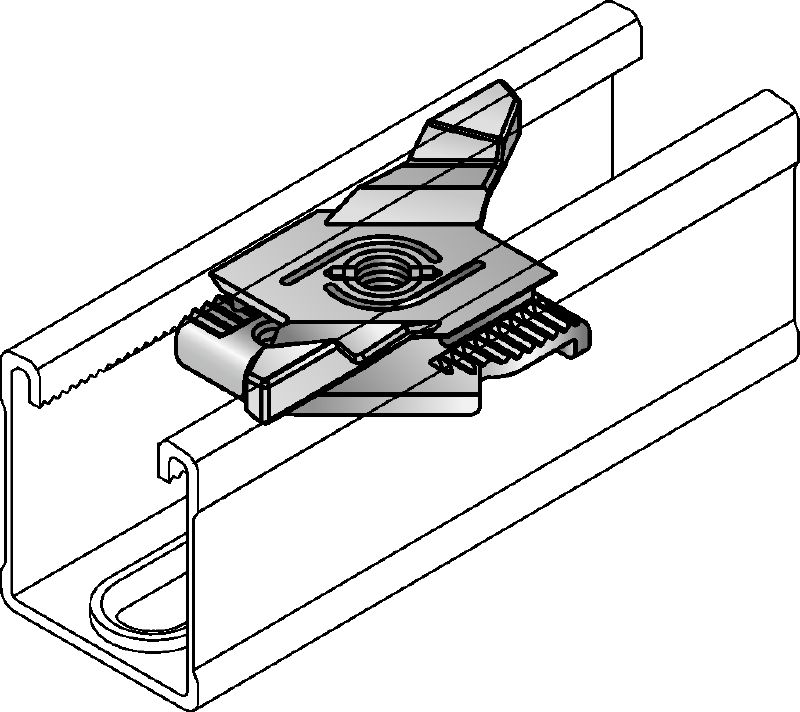

Galvanised wing nut for connecting modular support system components to MM strut channels
- Product class: Premium
- Material composition: Nut: DC04 - DIN EN 10130, Wing: PA
- Surface finish: Indoor Coated - Electro galvanised
premium
Customers also searched for fastening bolts to channel, fastening threaded rod to channel, wing nut, fastening connectors or installation channel.
Choose options
Thread connection - M
- M6
- M8
- M10
Pack size
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From KWD 0.465
Technical Data
Product class
Premium
Material composition
Nut: DC04 - DIN EN 10130, Wing: PA
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features

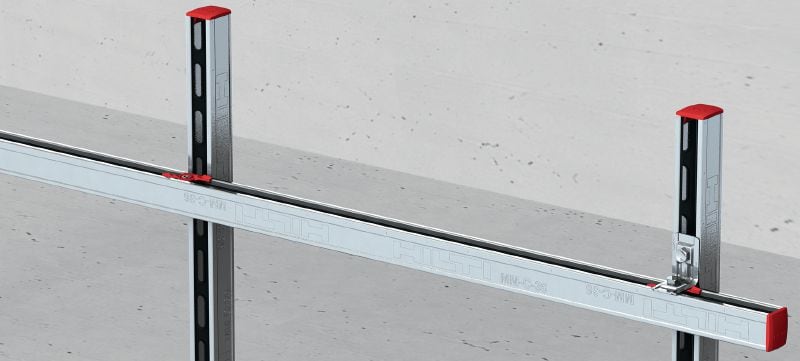

- Quick connection of modular support system components to the open side of MM strut channel
- Flexible wings – for quicker installation and positioning within MM strut channel openings
- Serrated surfaces – for quicker, more accurate adjustment
- Wing nut is flush mounted
- Easy to handle
Applications
- Fastening pipes and air ducts
- Fastening cable trays and cable baskets
For approval or certificate information, please see individual items.
