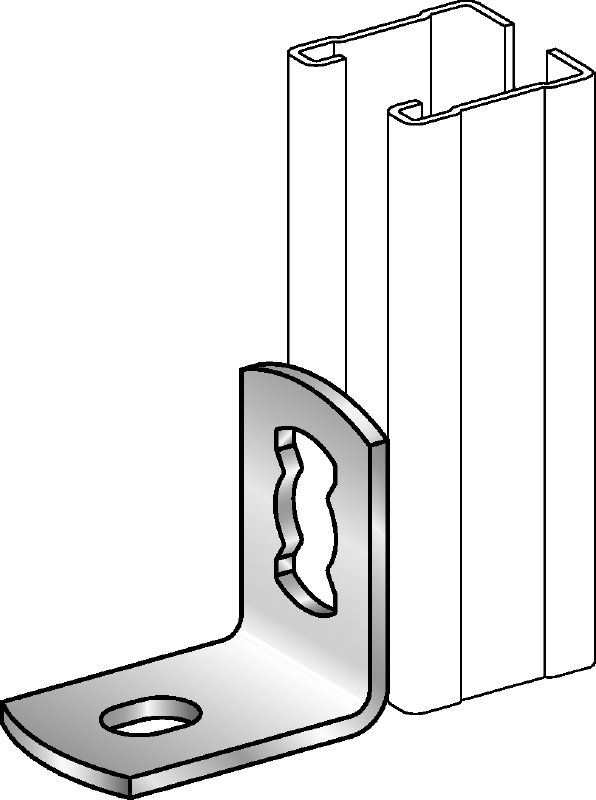

MQP-1 Channel foot
Galvanised channel foot for fastening channels to concrete in light/medium-duty applications
- Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: 4 mm
Customers also searched for rail supports, connecting channel to concrete floors, glavanised connectors, connectors or metal connectors.
Choose options
Pack size
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Flexibility – complete many different applications using few parts
- Compatible with MQN-C push button channel connectors – for much faster, adaptable assembly
Applications
- Connecting strut channels to various base materials
For approval or certificate information, please see individual items.
