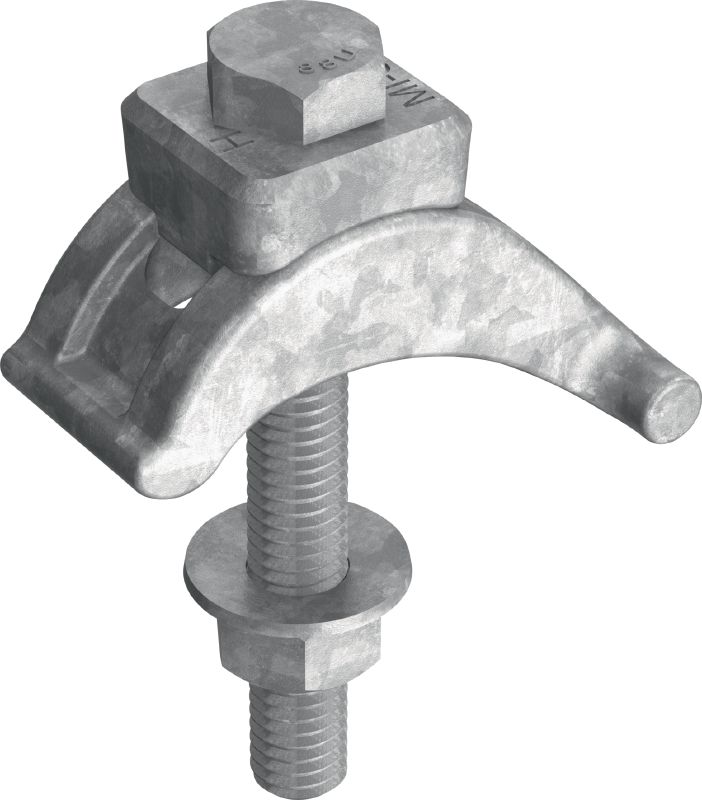

MT-BC-GU M12 OC Beam clamp (formerly MI-SGC)

Beam clamp MI-SGC M12 #233859

LCG002322_HDG_v1 (203023)
19905.tif
LCG000948.tiff
IS_HNA_315.eps

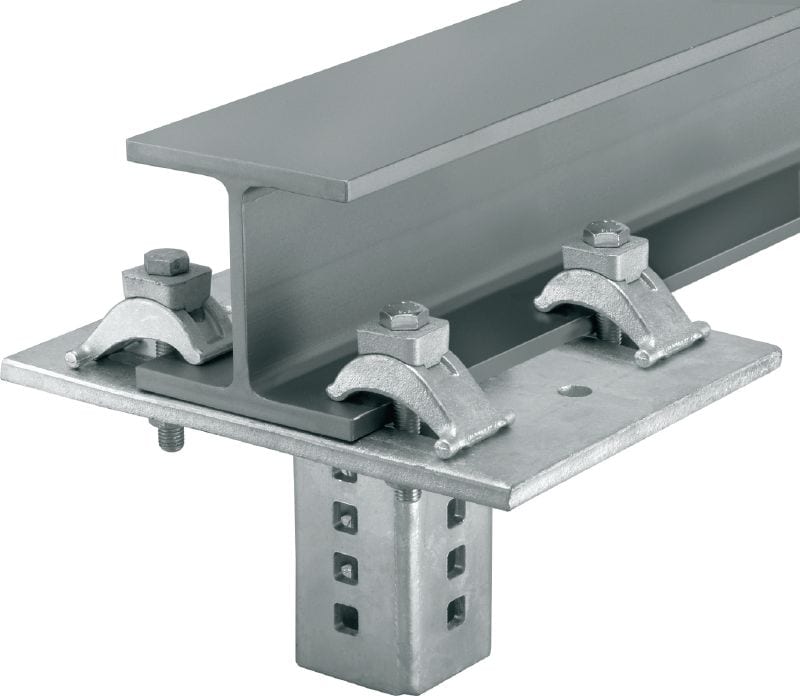

Hot-dip galvanised (HDG) single beam clamp for connecting MT base connectors to steel beams

  • Thread connection - M: M12
  • Weight: 0.36 kg
  • Material composition: Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-6 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel

Choose options

Pack size
  • 16 pc
 Product options
Quantity
Packs
Total Pieces
16
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
KWD 57.720
KWD 14.430
/
1 each

Technical Data

Thread connection - M
M12
Weight
0.36 kg
Material composition
Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-6 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish
HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm
Width - B
30 mm

Documents

pdf Corrosion handbook, English [ 9.4 MB ]

Features & Applications

Features

  • Can be used with steel beams with a maximum flange thickness of 40 mm (with base plate thickness of up to 12 mm) and 36 mm (with base plate thickness of up to 16 mm).
  • Corrosion protection on the steel beam is not damaged by the beam clamp
  • Equipped with a set of vibration-resistant washers

Applications

  • Compatible with steel beams with flange thicknesses from 3-36 mm and angles of up to 15°
  • Recommended for use in moderately corrosive outdoor and indoor environments.
