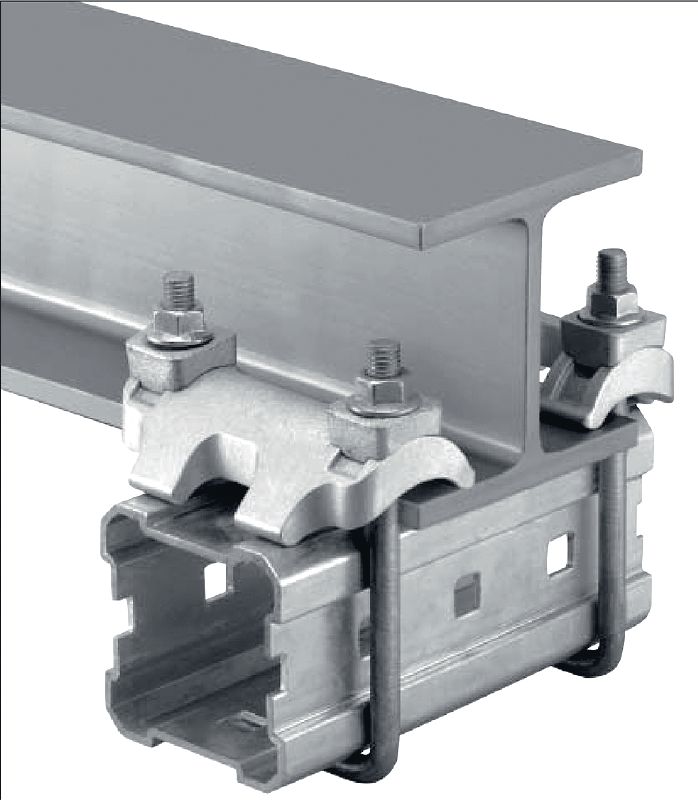

MI-DGC Beam clamp
Hot-dip galvanised (HDG) double beam clamp for connecting MI girders to steel beams for heavy-duty applications
- Material composition: Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMB-450-6 - DIN EN 1562; U-bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt 48 µm - DIN EN ISO 10684; Nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Customers also searched for beam clamps, U clamps, suspending girders off steel beams, hanging channel off beams or metal connectors.
Choose options
Modular Girder Type
- 90
- 120
Pack size
- 4 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Material composition
Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMB-450-6 - DIN EN 1562; U-bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt 48 µm - DIN EN ISO 10684; Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Documents
pdf Corrosion handbook, English [ 9.6 MB ]
Features & Applications
Features
- Beam clamp is equipped with self-locking nuts
- Corrosion protection on the steel beam is not damaged by the beam clamp
- Beam clamp is equipped with self-locking nuts
Applications

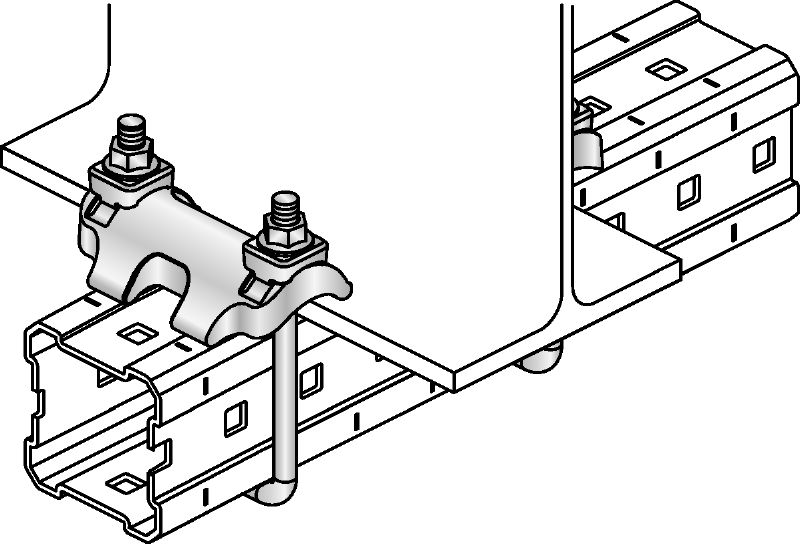

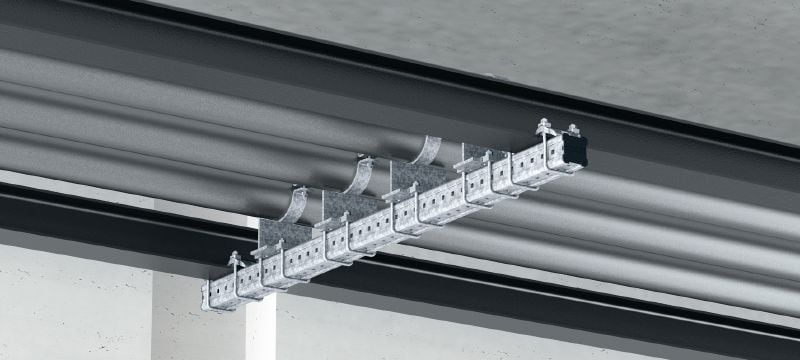

- MI beam clamp for direct connection of MI girder to steel beam
For approval or certificate information, please see individual items.
