MIC-MI/MQ-X
Connector MIC-MI/MQ-X #304881

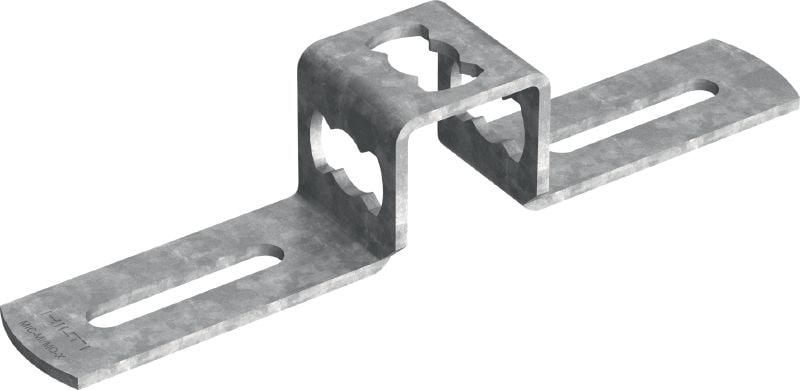

Hot-dip galvanised (HDG) connector for fastening MQ strut channels perpendicular to MI girders
- Weight: 0.36 kg
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 40 µm - DIN EN ISO 10684
Choose options
Modular Girder Type
- 90, 120
Pack size
- 16 pc
Quantity
Packs
Total Pieces
16
Discounted net
Technical Data
Weight
0.36 kg
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 40 µm - DIN EN ISO 10684
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
50 Nm
Documents
Features & Applications
Features
- Allows direct connection to MQ strut channels
- Keyed hold for optimum transmission of forces and moments
- Forces and moments are transmitted reliably through positive engagement
Applications

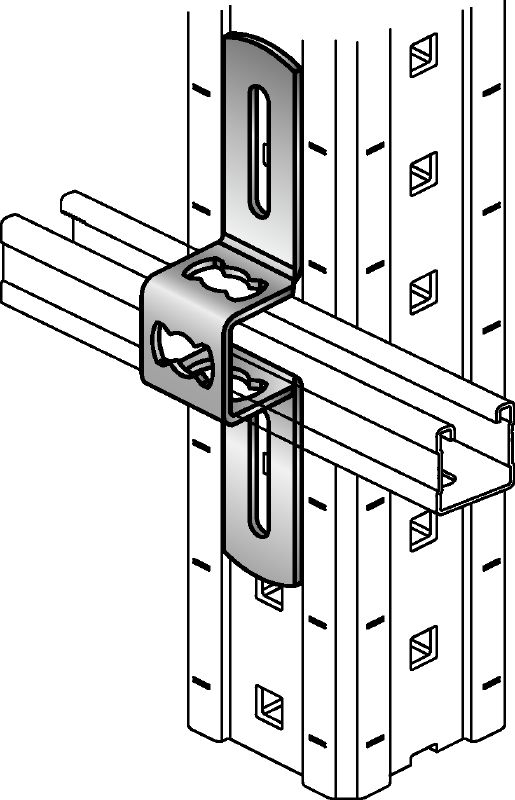

- Direct connection of MQ installation channels to the MI system
- Applications in the chemical, pharma and petrochemical industries or in incineration plants and power stations

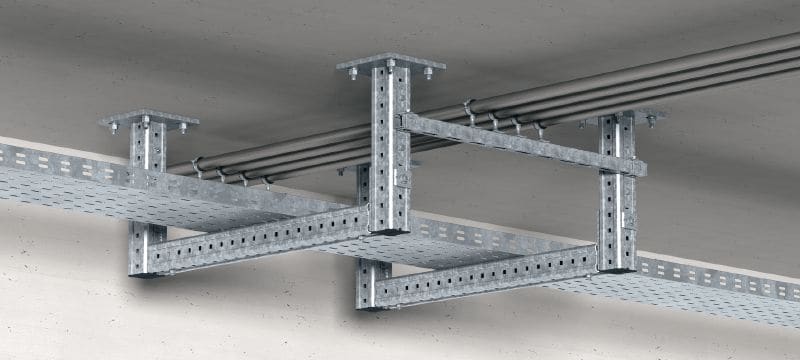

- Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
