Baseplater DIN 9021 M16 zinced

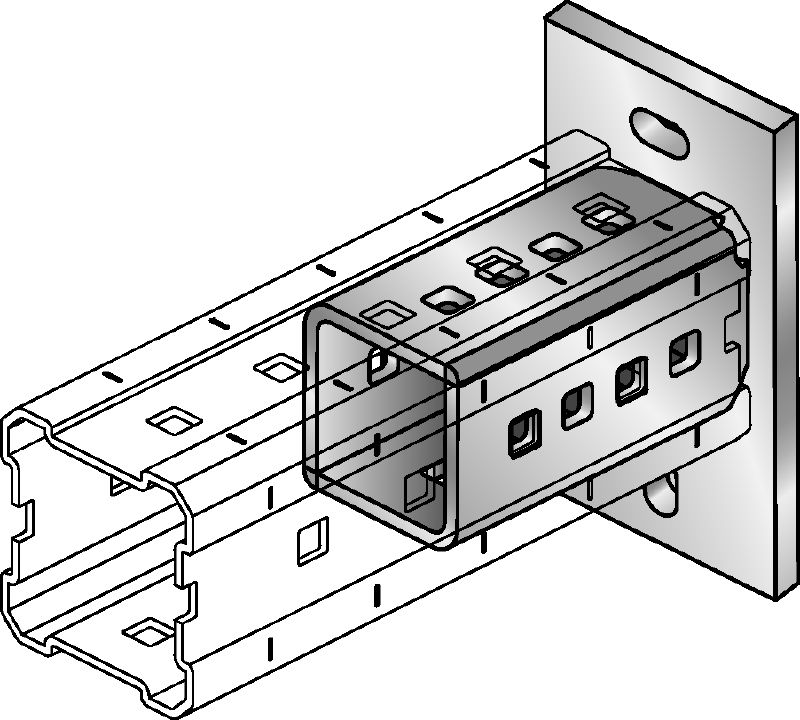

Hot-dip galvanised (HDG) baseplate for fastening MI-90 girders to concrete using two anchors

Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Customers also searched for 3d channel systems, connecting girders, cable tray installations, piping installations or metal connectors.

Choose options

Modular Girder Type

Pack size

2 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From KWD 122.460

Technical Data

Material composition

Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8

Surface finish

HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Tightening torque

84 Nm

Wrench size

19 mm

Documents

Features & Applications

Features

Provides a strong and rigid connection
Concrete connector base plates can be fastened using a variety of Hilti anchors
Adjustable and flexible – for easier, more efficient installation
Designed for fast, one-person installation and extension
No welding required – work faster and, where possible, without hot work permits

Applications

Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
Industrial and heavy commercial applications, eliminating the need for welding
Fastening to concrete walls, floors or ceilings
Fastening to concrete walls, floors or ceilings

For approval or certificate information, please see individual items.
