MIC-S Connector

Connector MIC-S90-AA steel #304811

LCG002369_HDG_v1 (202992)
IS_HNA_311_o.eps
LCG001007.tiff
LCG001029.tiff
MIC_TechnDrawing_00304811.eps

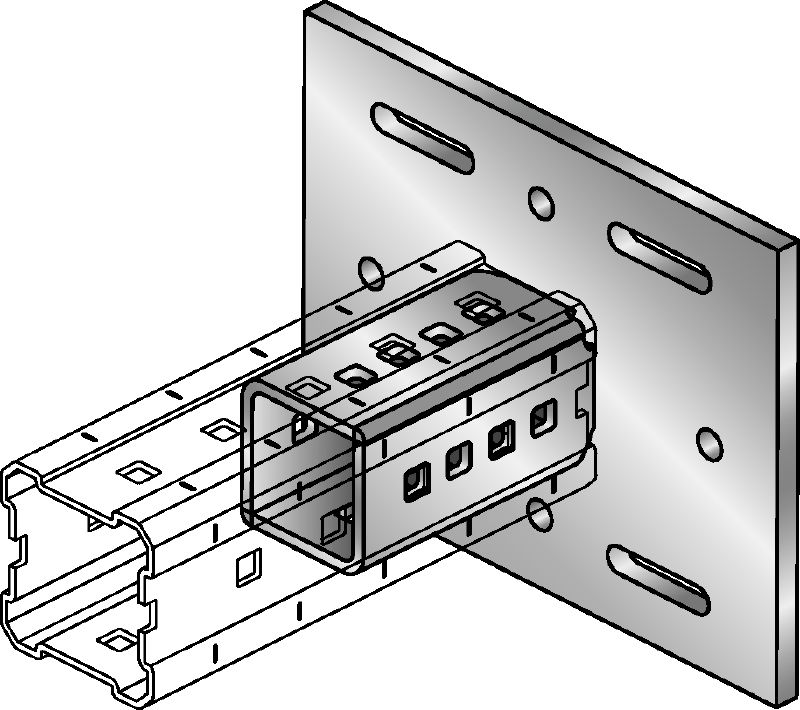

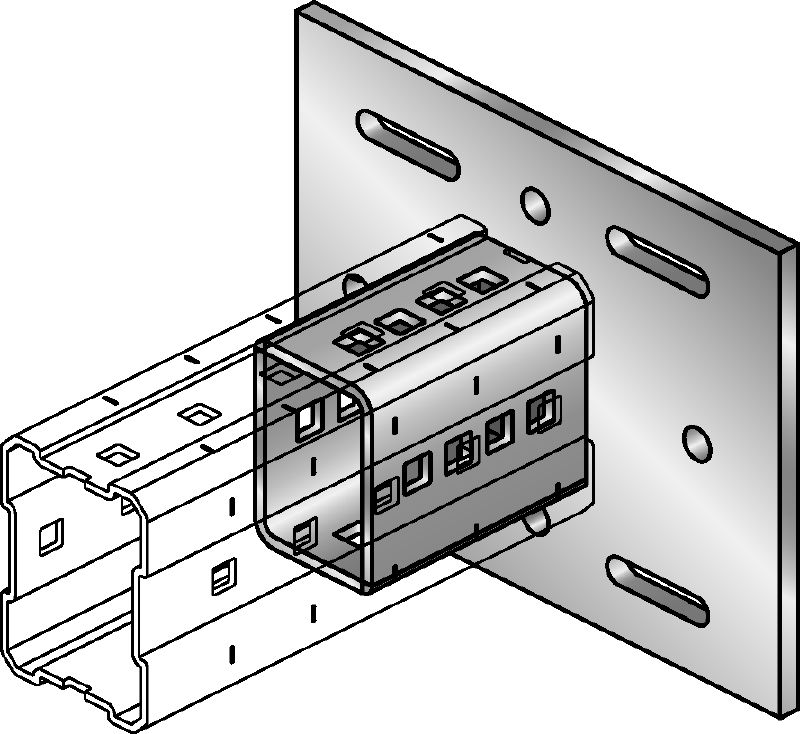

Connector for attaching modular girders to structural steel beams

  • Weight: 4.37 kg
  • Material composition: Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461

Choose options

Modular Girder Type
  • 90
Pack size
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Weight
4.37 kg
Material composition
Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Width - B
100 mm
X
100 mm
Y
170 mm

Documents

pdf Corrosion handbook, English [ 9.4 MB ]

Features & Applications

Features

  • Provides a strong and rigid connection
  • Designed to cover a large range of standard flange widths
  • Adjustable and flexible – for easier, more efficient installation
  • Can be easily connected to steel using beam clamps (not included)
  • All parts are reusable

Applications

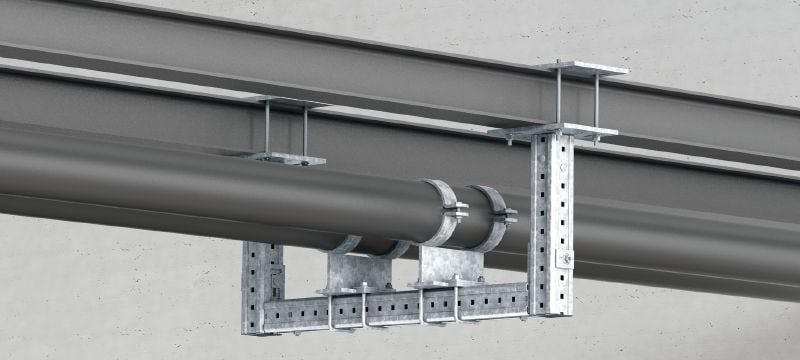

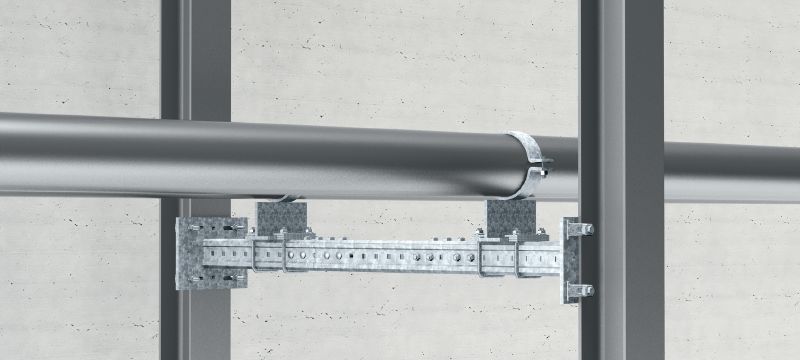

  • Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
  • Provides easy-to-install, adjustable, flexible solutions for industrial and heavy commercial applications
  • Fastening to standard steel beams without drilling or welding
