MQ3D-F

Configurator
Technical Data
Features & Applications
Related Products

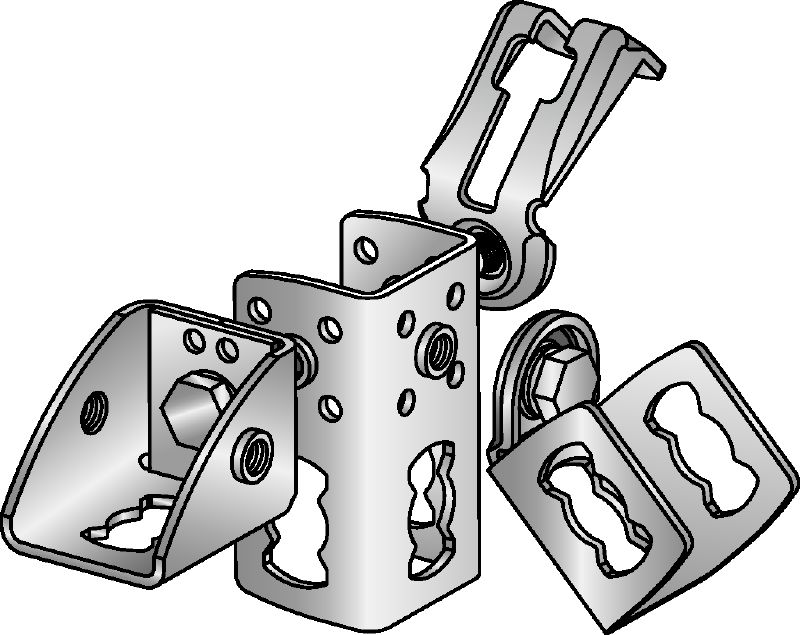

Still life 3D main product

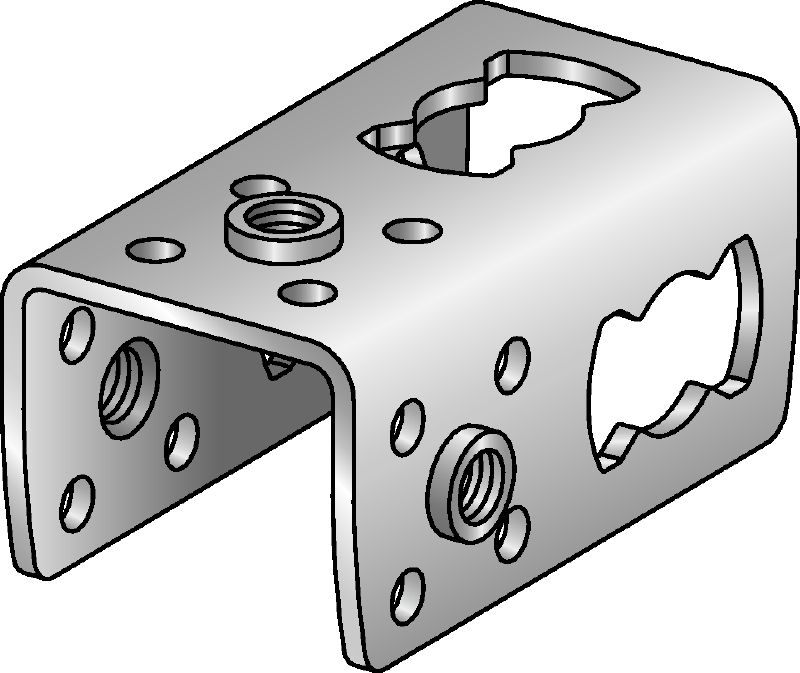

IS_HNA_206_o.eps
IS_HNA_207_o.eps

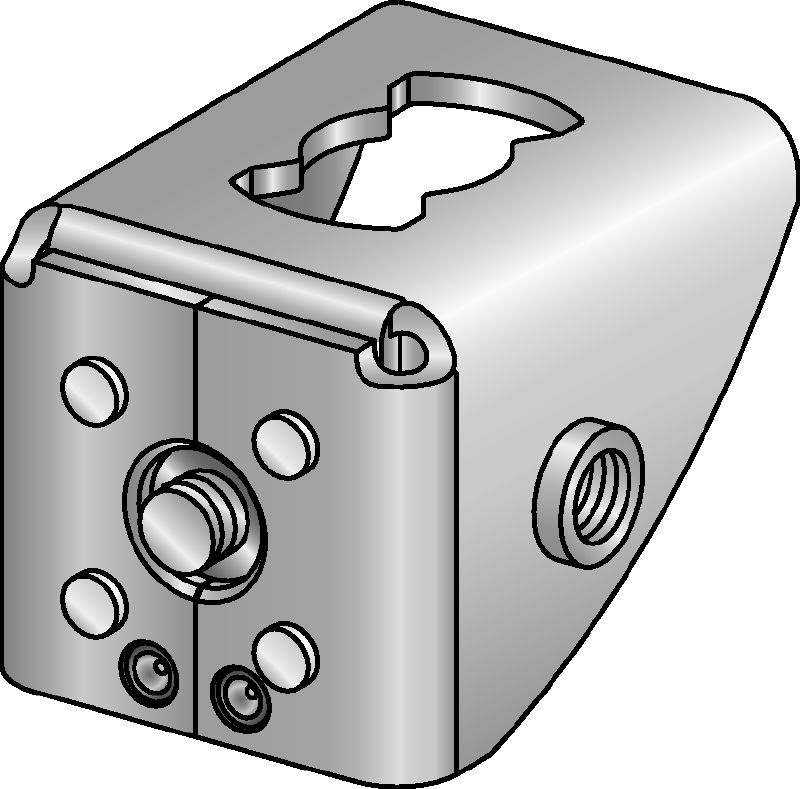

IS_HNA_208_o.eps
IS_HNA_209_o.eps

Hot-dip galvanised (HDG) elements for assembling 3D structures on site

  • Wrench size: 17 mm
  • Tightening torque: 40 Nm
  • Surface finish: Outdoor Coated - HDG

Choose options

Angle
  • 45 °
Thread connection - M
  • M10
Pack size
  • 16 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Wrench size
17 mm
Tightening torque
40 Nm
Surface finish
Outdoor Coated - HDG
Material thickness
3 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Features & Applications

Features

  • Universal – complete many different applications using few parts
  • Designed for quicker, easier assembly and installation

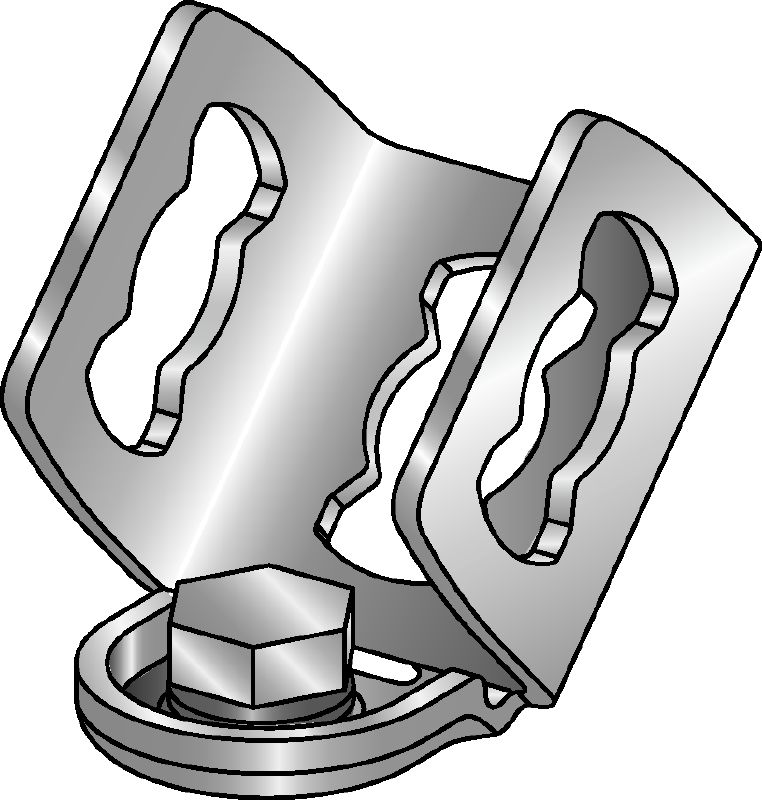

  • 45-degree angle and bracing with predetermined bending point, +/- 15 degree adjustment
  • For installation of angles or connectors on site
  • Angle brackets or connectors can be installed on site

Applications

  • Assembling 3D structures on site
  • Bracing and stiffening complex strut channel assemblies
  • Installing three-dimensional support frames

For approval or certificate information, please see individual items.
