MQV-3D-F Channel connector

Configurator
Technical Data
Documents
Features & Applications
Related Products

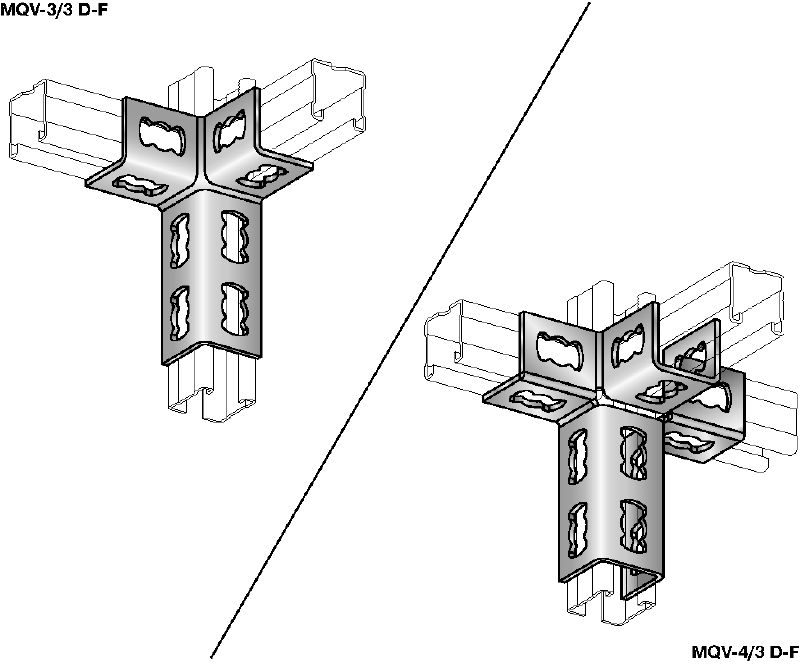

IS_MQV-3D-F-Collage_r2934_0001 (195402)

Hot-dip galvanised (HDG) channel connector for three-dimensional structures

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Customers also searched for connecting channels, installing metal channels, hot dipped glavanised connectors, HDG connectors or metal connectors.

Choose options

Angle
  • 90 °
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Angle
90 °

Documents

pdf Operating Instruction MQV-3/3 D, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 562.6 KB ]
pdf Operating Instruction MQV-4/3 D, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 725.3 KB ]

Features & Applications

Features

  • Three-dimensional connector – engineered for high load capacity
  • Adjustable – easily fitted and repositioned along strut channels
  • Universal – complete many different applications using few parts
  • Compatible with push button channel connectors – for much faster, adaptable assembly
  • Three dimensional

Applications

  • Connector for 3D channel design
  • Compatible with multiple MQ strut channels

For approval or certificate information, please see individual items.
