MQW 45°/135°-F

Configurator
Technical Data
Features & Applications
Related Products
IS_HNA_215_o.eps
IS_HNA_0103_o.eps
MQW-2/45
MQW-3/135

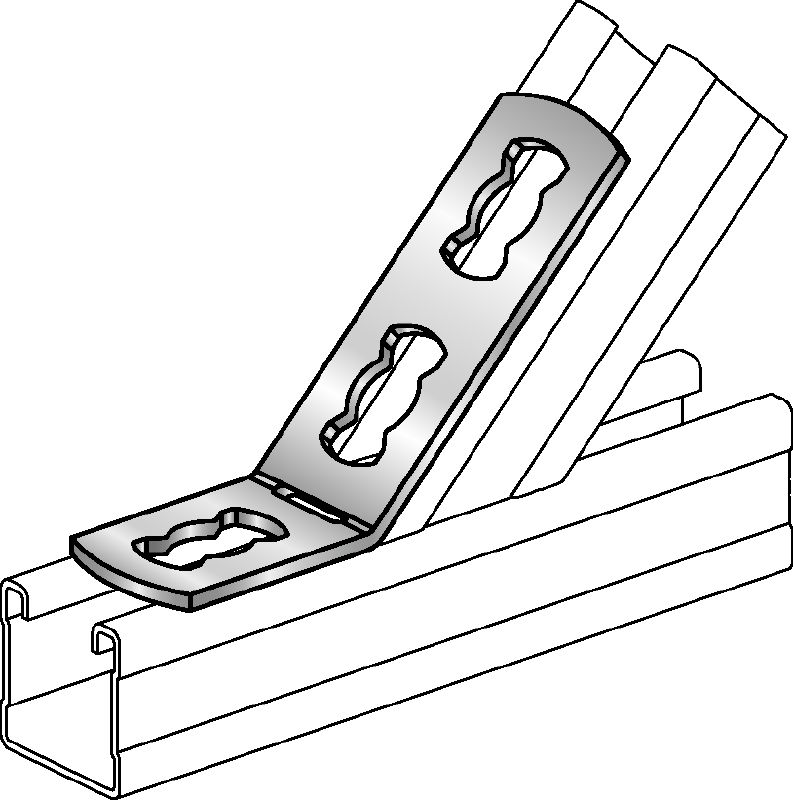

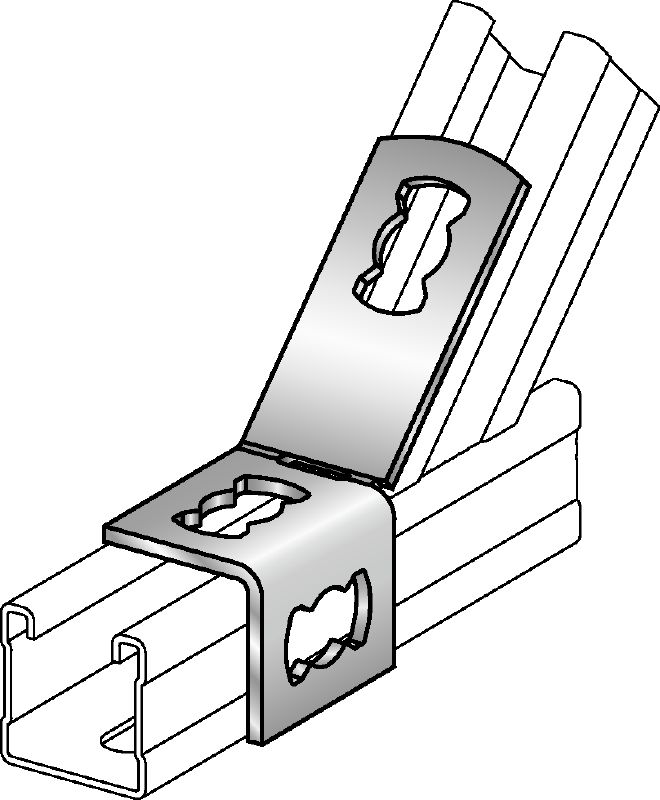

Hot-dip galvanised (HDG) 45- or 135-degree angle for connecting multiple MQ strut channels

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Customers also searched for connecting channels, connectors, 8 hole connector, metal connectors or installation channel.

Choose options

Angle
  • 45 °
Number of holes
  • 2
  • 3
  • 8
Pack size
  • 10 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From KWD 10.140

Technical Data

Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Angle
45 °

Features & Applications

Features

  • Compatible with push button channel connectors – for much faster, adaptable assembly
  • Adjustable – easily fit and repositioned along strut channels
  • Compatible with MQN-C HDG Plus push button channel connectors – for much faster, adaptable assembly
  • Universal: few parts for all applications
  • The MQN-F pushbutton can be prefitted

Applications

  • Assembling channel frames and support structures
  • Compatible with multiple MQ strut channels

For approval or certificate information, please see individual items.
