MQT-82-124
Beam clamp
IS_HNA_102_o.eps

Galvanised beam clamp for connecting MQ strut channels directly to steel beams

  • Material composition: Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Customers also searched for beam clamps, U clamps, glavanised connectors, HDG connectors or metal connectors.

Choose options

Thread connection - M
  • M8
  • M10
  • M12
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From KWD 72.280

Technical Data

Material composition
Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Technical information
Documentation
Operating Instruction
pdf Engineering Centre Whitepaper - FoS Studs and Beam Clamps (EN), English [ 762.1 KB ]

Features & Applications

Features

  • Easier installation and positioning of strut channels
  • The attachment fits all standard beams (max. clamping thickness = 23 mm)
  • Quick installation
  • Easy readjustment possible

Applications

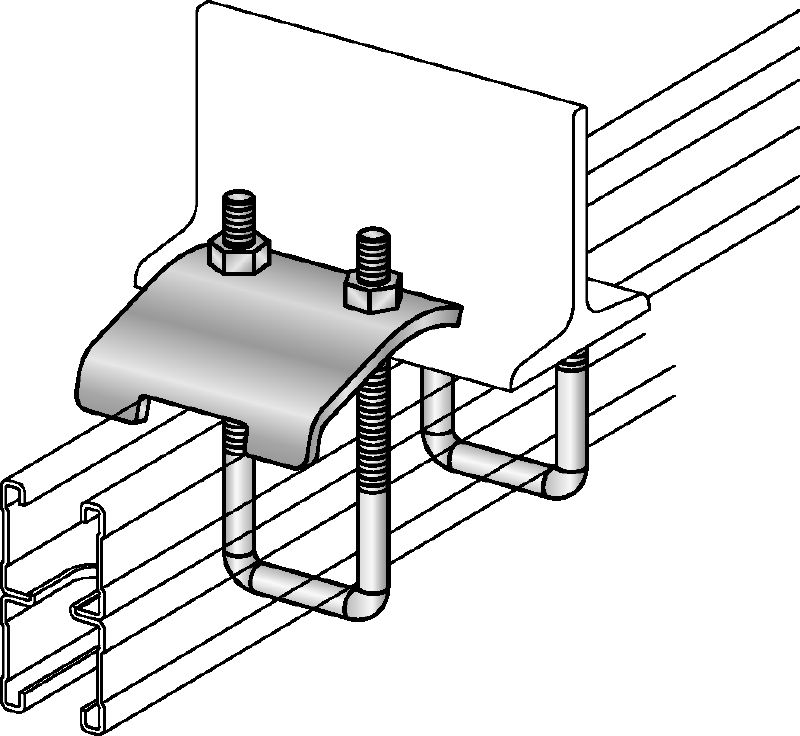

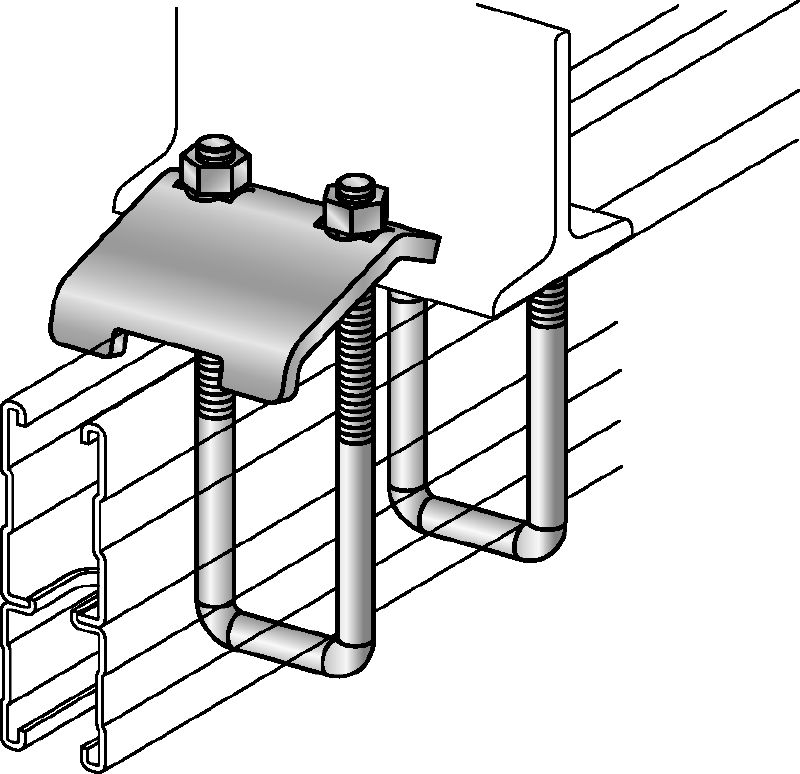

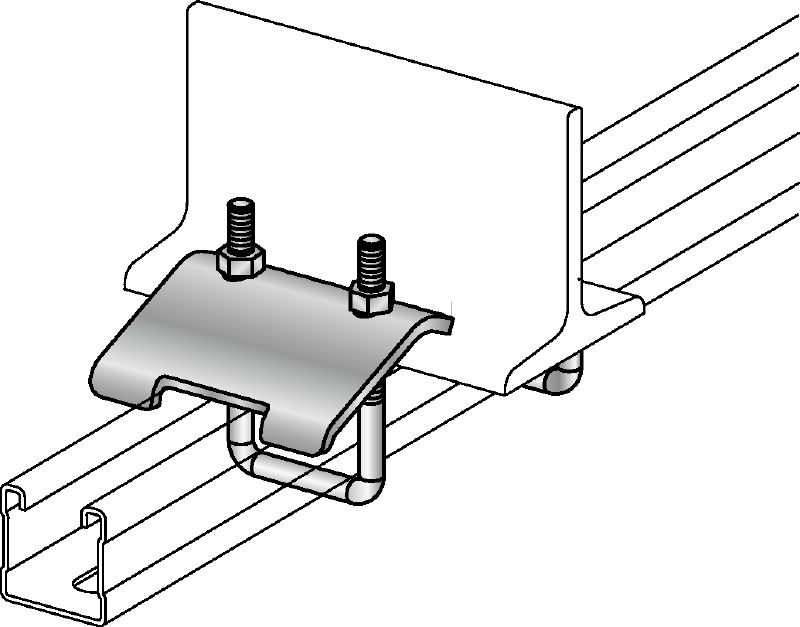

  • For fastening MQ channels to steel beams without drilling or welding (use only in pairs!)

For approval or certificate information, please see individual items.
