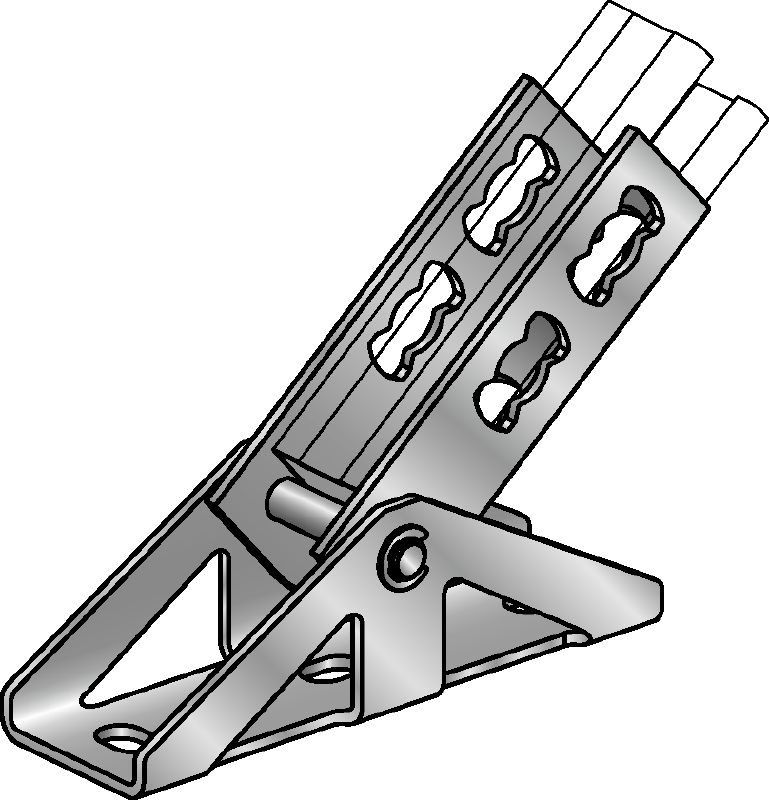

MQP Swivel base
Rail support MQP-G #369654
Galvanized pivoting base for fastening strut channels to concrete
- Material composition: S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: 4 mm
Customers also searched for rail supports, installation supports, glavanised connectors, connectors or metal connectors.
Choose options
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
KWD 50.050
KWD 25.020 / 1 each
Technical Data
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
1204 g
Documents
Features & Applications
Features
- Flexibility – complete many different applications using few parts
- Easier and more secure attachment at angles below 45 degrees
Applications
- Connecting strut channels to various base materials
- Pivoting connections between MQ strut channels and concrete
- Recommended for use in dry, interior environments
