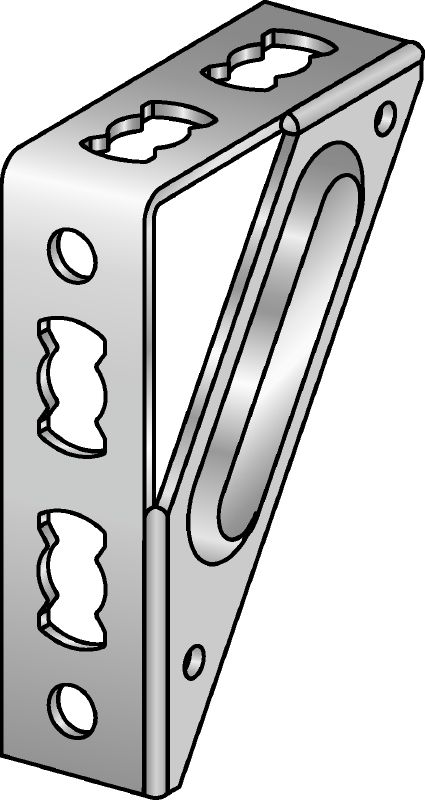

MQW-S Angle bracket

Angle bracket MQW-S/2 #369665

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_HNA_216_o.eps
eps-file
IS_ME_216.eps

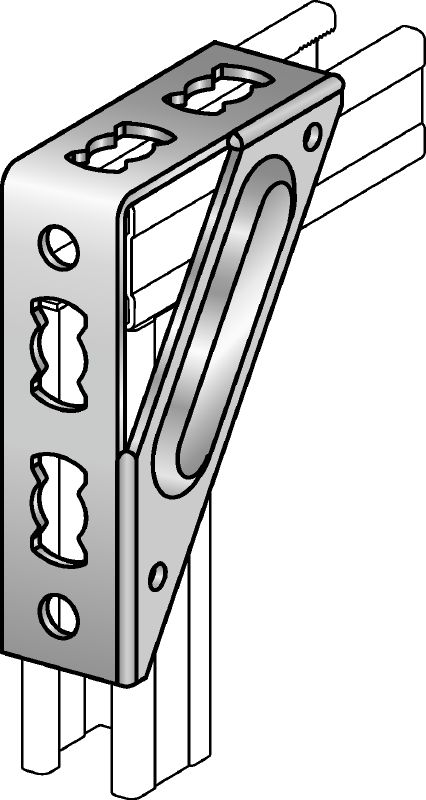

Galvanised 90-degree heavy angle for connecting multiple MQ strut channels in medium/heavy-duty applications

  • Approvals: ETA
  • Material composition: DD11 MOD – HN 555-4, S235JR – EN10025-2
  • Surface finish: Indoor Coated - Electro galvanised

Choose options

Angle
  • 90 °
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Approvals
ETA
Material composition
DD11 MOD – HN 555-4, S235JR – EN10025-2
Surface finish
Indoor Coated - Electro galvanised
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Angle
90 °
Weight
1190 g

Documents

Approval document
Documentation
Operating Instruction
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]

Features & Applications

Features

  • Compatible with push button channel connectors – for much faster, adaptable assembly
  • Adjustable – easily fit and repositioned along strut channels
  • Compatible with MQN-C push button channel connectors – for much faster, adaptable assembly
  • Universal: few parts for all applications
  • Easy to use

Applications

  • Assembling channels for heavy load frames and support structures
  • Compatible with multiple MQ strut channels
  • Recommended for use in dry, interior environments
  • Attaching Hilti channels to walls, floors and ceilings
  • Compatible with all Hilti channels
