new

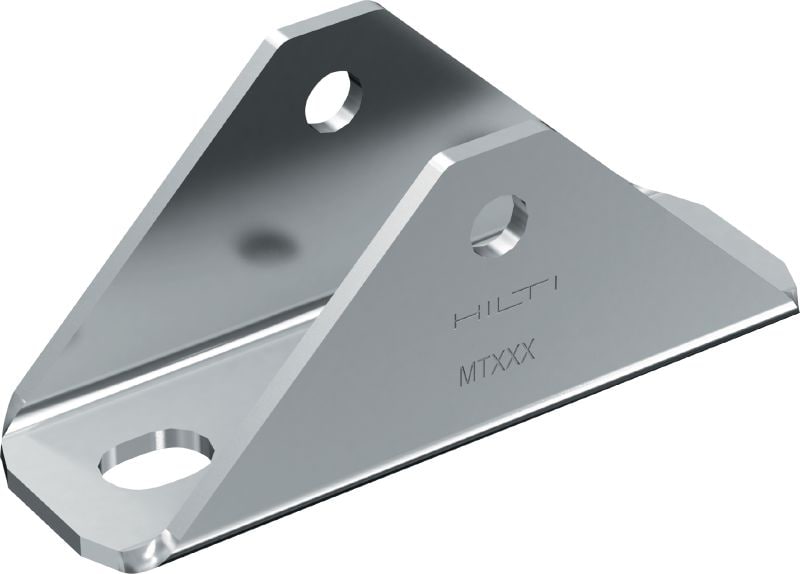

MT-AB A Adjustable brace fitting
Angle Connector MT-AB A #2272111
Adjustable brace for anchoring bracing of MT-40 and MT-50 strut channel structures to concrete
- Material composition: Q235 or better steel
- Surface finish: Pre-galvanized - for dry indoor use only
- Material thickness: 4 mm
Choose options
Pack size
- 12 pc
Quantity
Packs
Total Pieces
12
Discounted net
KWD 3.672
KWD 3.670 / 1 each
Technical Data
Material composition
Q235 or better steel
Surface finish
Pre-galvanized - for dry indoor use only
Material thickness
4 mm
Weight
0.44 kg
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Adaptable – unlike welding, modular strut channel framing can be modified for future MEP requirements
- Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions
- Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
- Engineering and calculation service available – your local Hilti Engineers can provide advice and calculation services on more complex projects
Applications
- Fastening MT strut channel to concrete floors, walls or ceilings with a pivoting connection
- Fastening MT strut channel to structural steel with a pivoting connection
- Creating a pivoting connection between two MT strut channels
- Lateral bracing of lightweight metal framing and MEP support structures
- Suitable for use in dry, indoor environments
