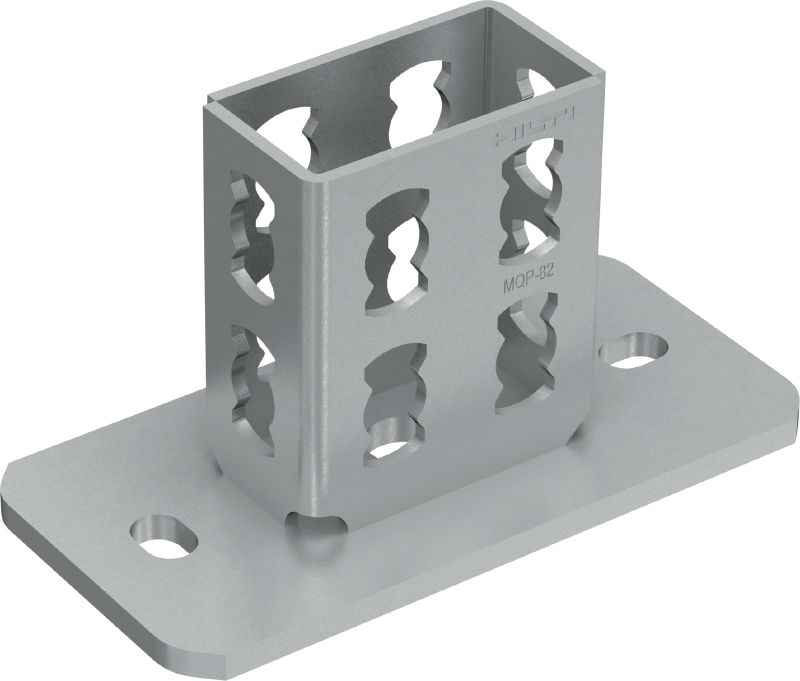

MQP-82 Channel foot
Rail support MQP-82 #369652
Galvanised channel foot for fastening MQ channels to concrete
- Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: Channel connector: 4 mm, Baseplate: 8 mm
Choose options
Pack size
- 8 pc
Quantity
Packs
Total Pieces
8
Discounted net
Technical Data
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Material thickness
Channel connector: 4 mm, Baseplate: 8 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
1890 g
Documents
Features & Applications
Features
- Flexibility – complete many different applications using few parts
- Compatible with push button channel connectors – for much faster, adaptable assembly
Applications
- Connecting strut channels to concrete and steel
- Recommended for use in dry, interior environments
