MQV-3/2 D

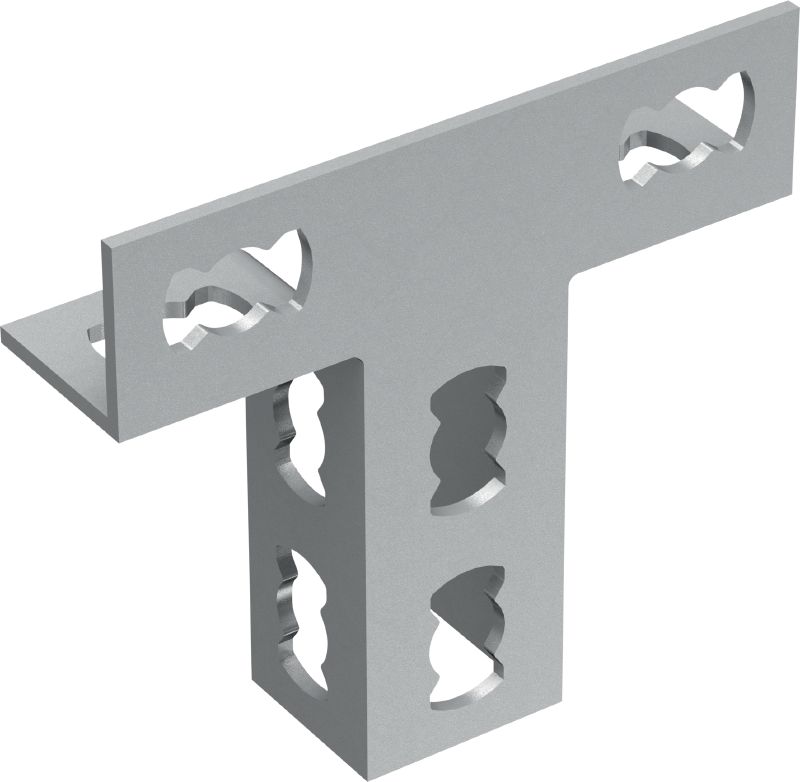

Channel tie MQV-3/2 D #369640
Galvanised flexible channel connector for two-dimensional structures
- Material composition: S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: 4 mm
Choose options
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
Technical Data
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
580 g
Documents
Features & Applications
Features
- Two-dimensional connector – engineered for high load capacity
- Adjustable – easily fit and repositioned along strut channels
- Compatible with push button channel connectors – for much faster, adaptable assembly
Applications
- Connecting two MQ strut channels on the same plane
- Compatible with multiple MQ strut channels
- Recommended for use in dry, interior environments
