MI-PS 2/1 pipe shoes

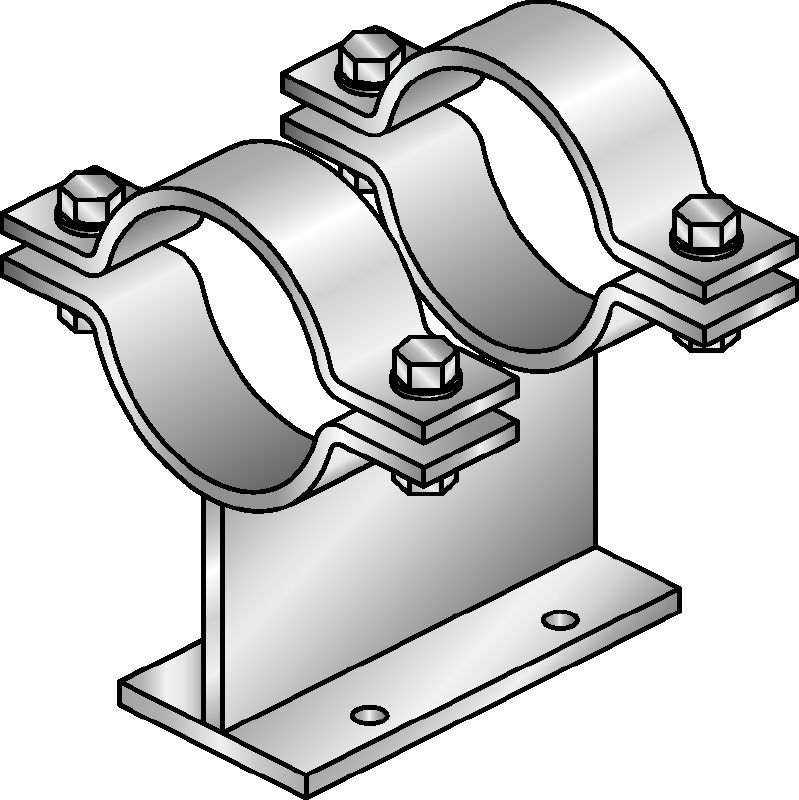

Pipe shoe MI-PS2/1 250-142 #286974
Hot-dip galvanised (HDG) double pipe shoes for fastening DN 25-300 pipes to MI girders in heavy-duty applications
- Weight: 9.9 kg
- Material composition: Connector: S235JRG-2 - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
- Surface finish: HDG: connector 70 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Choose options
Diameter - D
- 273 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
KWD 245.050
KWD 245.050 / 1 each
Technical Data
Weight
9.9 kg
Material composition
Connector: S235JRG-2 - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish
HDG: connector 70 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Clamping screw
M16
Cross section thickness - s
8 mm
Cross section width - b
50 mm
Width - B
100 mm
Height - H
142 mm
X
8.5 mm
Features & Applications
Features
- With mounting holes for installing light-duty fixed points
- Additional diameters available on request
- Easy to fit, low friction
- Heavy-duty version for high loads
Applications

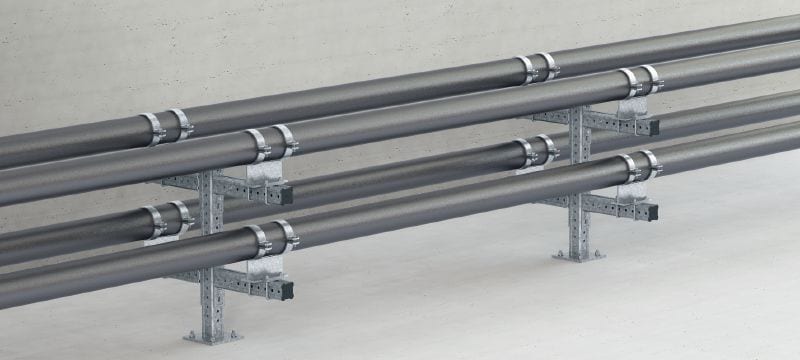

- Fastening pipes, with strap for fixed point, with connector for guide support
- Applications in the chemical, pharma and petrochemical industries or in incineration plants and power stations
- Installing light-duty fixed points
- Heavy-duty version for pipe diameters from DN 25-DN 300
- For pipe diameters from DN 25 to DN 300
